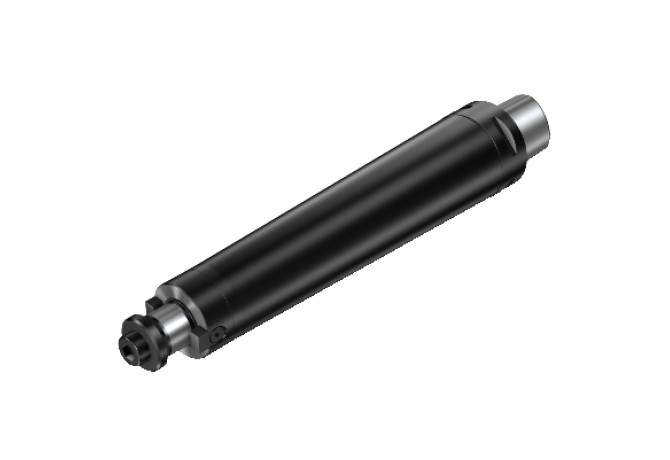

Главная Каталог продукции Sandvik Coromant 401-01 - Converter, rotationally symmetric C6-391.05CD-22 260

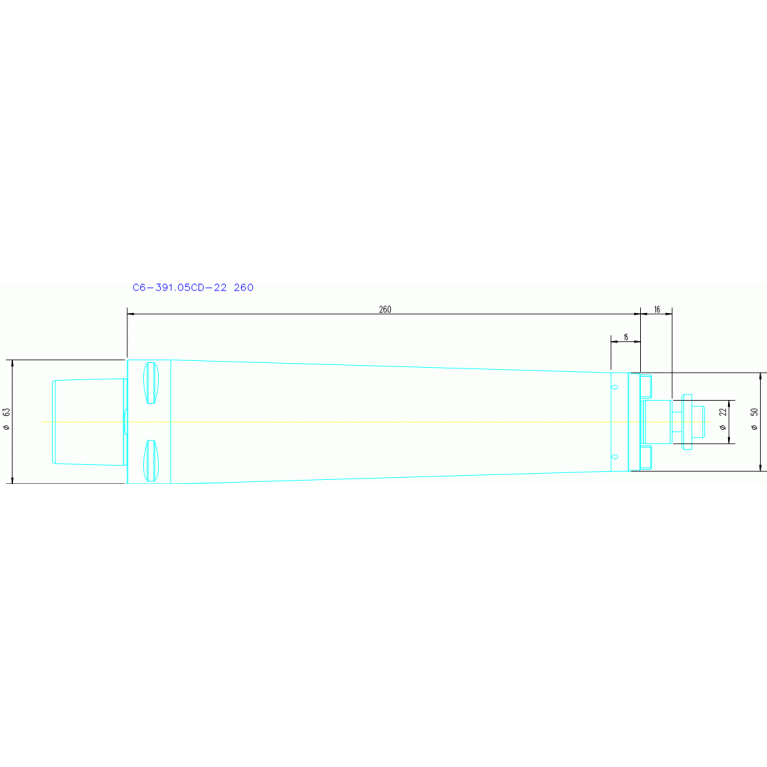

C6-391.05CD-22 260

C6-391.05CD-22 260 C6-391.05CD-22 260 C6-391.05CD-22 260 C6-391.05CD-22 260

C6-391.05CD-22 260

Sandvik Coromant
Артикул: 5915864
В наличии
В корзину
Описание
Характеристики

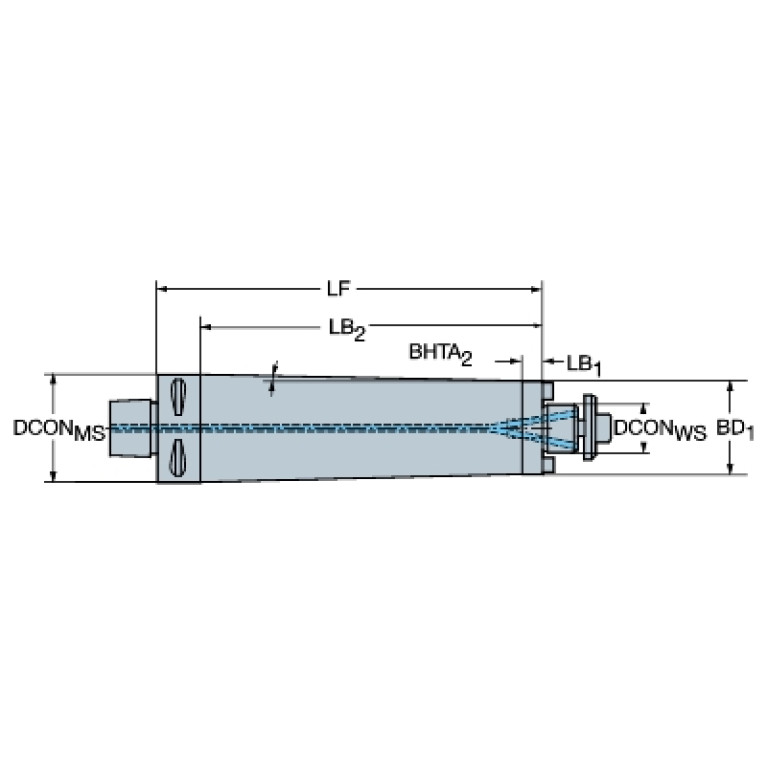

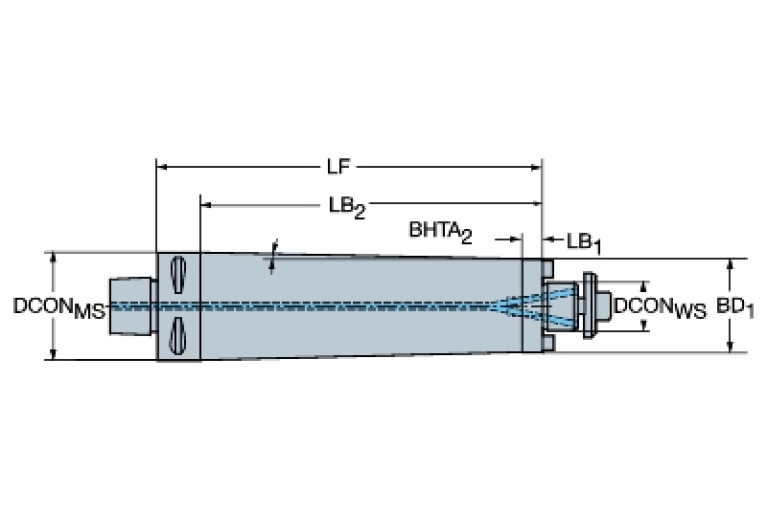

BD (Body diameter 2)
62.066 mm
BD (Body diameter 3)
63 mm
BD (Body diameter)
46.2 mm
BHTA (Body half taper angle 2)
1.5 Degree
BHTA (Body half taper angle 3)
0 Degree
BLDEV (Balancing device)
CCFWS (Connection code form)
12
CCSWS (Connection code style)
CCTWS (Connection code type)
FDA
CCUWS (Connection code unit base)
1
CNSC (Coolant entry style code)
3 - With Coolant entry, axial concentric and radial
CXSC (Coolant exit style code)
4 - With Coolant exit, axial on hole circle
CXSC (Coolant exit style code) / Тип подвода СОЖ
4 - With Coolant exit, axial on hole circle
CZCWS (Connection size code)
0220
DCONWS (Diameter)
22 mm
DCONWS (Diameter) / Диаметр соединения со стороны заготовки
22 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
CCS06300195
HAND (Cutting direction)
N - Neutral
Interface codes
J6 / J61
ISO
CCS01C0630$$$$
LB (Body length 1)
6.9 mm
LB (Length 2)
230.4 mm
LB (Length Body diameter 3)
22.7 mm
LF (Functional length)
260 mm
LOC-01 (CCFWS Connection code form)
12
LOC-01 (CCSWS Connection code style)
0 Hole in machine direction or shaft in workpiece direction
LOC-01 (CCTWS Connection code type)
FDA Milling arbor mounting
LOC-01 (CCUWS Connection code unit base)
1 Metric with coolant
LOC-01 (CZCWS Connection size code)
0220
LOC-01 (DCONWS Diameter)
22 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
FDA02201210
LOC-02 ISO
FDA22G2200****
LOC-02 (DCONWS Diameter)
22 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-03 ISO
CCS01C0630$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
CCS Coromant Capto System SANDVIK
LOC-03 (CCUMS Connection code unit base)
9 non-dimensional size with coolant
LOC-03 (CZCMS Connection size code)
0630
LOC-03 (DCONMS Diameter)
63 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS06300195
OAL (Overall length)
298 mm
Rotation (Rotation indicator)
1 - rotating tool
RPMX (Rotational speed maximum)
6000 1/min
WT (Weight of item)
8 kg
