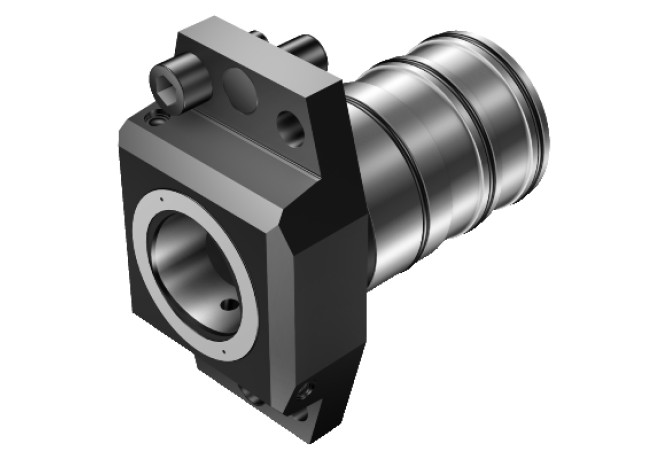

Главная Каталог продукции Sandvik Coromant 401-01 - Converter, rotationally symmetric C5-NC5010-00035

C5-NC5010-00035

C5-NC5010-00035 C5-NC5010-00035 C5-NC5010-00035 C5-NC5010-00035

C5-NC5010-00035

Sandvik Coromant
Артикул: 5727945
В наличии
В корзину
Описание
Характеристики
CCFWS (Connection code form)
01
CCSWS (Connection code style)
5
CCTWS (Connection code type)
CCS
CCUWS (Connection code unit base)
9
CNSC (Coolant entry style code)
4 - With Coolant entry, axial on hole circle
CXSC (Coolant exit style code)
2 - With Coolant exit, radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
2 - With Coolant exit, radial
CZCWS (Connection size code)
0500
DCONWS (Diameter)
55 mm
DCONWS (Diameter) / Диаметр соединения со стороны заготовки
55 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL05500115
HAND (Cutting direction)
N - Neutral
HF (Functional height)
0 mm
Interface codes
J6 / J61
ISO
ZYL01G5500$$$$
LF (Functional length)
35 mm
LOC-01 ISO
CCS01C0500****
LOC-01 (CCFWS Connection code form)
01
LOC-01 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-01 (CCTWS Connection code type)
CCS Coromant Capto System SANDVIK
LOC-01 (CCUWS Connection code unit base)
9 non-dimensional size with coolant
LOC-01 (CZCWS Connection size code)
0500
LOC-01 (DCONWS Diameter)
55 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
CCS05000195
LOC-02 ISO
CCS02C0500****
LOC-02 (CCFWS Connection code form)
01
LOC-02 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-02 (CCTWS Connection code type)
CCS Coromant Capto System SANDVIK
LOC-02 (CCUWS Connection code unit base)
9 non-dimensional size with coolant
LOC-02 (CZCWS Connection size code)
0500
LOC-02 (DCONWS Diameter)
55 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
CCS05000295
LOC-03 ISO
ZYL01G5500$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
1 Metric with coolant
LOC-03 (CZCMS Connection size code)
0550
LOC-03 (DCONMS Diameter)
55 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL05500115

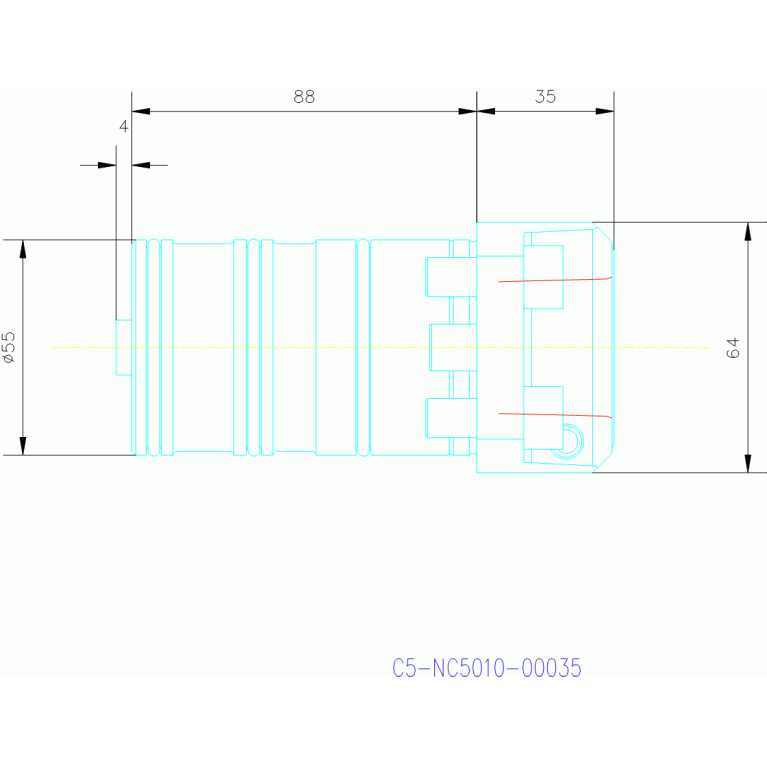

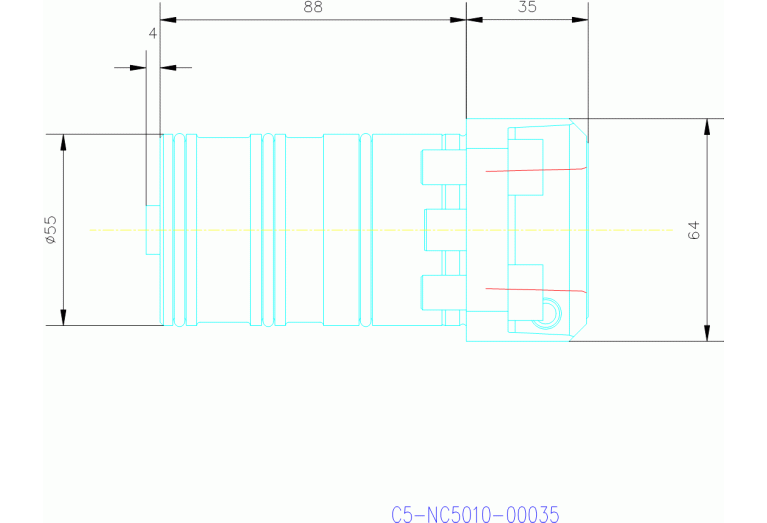

LS (Shank length)
88 mm
LSCX (Clamping length maximum)
88 mm

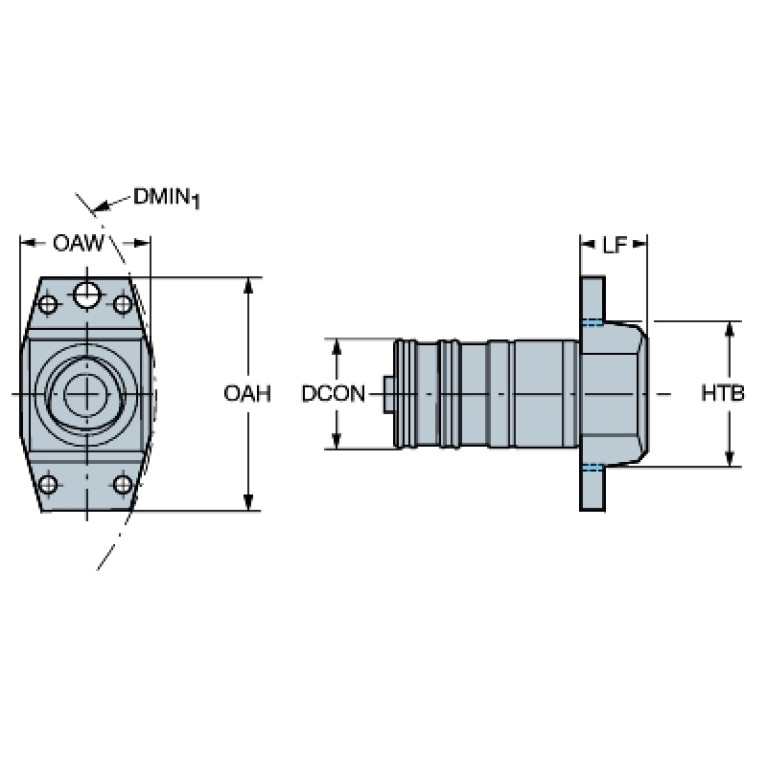

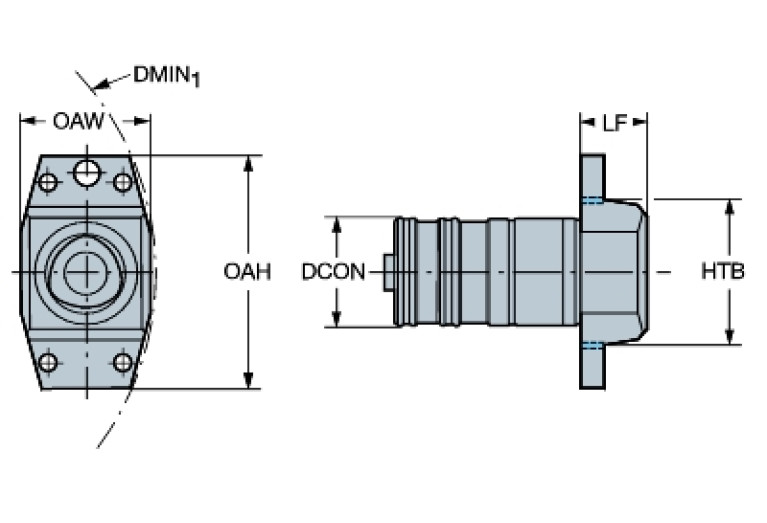

OAH (Overall height)
112 mm
OAL (Overall length)
127 mm
OAW (Overall width)
64 mm
WF (Functional width)
0 mm
WT (Weight of item)
2.59 kg
