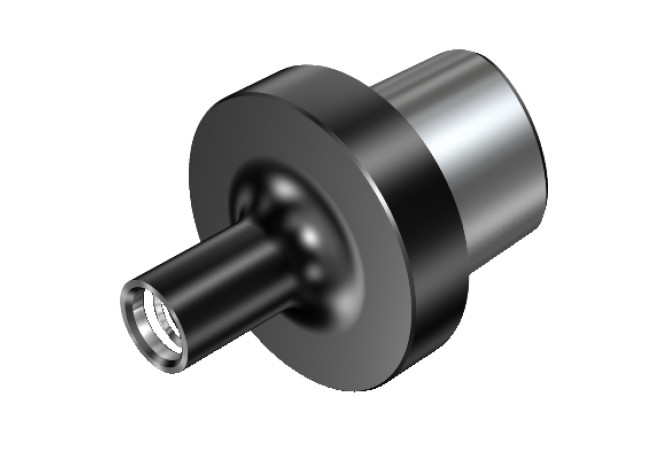

Главная Каталог продукции Sandvik Coromant 401-01 - Converter, rotationally symmetric C5-A391.EH-10 025

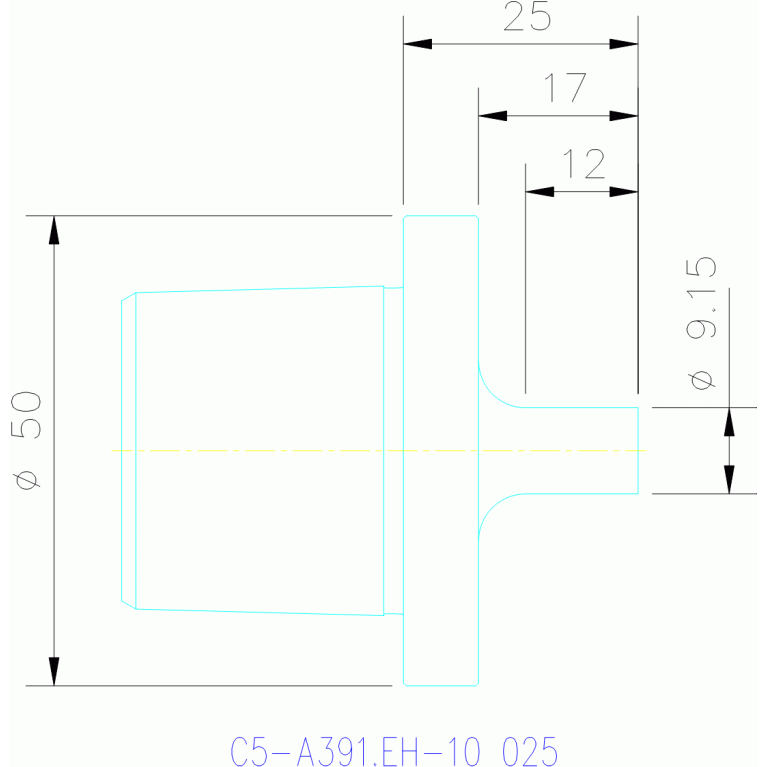

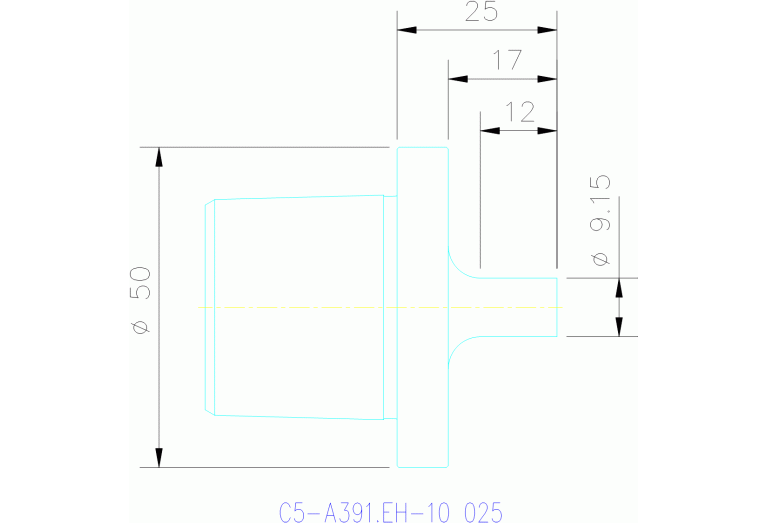

C5-A391.EH-10 025

Артикул: 5914889

В наличии

В корзину

Описание

Характеристики

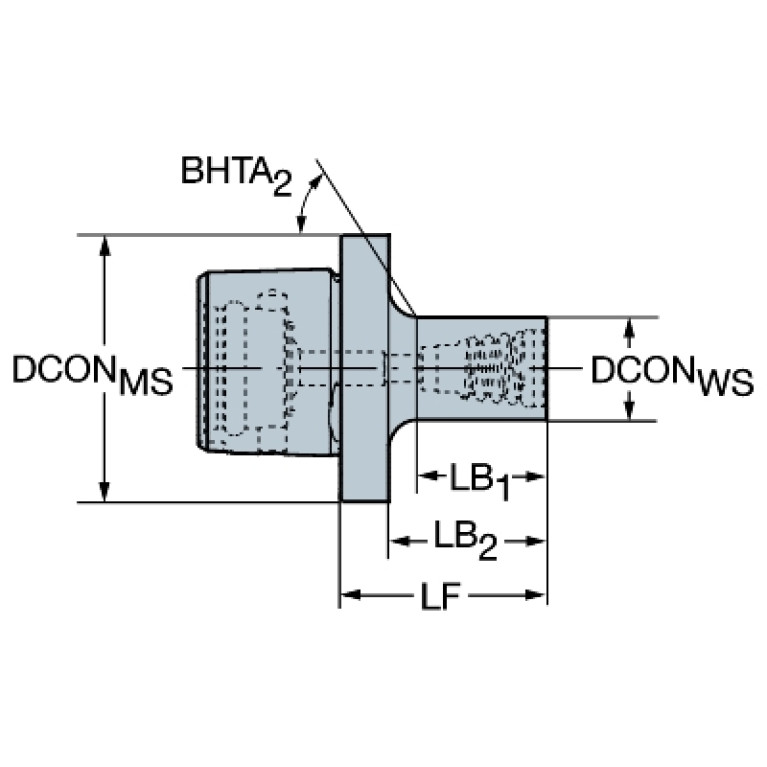

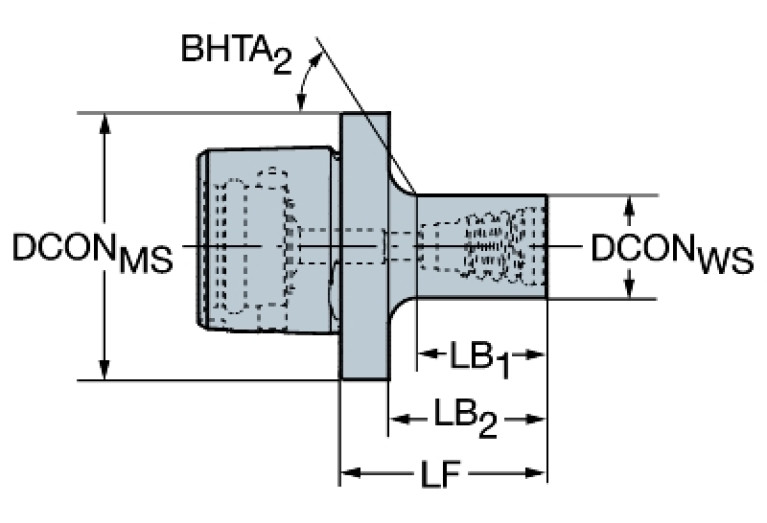

BD (Body diameter 2)

19.15 mm

BHTA (Body half taper angle 2)

45 Degree

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

SAC

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

3 - With Coolant entry, axial concentric and radial

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

0100

DCONWS (Diameter)

9.15 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

9.15 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

CCS05000295

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

CCS02C0500$$$$

LB (Body length 1)

12 mm

LB (Length 2)

5 mm

LF (Functional length)

25 mm

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

SAC Screw mounting SANDVIK Coromant

LOC-01 (CCUWS Connection code unit base)

9 non-dimensional size with coolant

LOC-01 (CZCWS Connection size code)

0100

LOC-01 (DCONWS Diameter)

9.15 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SAC01000495

LOC-02 ISO

SAC04B0100****

LOC-02 (DCONWS Diameter)

9.15 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-03 ISO

CCS02C0500$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0500

LOC-03 (DCONMS Diameter)

50 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS05000295

LPR (Protruding length)

25 mm

OAL (Overall length)

55 mm

RPMX (Rotational speed maximum)

28000 1/min

WT (Weight of item)

0.374 kg

Диаметр корпуса (BD) / Body diameter (BD)

9.15 mm
