Главная Каталог продукции Sandvik Coromant 401-01 - Converter, rotationally symmetric C5-391.60B-03 158A

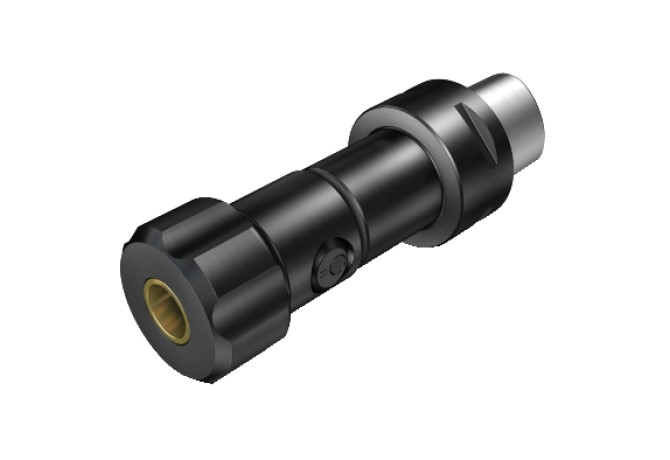

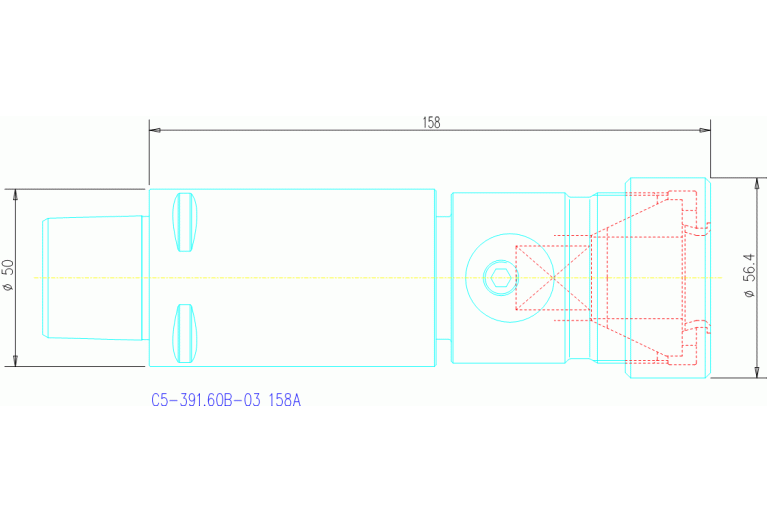

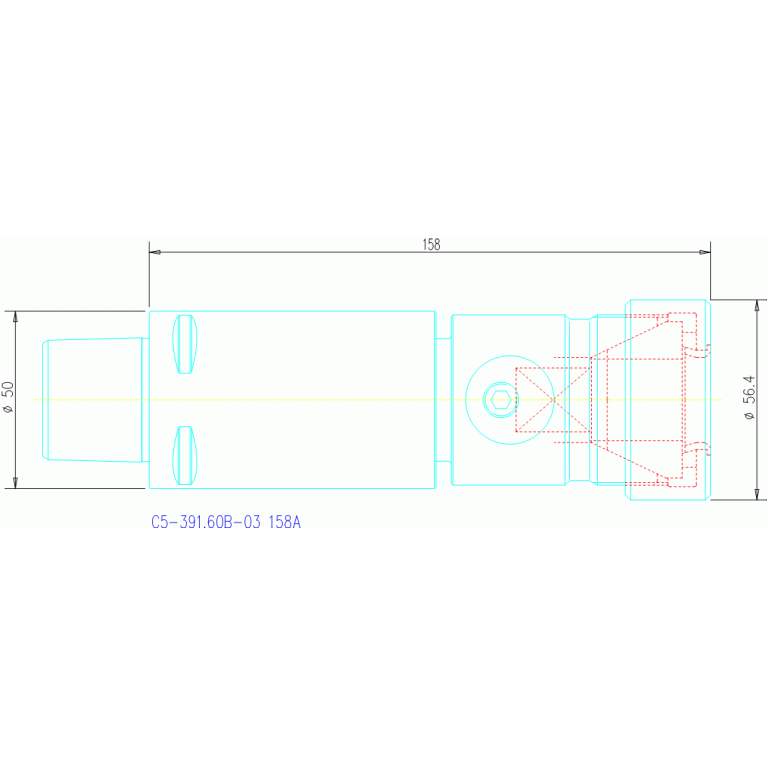

C5-391.60B-03 158A

Артикул: 5729614

В наличии

В корзину

Описание

Характеристики

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

SZD

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

3 - With Coolant entry, axial concentric and radial

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

CZCWS (Connection size code)

0440

DCONWS (Diameter)

50 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

50 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

CCS05000185

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

CCS01C0500$$$$

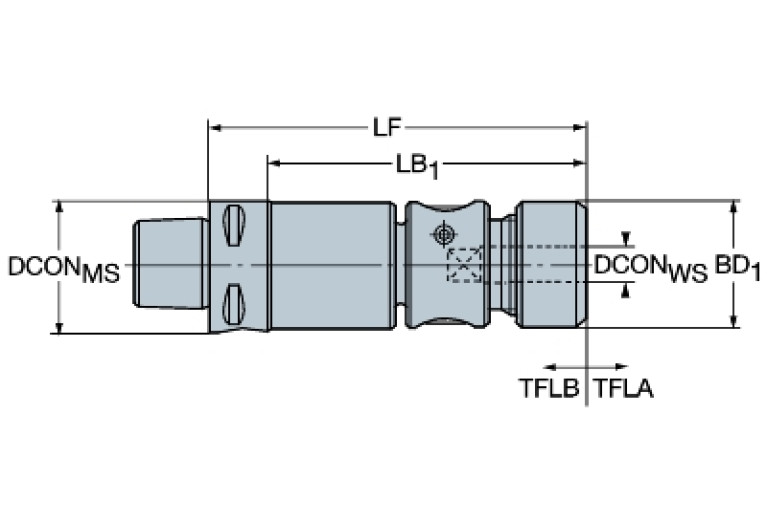

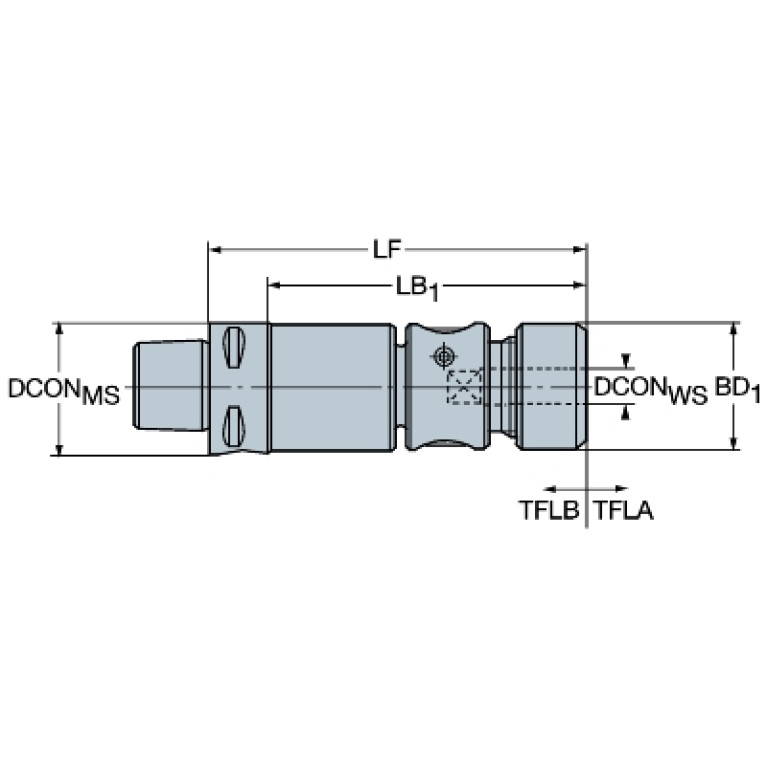

LB (Body length 1)

138 mm

LF (Functional length)

158 mm

LOC-01 ISO

SZD11C0440****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

SZD Collet adapter DIN / ISO

LOC-01 (CCUWS Connection code unit base)

8 non-dimensional size

LOC-01 (CZCWS Connection size code)

0440

LOC-01 (DCONWS Diameter)

50 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SZD04401185

LOC-03 ISO

CCS01C0500$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-03 (CCUMS Connection code unit base)

8 non-dimensional size

LOC-03 (CZCMS Connection size code)

0500

LOC-03 (DCONMS Diameter)

50 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS05000185

LPR (Protruding length)

158 mm

OAL (Overall length)

188 mm

RPMX (Rotational speed maximum)

8000 1/min

WT (Weight of item)

2.02 kg
