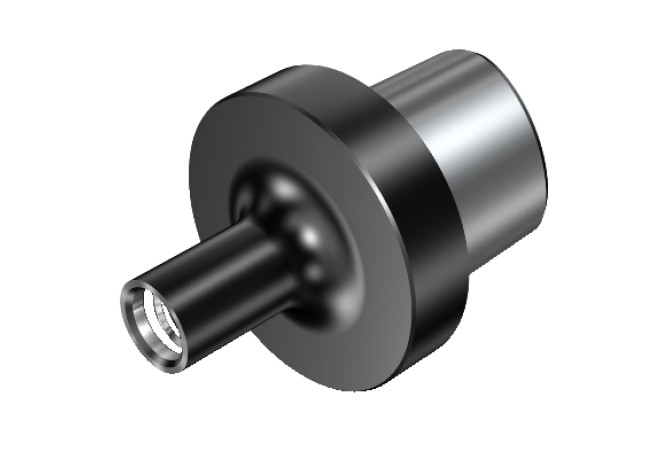

Главная Каталог продукции Sandvik Coromant 401-01 - Converter, rotationally symmetric C4-A391.EH-16 034

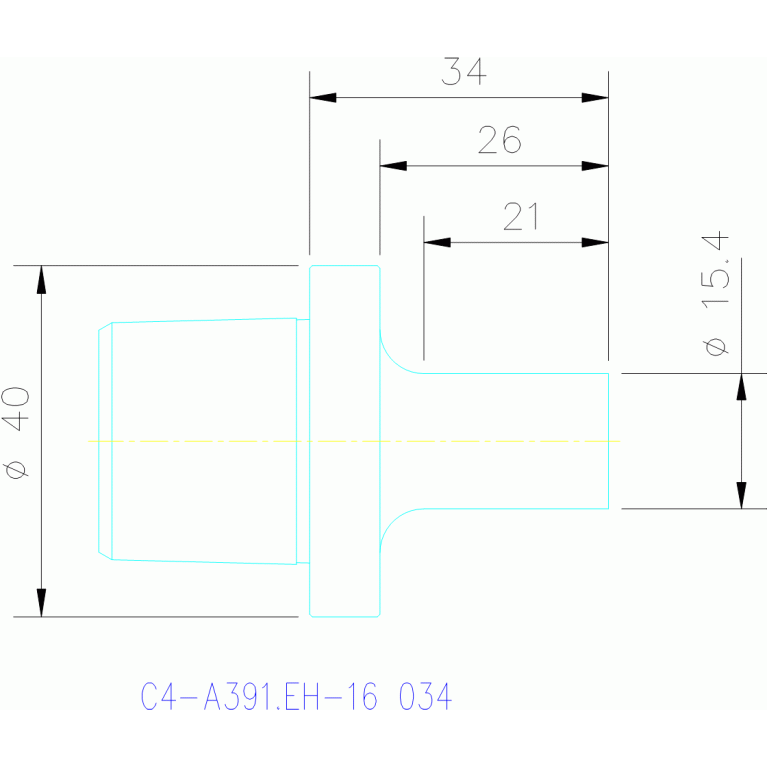

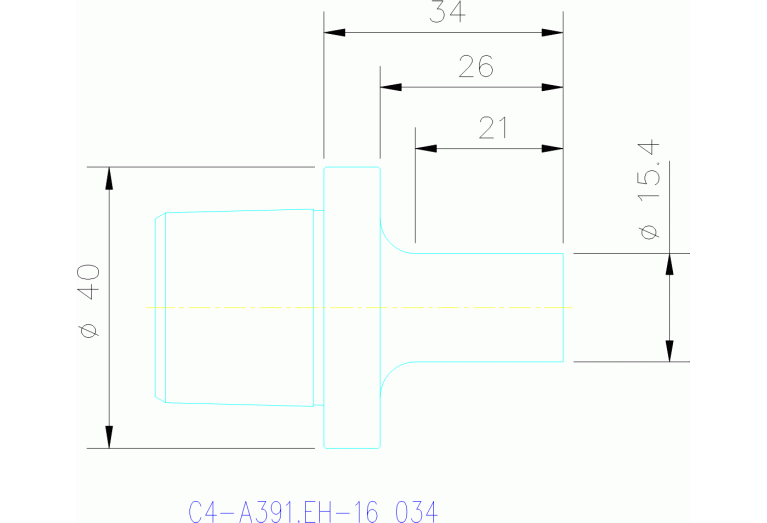

C4-A391.EH-16 034

C4-A391.EH-16 034 C4-A391.EH-16 034 C4-A391.EH-16 034 C4-A391.EH-16 034

C4-A391.EH-16 034

Sandvik Coromant
Артикул: 5850806
В наличии
В корзину
Описание
Характеристики

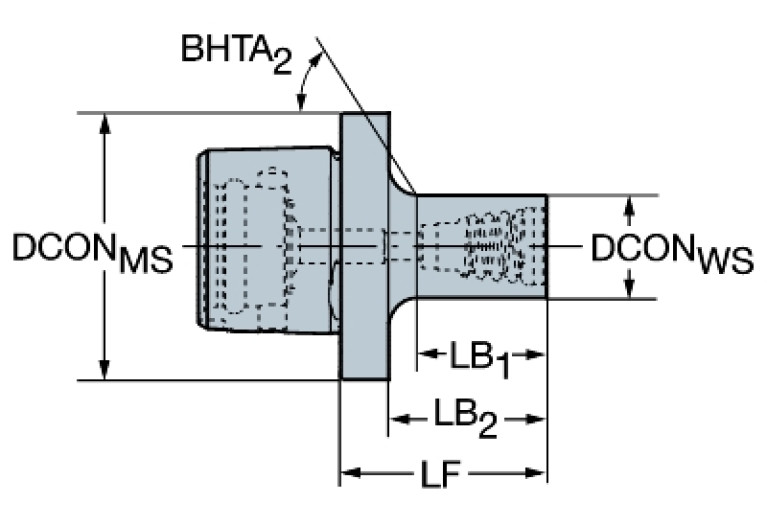

BD (Body diameter 2)
25.4 mm
BD (Body diameter 3)
40 mm
BHTA (Body half taper angle 2)
45 Degree
BHTA (Body half taper angle 3)
0 Degree
BLDEV (Balancing device)
CCFWS (Connection code form)
04
CCSWS (Connection code style)
5
CCTWS (Connection code type)
SAC
CCUWS (Connection code unit base)
9
CNSC (Coolant entry style code)
3 - With Coolant entry, axial concentric and radial
CXSC (Coolant exit style code)
1 - With Coolant exit, axial concentric
CXSC (Coolant exit style code) / Тип подвода СОЖ
1 - With Coolant exit, axial concentric
CZCWS (Connection size code)
0160
DCONWS (Diameter)
15.4 mm
DCONWS (Diameter) / Диаметр соединения со стороны заготовки
15.4 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
CCS04000295
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
CCS02C0400$$$$
LB (Body length 1)
21 mm
LB (Length 2)
5 mm
LB (Length Body diameter 3)
8 mm
LF (Functional length)
34 mm
LOC-01 (CCFWS Connection code form)
04
LOC-01 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-01 (CCTWS Connection code type)
SAC Screw mounting SANDVIK Coromant
LOC-01 (CCUWS Connection code unit base)
9 non-dimensional size with coolant
LOC-01 (CZCWS Connection size code)
0160
LOC-01 (DCONWS Diameter)
15.4 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SAC01600495
LOC-02 ISO
SAC04B0160****
LOC-02 (DCONWS Diameter)
15.4 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-03 ISO
CCS02C0400$$$$
LOC-03 (CCFMS Connection code form)
02
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
CCS Coromant Capto System SANDVIK
LOC-03 (CCUMS Connection code unit base)
9 non-dimensional size with coolant
LOC-03 (CZCMS Connection size code)
0400
LOC-03 (DCONMS Diameter)
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS04000295
OAL (Overall length)
58 mm
Rotation (Rotation indicator)
1 - rotating tool
RPMX (Rotational speed maximum)
39000 1/min
WT (Weight of item)
0.314 kg
Диаметр корпуса (BD) / Body diameter (BD)
15.4 mm
