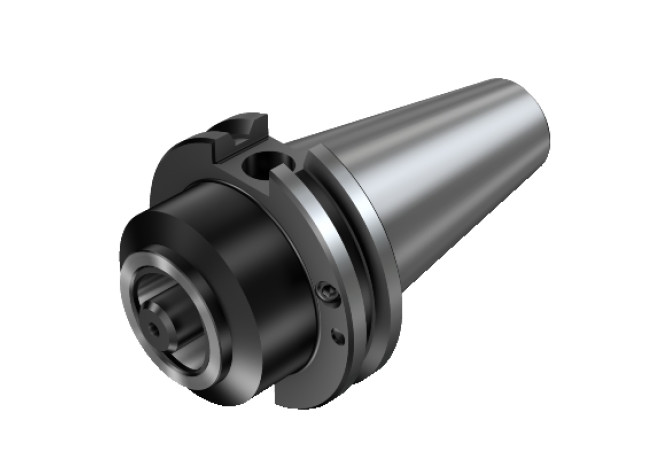

Главная Каталог продукции Sandvik Coromant 401-01 - Converter, rotationally symmetric C4-A390.455-40 040

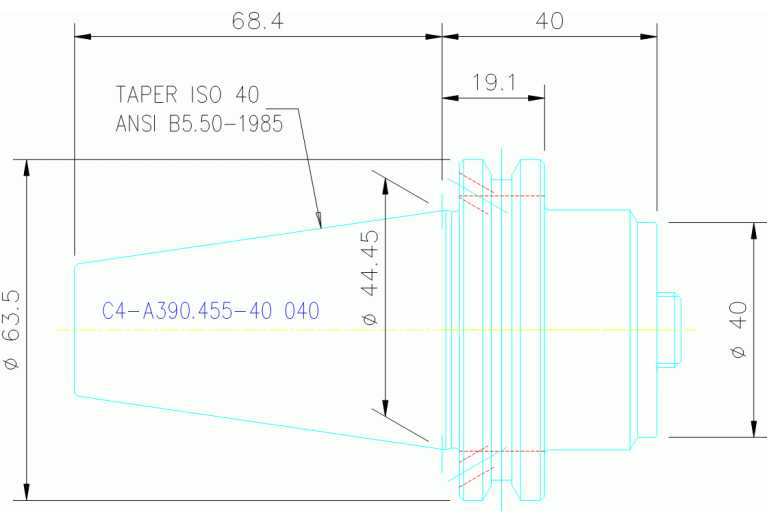

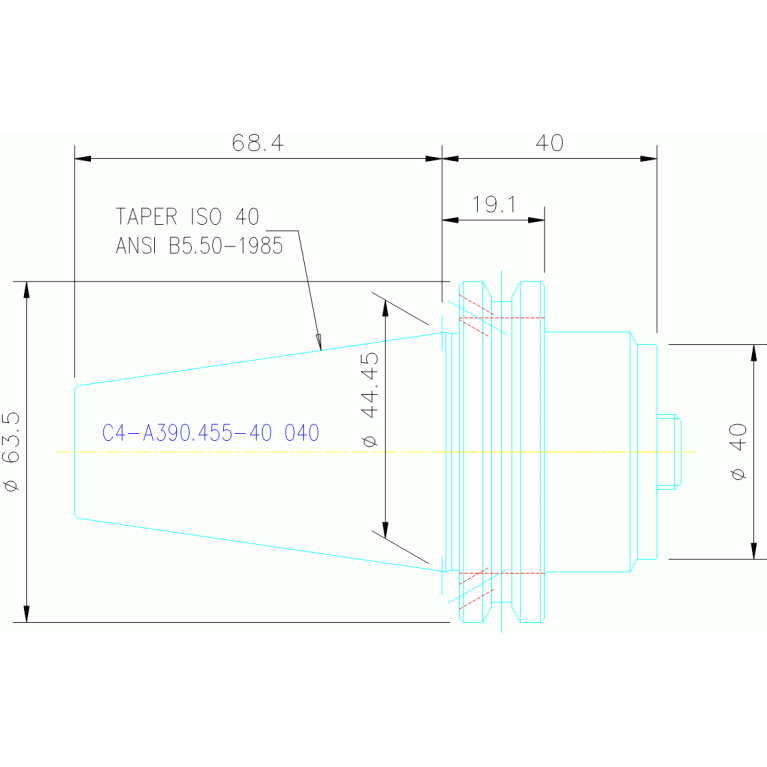

C4-A390.455-40 040

Артикул: 5727293

В наличии

В корзину

Описание

Характеристики

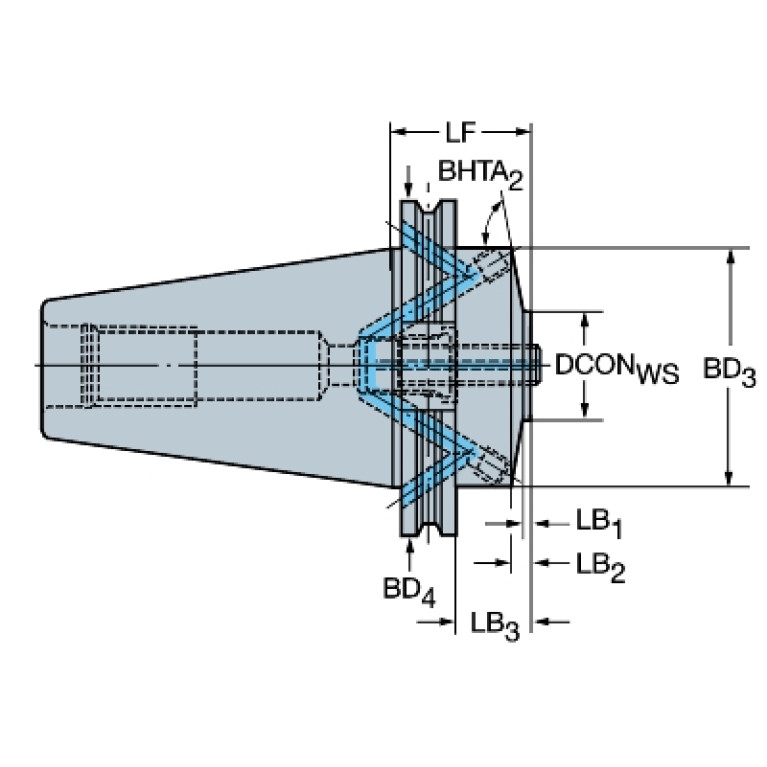

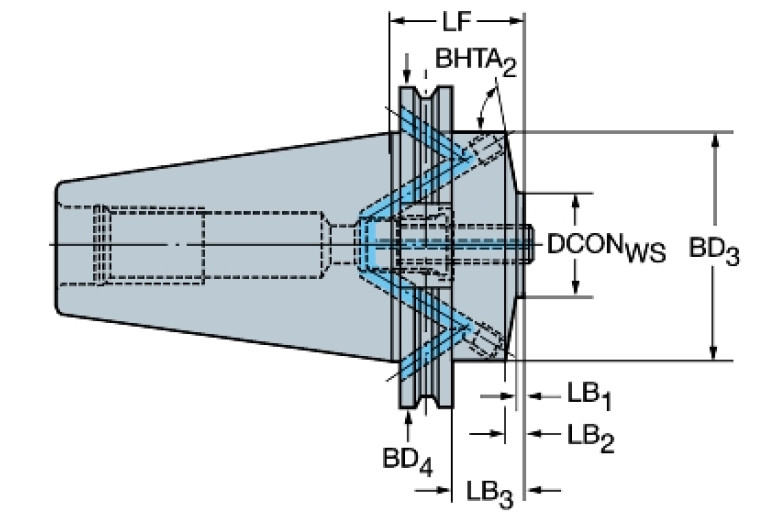

BD (Body diameter 2)

44.85 mm

BD (Body diameter 3)

44.7 mm

BD (Body diameter 4)

63.5 mm

BD (Body diameter)

40 mm

BHTA (Body half taper angle 2)

60 Degree

BHTA (Body half taper angle 3)

0 Degree

BHTA (Body half taper angle 4)

0 Degree

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

CCS

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

6 - With coolant supply (discharge), peripheral/decentralized via flange

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

0400

DCONWS (Diameter)

40 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

40 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DF (Flange diameter)

63.5 mm

DIN

SKG04003695

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

SKG36C0400$$$$

LB (Body length 1)

3.6 mm

LB (Length 2)

1.4 mm

LB (Length Body diameter 3)

15.9 mm

LB (Length Body diameter 4)

19.1 mm

LF (Functional length)

40.005 mm

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-01 (CCUWS Connection code unit base)

9 non-dimensional size with coolant

LOC-01 (CZCWS Connection size code)

0400

LOC-01 (DCONWS Diameter)

40 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

CCS04000395

LOC-02 ISO

CCS03C0400****

LOC-02 (DCONWS Diameter)

40 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-03 ISO

SKG36C0400$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

SKG steep taper shank

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0400

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG04003695

OAL (Overall length)

108.405 mm

Rotation (Rotation indicator)

1 - rotating tool

WT (Weight of item)

0.991 kg
