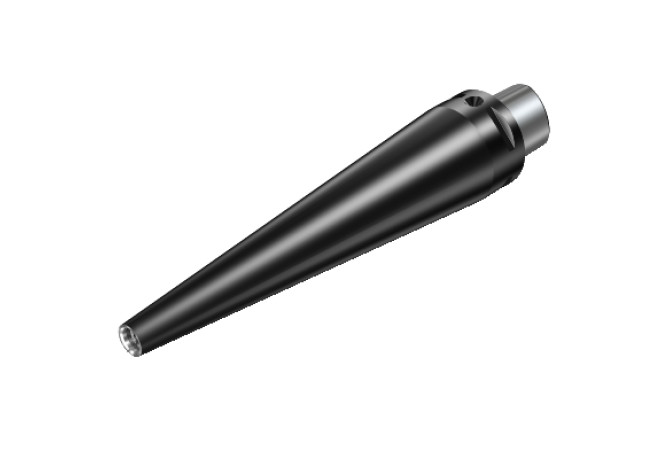

Главная Каталог продукции Sandvik Coromant 401-01 - Converter, rotationally symmetric C3-391.EH-12 132

C3-391.EH-12 132

Артикул: 6048697

В наличии

В корзину

Описание

Характеристики

BD (Body diameter 2)

32 mm

BD (Body diameter)

32.072 mm

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

SAC

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

3 - With Coolant entry, axial concentric and radial

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

0120

DCINTF (Interference cutting diameter)

11.6 mm

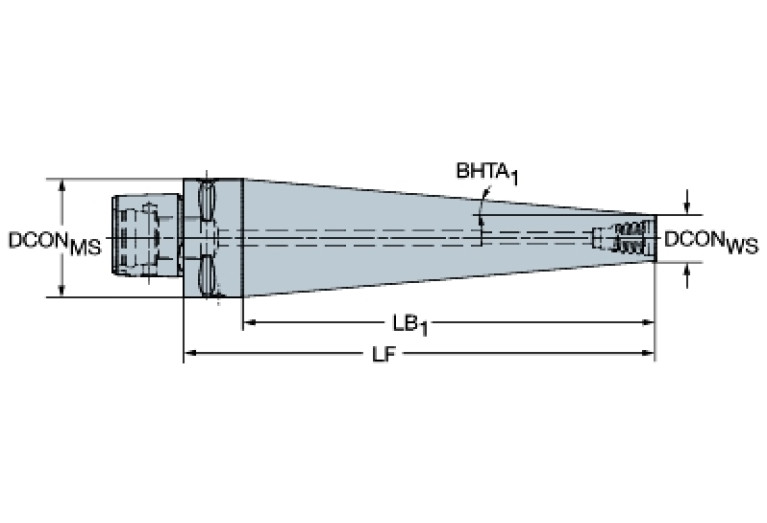

DCONWS (Diameter)

32 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

32 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

CCS03200195

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

CCS01C0320$$$$

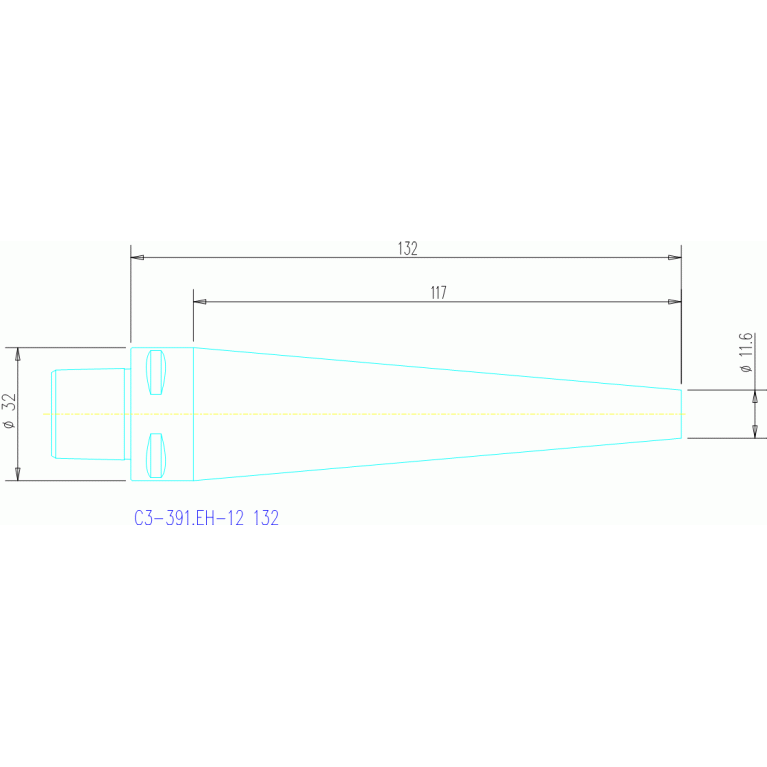

LB (Body length 1)

117 mm

LB (Length 2)

15 mm

LF (Functional length)

132 mm

LPR (Protruding length)

132 mm

OAL (Overall length)

151 mm

RPMX (Rotational speed maximum)

40000 1/min

TA (Taper angle)

5 Degree

WT (Weight of item)

0.462 kg
