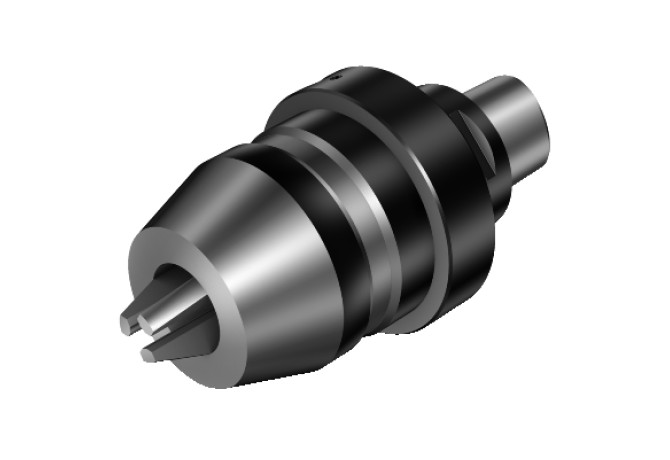

Главная Каталог продукции Sandvik Coromant 401-01 - Converter, rotationally symmetric C3-391.31-10 083M

C3-391.31-10 083M

C3-391.31-10 083M C3-391.31-10 083M C3-391.31-10 083M C3-391.31-10 083M

C3-391.31-10 083M

Sandvik Coromant
Артикул: 5727008
В наличии
В корзину
Описание
Характеристики
BD (Body diameter 2)
44 mm
BD (Body diameter 3)
52 mm
BD (Body diameter)
43.976 mm
BHTA (Body half taper angle 2)
0 Degree
BHTA (Body half taper angle 3)
0 Degree
BLDEV (Balancing device)
CCFWS (Connection code form)
01
CCSWS (Connection code style)
6
CCTWS (Connection code type)
ZYL
CCUWS (Connection code unit base)
CNSC (Coolant entry style code)
0 - Without coolant entry
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
CZCWS (Connection size code)
0010
DCONWS (Diameter)
1 mm
DCONWS (Diameter) / Диаметр соединения со стороны заготовки
1 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
CCS03200185
HAND (Cutting direction)
N - Neutral
Interface codes
J6 / J61
ISO
CCS01C0320$$$$
LB (Body length 1)
18 mm
LB (Length 2)
24 mm
LB (Length Body diameter 3)
30 mm
LF (Functional length)
72 mm
LOC-01 (CCFWS Connection code form)
01
LOC-01 (CCSWS Connection code style)
6 Adjustable shaft in machine direction or adjustable hole in workpiece direction
LOC-01 (CCTWS Connection code type)
ZYL cylindrical shank
LOC-01 (CCUWS Connection code unit base)
0 Metric
LOC-01 (CZCWS Connection size code)
0010
LOC-01 (DCONWS Diameter)
1 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL00100105
LOC-02 ISO
ZYL01R0393****ZYL01R3937****
LOC-02 (DCONWS Diameter)
10 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-03 ISO
CCS01C0320$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
CCS Coromant Capto System SANDVIK
LOC-03 (CCUMS Connection code unit base)
8 non-dimensional size
LOC-03 (CZCMS Connection size code)
0320
LOC-03 (DCONMS Diameter)
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS03200185
OAL (Overall length)
91 mm
Rotation (Rotation indicator)
1 - rotating tool
WT (Weight of item)
0.4 kg
