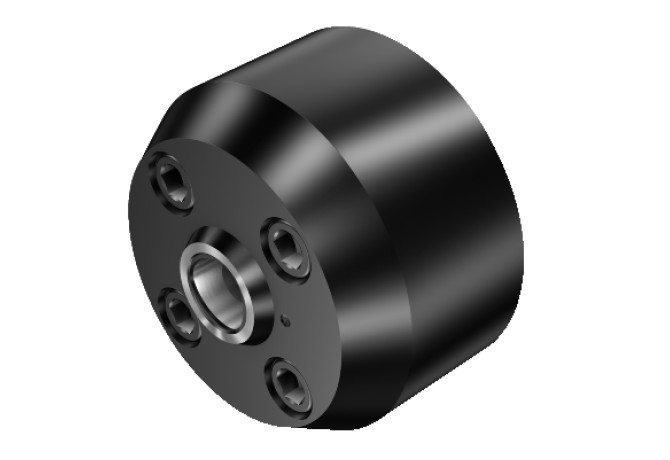

Главная Каталог продукции Sandvik Coromant 401-01 - Converter, rotationally symmetric C3-390.34705-40 060

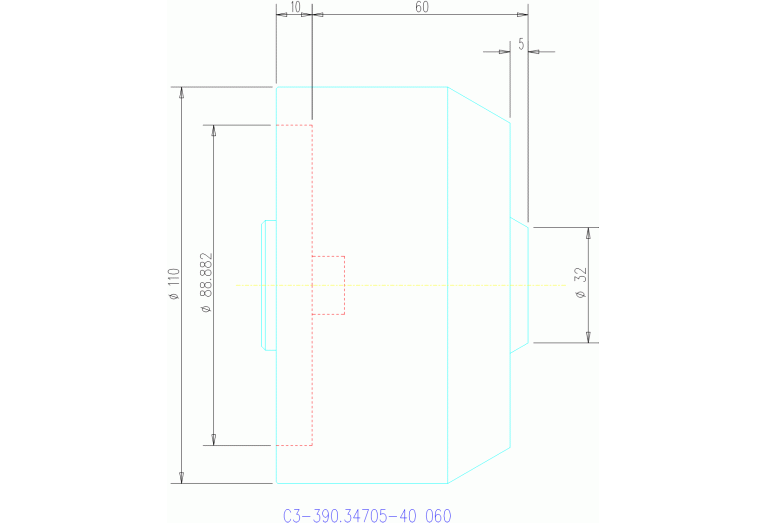

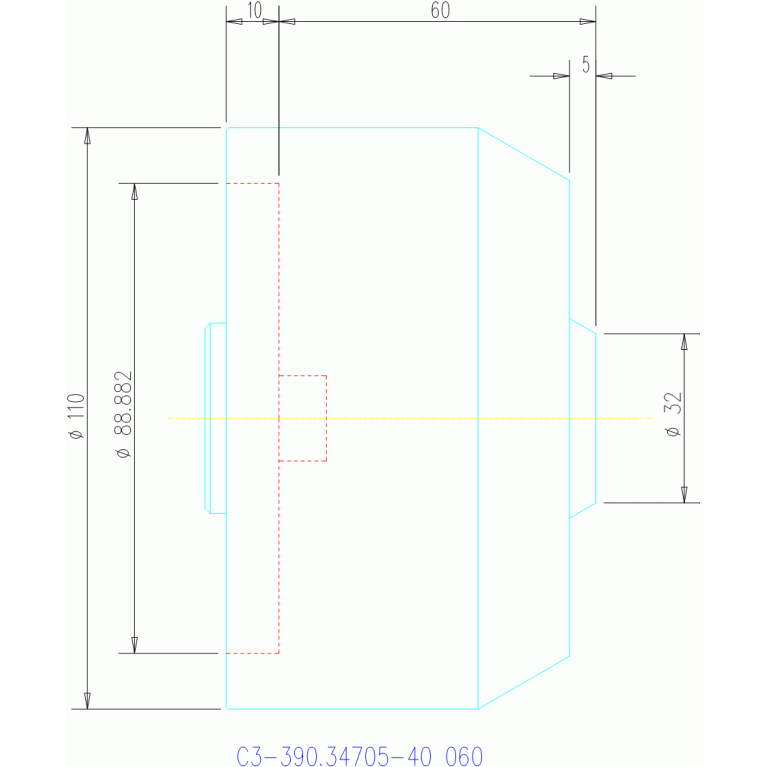

C3-390.34705-40 060

Артикул: 5726951

В наличии

В корзину

Описание

Характеристики

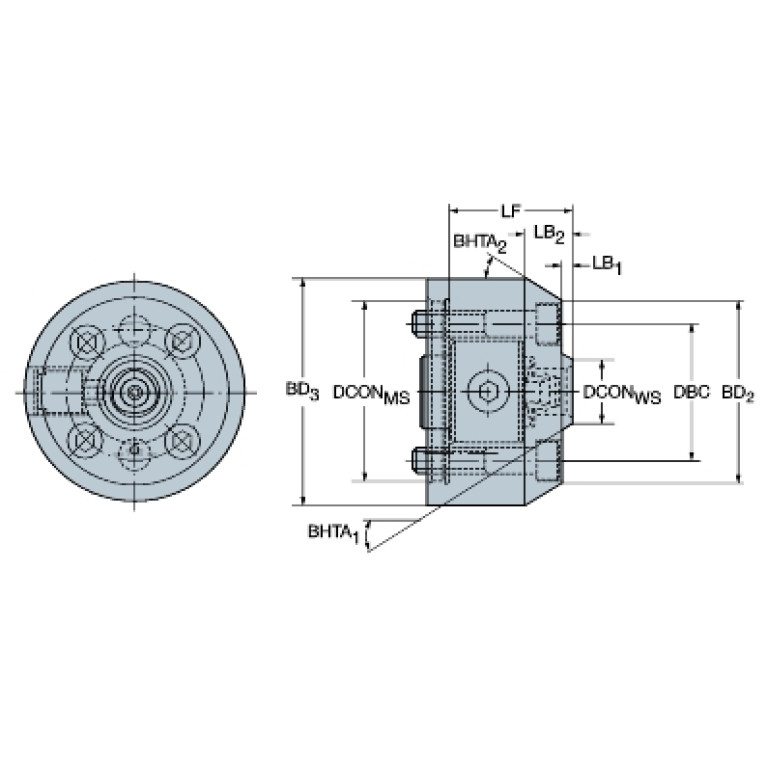

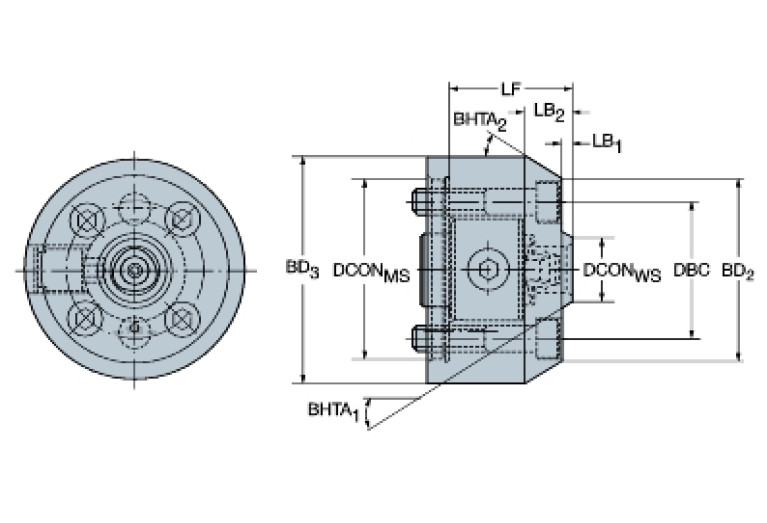

BD (Body diameter 2)

109.976 mm

BD (Body diameter 3)

110 mm

BD (Body diameter)

37.774 mm

BHTA (Body half taper angle 2)

30 Degree

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

CCS

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

CZCWS (Connection size code)

0320

DBHC (Diameter bolt hole circle)

66.7 mm

DCINTF (Interference cutting diameter)

32 mm

DCONWS (Diameter)

88.88 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

88.88 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

SPK08880103

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

SPK01G8888$$$$

LB (Body length 1)

5 mm

LB (Length 2)

17.3 mm

LB (Length Body diameter 3)

37.7 mm

LF (Functional length)

60 mm

LOC-01 ISO

CCS03C0320****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-01 (CCUWS Connection code unit base)

8 non-dimensional size

LOC-01 (CZCWS Connection size code)

0320

LOC-01 (DCONWS Diameter)

88.88 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

CCS03200385

LOC-02 ISO

CCS01C0320****

LOC-02 (CCFWS Connection code form)

LOC-02 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-02 (CCTWS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-02 (CCUWS Connection code unit base)

8 non-dimensional size

LOC-02 (CZCWS Connection size code)

0320

LOC-02 (DCONWS Diameter)

88.88 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

CCS03200185

LOC-03 ISO

SPK01G8888$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

3 Hole pattern (through bore) machine side or hole pattern (threaded hole) machine side or

LOC-03 (CCTMS Connection code type)

SPK Spindle nose mounting

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0888

LOC-03 (DCONMS Diameter)

88.88 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SPK08880103

LPR (Protruding length)

60 mm

OAL (Overall length)

70 mm

TA (Taper angle)

30 Degree

WT (Weight of item)

4.009 kg
