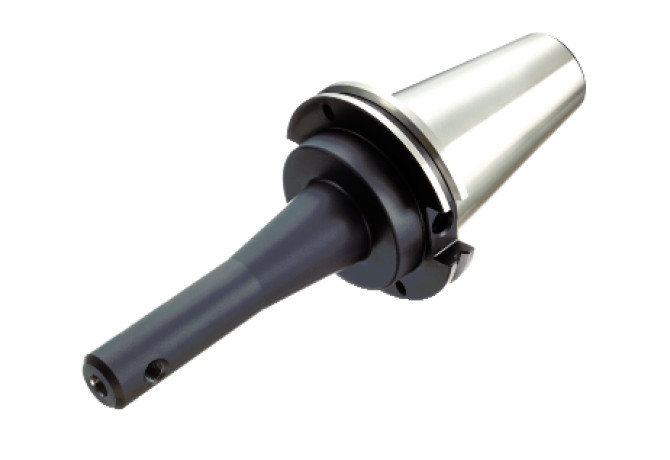

Главная Каталог продукции Sandvik Coromant 401-01 - Converter, rotationally symmetric AA3B20-50 13 168

AA3B20-50 13 168

Артикул: 5721213

В наличии

В корзину

Описание

Характеристики

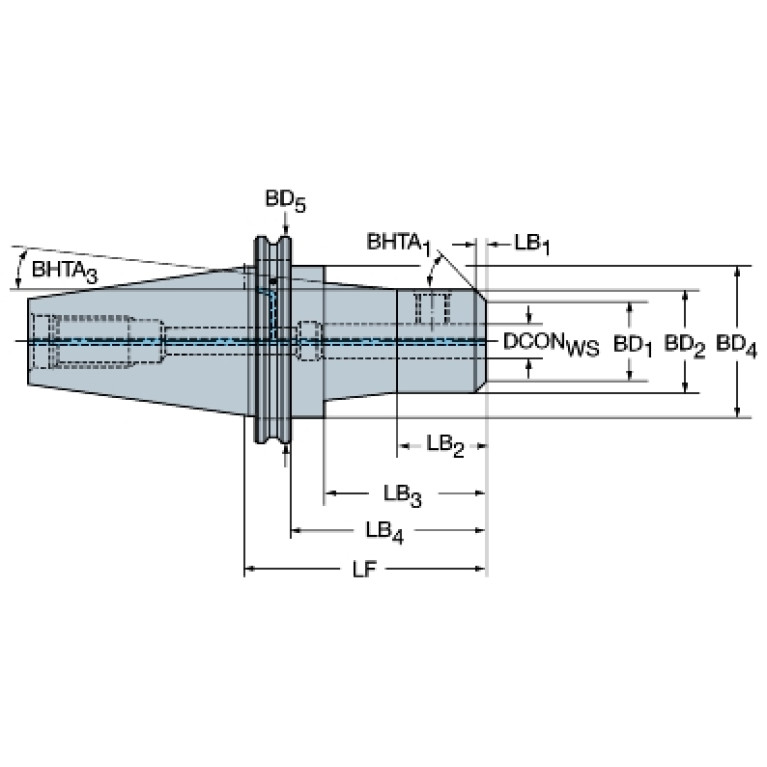

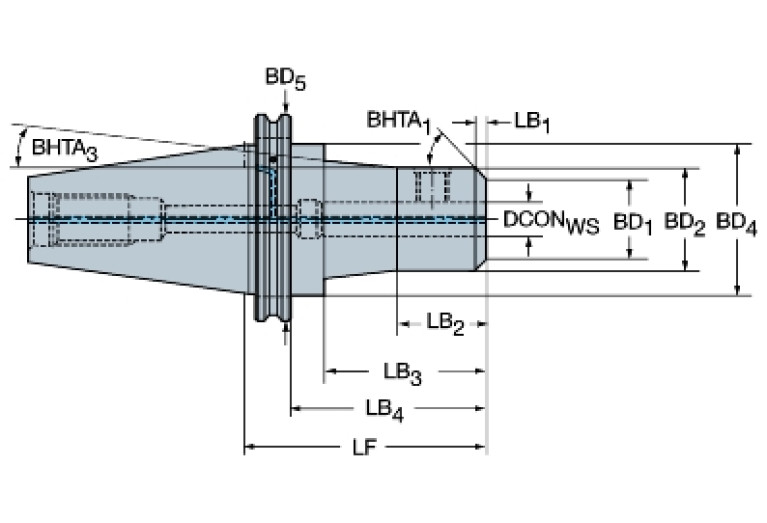

BD (Body diameter 2)

31.8 mm

BD (Body diameter 3)

44.987 mm

BD (Body diameter 4)

69.8 mm

BD (Body diameter)

31.6 mm

BHTA (Body half taper angle 3)

7 Degree

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

ZYL

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

7 - Coolant entry, decentral and axially concentric

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

0500

DCINTF (Interference cutting diameter)

22.4 mm

DCONWS (Diameter)

12.7 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

12.7 mm

DCP (Data chip provision)

1 - With data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DF (Flange diameter)

98.42 mm

DIN

SKG05003795

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

SKG37C0500$$$$

LB (Body length 1)

4.6 mm

LB (Length 2)

74.9 mm

LB (Length Body diameter 3)

53.7 mm

LB (Length Body diameter 4)

16 mm

LF (Functional length)

168.275 mm

LOC-01 ISO

ZYL18G1270****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

ZYL cylindrical shank

LOC-01 (CCUWS Connection code unit base)

3 Inch with coolant

LOC-01 (CZCWS Connection size code)

0500

LOC-01 (DCONWS Diameter)

12.7 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL05001035

LOC-02 ISO

ZYL10G1270****

LOC-02 (CCFWS Connection code form)

LOC-02 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-02 (CCTWS Connection code type)

ZYL cylindrical shank

LOC-02 (CCUWS Connection code unit base)

3 Inch with coolant

LOC-02 (CZCWS Connection size code)

0500

LOC-02 (DCONWS Diameter)

12.7 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

ZYL01271015

LOC-03 ISO

SKG37C0500$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

SKG steep taper shank

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0500

LOC-03 (DCONMS Diameter)

12.7 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG05003795

LPR (Protruding length)

168.275 mm

LS (Shank length)

48 mm

LSCX (Clamping length maximum)

48 mm

OAL (Overall length)

270.075 mm

RPMX (Rotational speed maximum)

12000 1/min

TA (Taper angle)

45 Degree

WT (Weight of item)

3.894 kg
