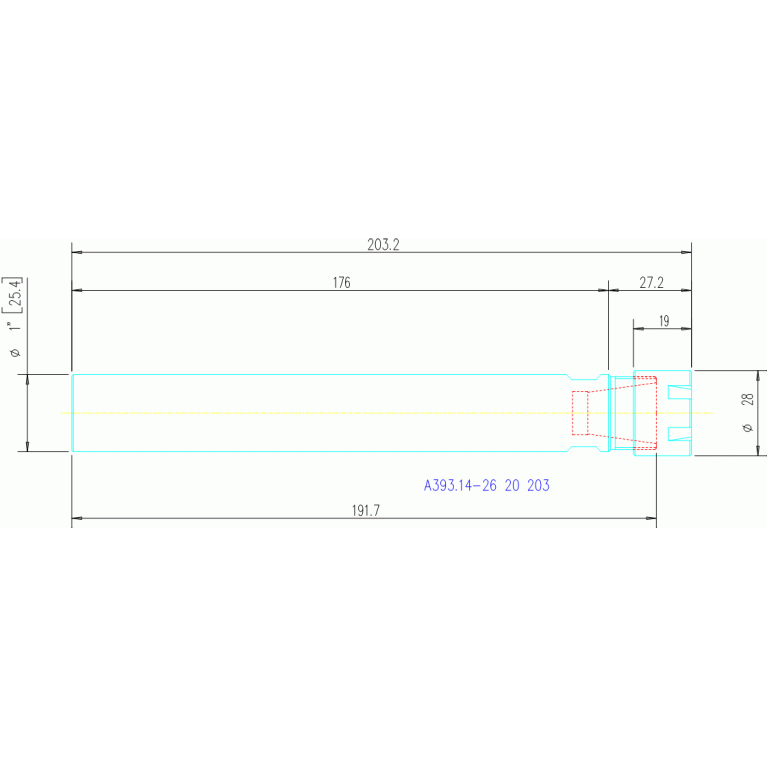

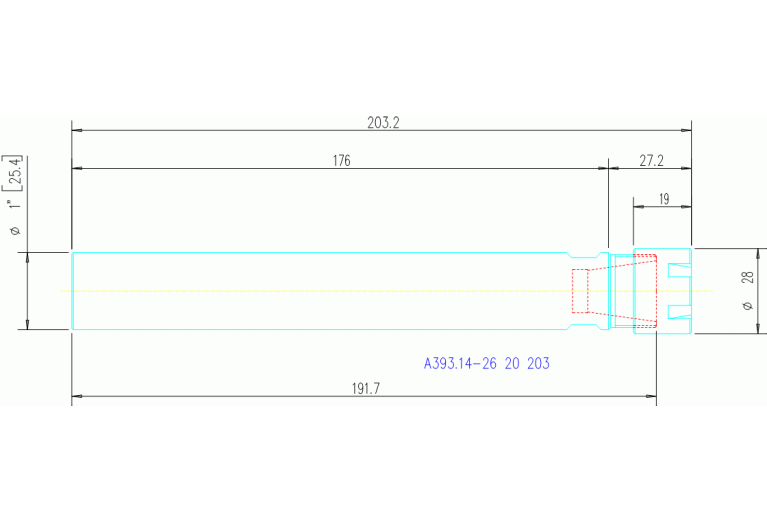

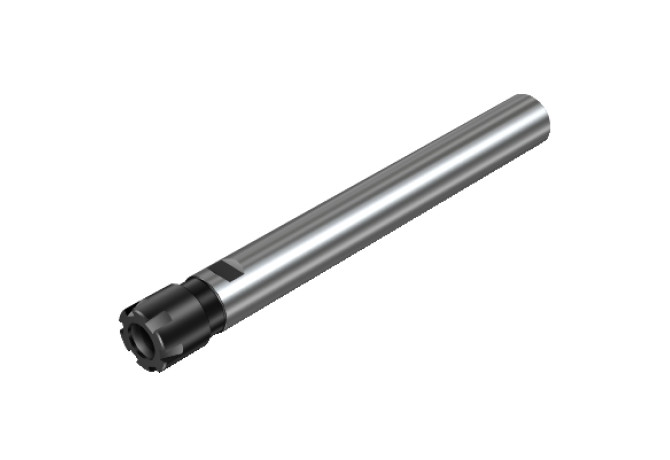

Главная Каталог продукции Sandvik Coromant 401-01 - Converter, rotationally symmetric A393.14-26 20 203

A393.14-26 20 203

A393.14-26 20 203 A393.14-26 20 203 A393.14-26 20 203 A393.14-26 20 203

A393.14-26 20 203

Sandvik Coromant
Артикул: 5723053
В наличии
В корзину
Описание
Характеристики
BLDEV (Balancing device)
CCFWS (Connection code form)
02
CCSWS (Connection code style)
5
CCTWS (Connection code type)
SZD
CCUWS (Connection code unit base)
9
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
1 - With Coolant exit, axial concentric
CXSC (Coolant exit style code) / Тип подвода СОЖ
1 - With Coolant exit, axial concentric
CZCWS (Connection size code)
0200

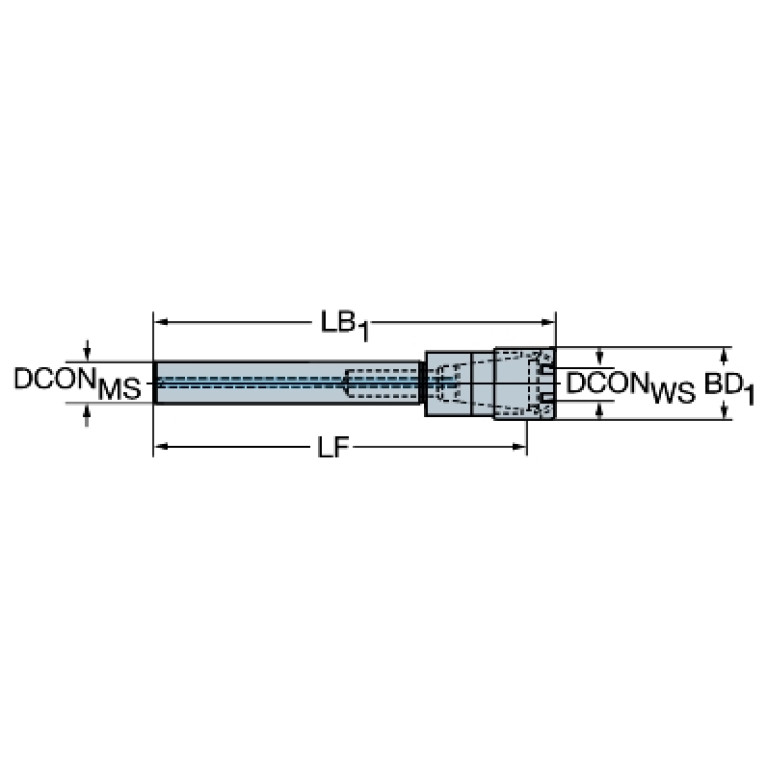

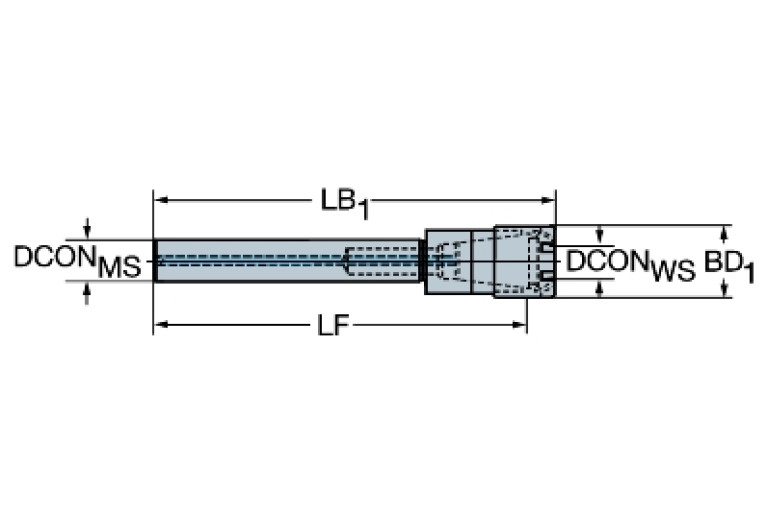

DCONWS (Diameter)
25.4 mm
DCONWS (Diameter) / Диаметр соединения со стороны заготовки
25.4 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
ZYL10000135
DLN (Diameter lock nut)
28 mm
HAND (Cutting direction)
N - Neutral
Interface codes
J6 / J61
ISO
ZYL01S1000$$$$
LB (Body length 1)
173.631 mm
LF (Functional length)
191 mm
LOC-01 ISO
SZD02C0200****
LOC-01 (CCFWS Connection code form)
02
LOC-01 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-01 (CCTWS Connection code type)
SZD Collet adapter DIN / ISO
LOC-01 (CCUWS Connection code unit base)
9 non-dimensional size with coolant
LOC-01 (CZCWS Connection size code)
0200
LOC-01 (DCONWS Diameter)
25.4 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SZD02000295
LOC-03 ISO
ZYL01S1000$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
3 Inch with coolant
LOC-03 (CZCMS Connection size code)
1000
LOC-03 (DCONMS Diameter)
25.4 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL10000135
LPR (Protruding length)
203.2 mm
LS (Shank length)
161 mm
LSCX (Clamping length maximum)
161 mm
OAL (Overall length)
203 mm
WT (Weight of item)
0.52 kg
