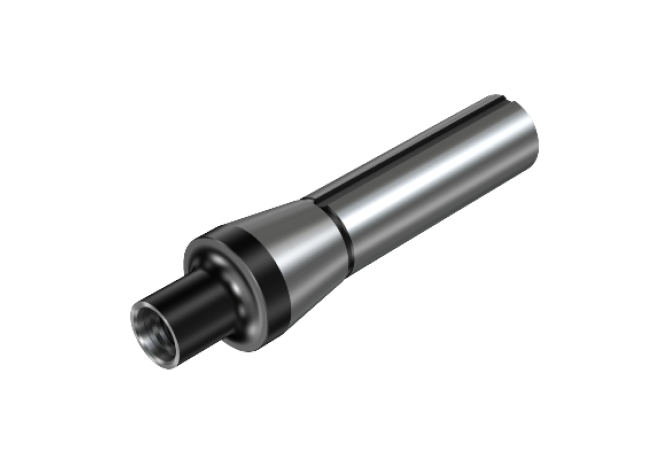

Главная Каталог продукции Sandvik Coromant 401-01 - Converter, rotationally symmetric A392.R8EH-32 10 025

A392.R8EH-32 10 025

A392.R8EH-32 10 025 A392.R8EH-32 10 025 A392.R8EH-32 10 025 A392.R8EH-32 10 025

A392.R8EH-32 10 025

Sandvik Coromant
Артикул: 5850812
В наличии
В корзину
Описание
Характеристики
BD (Body diameter 2)
19.15 mm
BD (Body diameter 3)
32 mm
BD (Body diameter)
9.15 mm
BHTA (Body half taper angle 2)
45 Degree
BLDEV (Balancing device)
CCFWS (Connection code form)
04
CCSWS (Connection code style)
5
CCTWS (Connection code type)
SAC
CCUWS (Connection code unit base)
8
CNSC (Coolant entry style code)
0 - Without coolant entry
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
CZCWS (Connection size code)
0100
DCONWS (Diameter)
9.15 mm
DCONWS (Diameter) / Диаметр соединения со стороны заготовки
9.15 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
BRP00800185
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
BRP01C0080$$$$
LB (Body length 1)
11.6 mm
LB (Length 2)
5 mm
LB (Length Body diameter 3)
8.4 mm
LF (Functional length)
25 mm
LOC-01 (CCFWS Connection code form)
04
LOC-01 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-01 (CCTWS Connection code type)
SAC Screw mounting SANDVIK Coromant
LOC-01 (CCUWS Connection code unit base)
8 non-dimensional size
LOC-01 (CZCWS Connection size code)
0100
LOC-01 (DCONWS Diameter)
9.15 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SAC01000485
LOC-02 ISO
SAC04B0100****
LOC-02 (DCONWS Diameter)
9.15 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-03 ISO
BRP01C0080$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
BRP Bridge-Port mounting
LOC-03 (CCUMS Connection code unit base)
8 non-dimensional size
LOC-03 (CZCMS Connection size code)
0080
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
BRP00800185
LPR (Protruding length)
25 mm
LS (Shank length)
101.6 mm
OAL (Overall length)
126.6 mm
RPMX (Rotational speed maximum)
10000 1/min
WT (Weight of item)
0.497 kg
