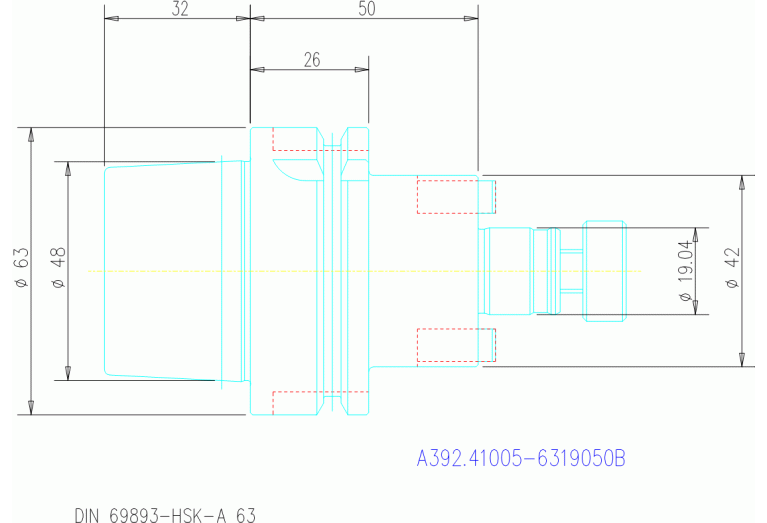

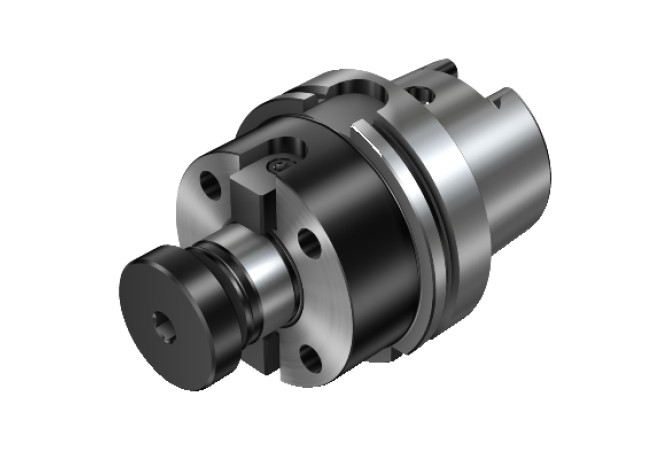

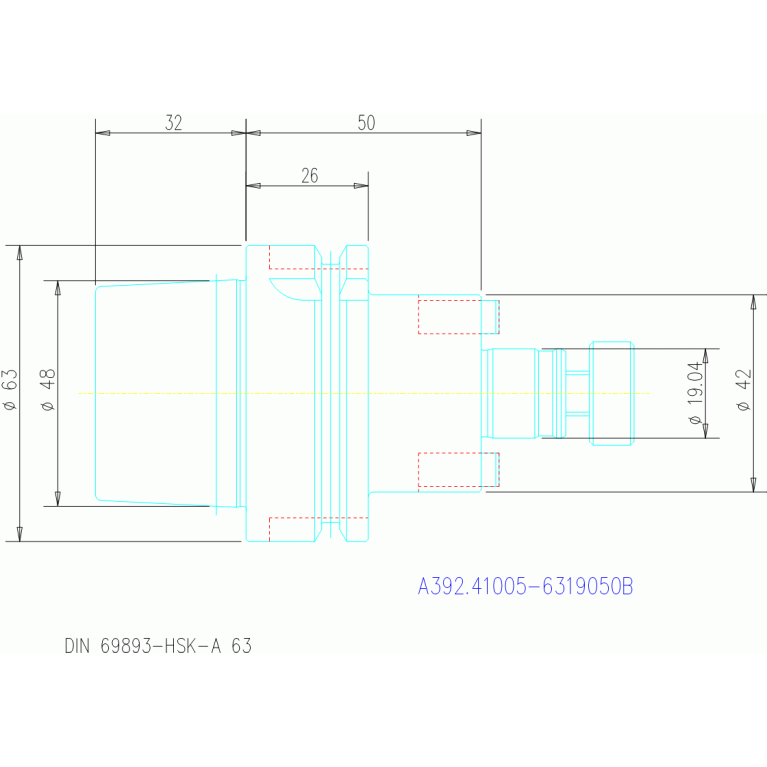

A392.41005-63 19 050B

Артикул: 5722800

В наличии

В корзину

Описание

Характеристики

BD (Body diameter 2)

63 mm

BD (Body diameter)

43 mm

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

FDA

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

CZCWS (Connection size code)

0750

DCONWS (Diameter)

63 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

63 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

HSK06300185

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

HSK01C0630$$$$

LB (Body length 1)

24 mm

LB (Length 2)

26 mm

LF (Functional length)

50.013 mm

LOC-01 ISO

FDA12R7500****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

0 Hole in machine direction or shaft in workpiece direction

LOC-01 (CCTWS Connection code type)

FDA Milling arbor mounting

LOC-01 (CCUWS Connection code unit base)

2 Inch

LOC-01 (CZCWS Connection size code)

0750

LOC-01 (DCONWS Diameter)

63 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

FDA07501220

LOC-02 ISO

FDA22R7500****

LOC-02 (CCFWS Connection code form)

LOC-02 (CCSWS Connection code style)

0 Hole in machine direction or shaft in workpiece direction

LOC-02 (CCTWS Connection code type)

FDA Milling arbor mounting

LOC-02 (CCUWS Connection code unit base)

2 Inch

LOC-02 (CZCWS Connection size code)

0750

LOC-02 (DCONWS Diameter)

63 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

FDA07502220

LOC-03 ISO

HSK01C0630$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

HSK Hollow taper shank

LOC-03 (CCUMS Connection code unit base)

8 non-dimensional size

LOC-03 (CZCMS Connection size code)

0630

LOC-03 (DCONMS Diameter)

63 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HSK06300185

LPR (Protruding length)

50.013 mm

LS (Shank length)

18.009 mm

OAL (Overall length)

82.013 mm

WT (Weight of item)

1.1 kg
