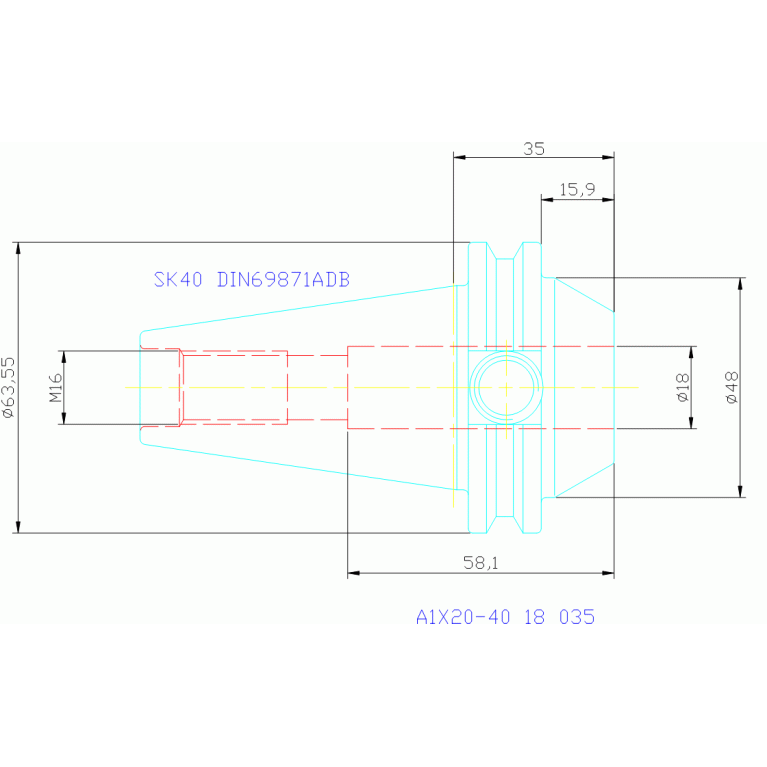

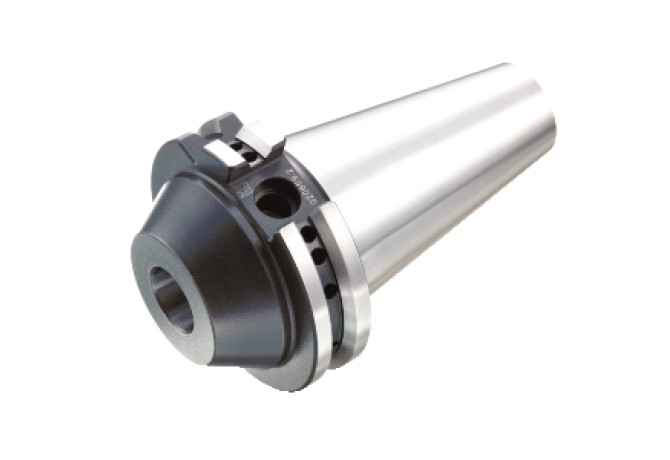

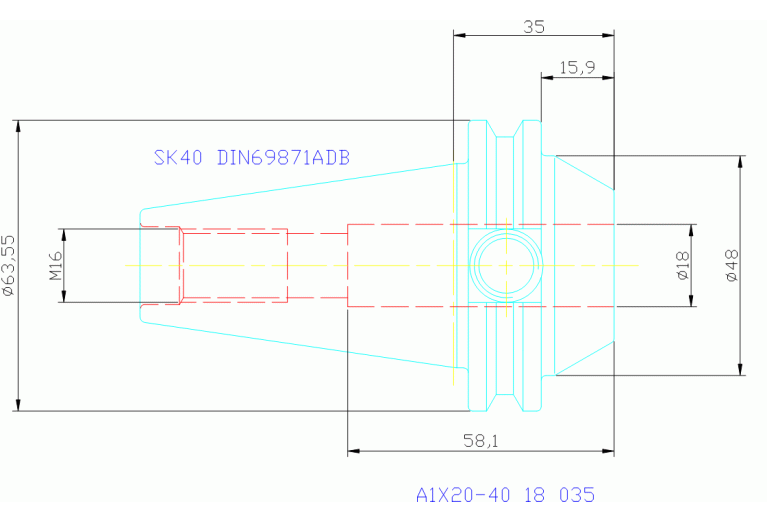

Главная Каталог продукции Sandvik Coromant 401-01 - Converter, rotationally symmetric A1X20-40 18 035

A1X20-40 18 035

A1X20-40 18 035

A1X20-40 18 035

A1X20-40 18 035

A1X20-40 18 035

A1X20-40 18 035

A1X20-40 18 035

Sandvik Coromant

Артикул: 5727580

В наличии

В корзину

Описание

Характеристики

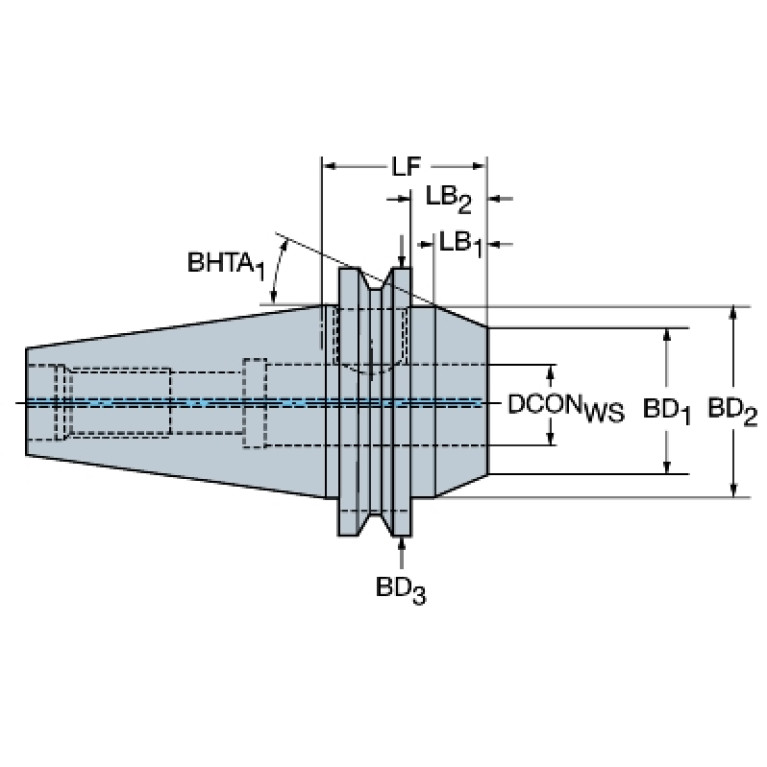

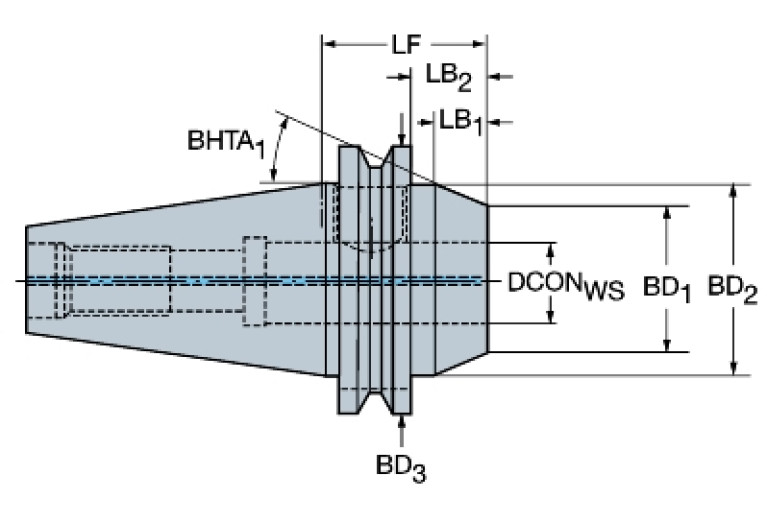

BD (Body diameter 2)

48 mm

BD (Body diameter)

47.811 mm

BLDEV (Balancing device)

1

CCFWS (Connection code form)

10

CCSWS (Connection code style)

5

CCTWS (Connection code type)

ZYL

CCUWS (Connection code unit base)

1

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

0180

DCINTF (Interference cutting diameter)

32.8 mm

DCONWS (Diameter)

18 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

18 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DF (Flange diameter)

63.55 mm

DIN

SKG04001195

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

SKG11C0400$$$$

LB (Body length 1)

13 mm

LB (Length 2)

1.9 mm

LF (Functional length)

35 mm

LOC-01 ISO

ZYL10G1800****

LOC-01 (CCFWS Connection code form)

10

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

ZYL cylindrical shank

LOC-01 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-01 (CZCWS Connection size code)

0180

LOC-01 (DCONWS Diameter)

18 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL01801015

LOC-02 ISO

ZYL10R7086****

LOC-02 (CCFWS Connection code form)

10

LOC-02 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-02 (CCTWS Connection code type)

ZYL cylindrical shank

LOC-02 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-02 (CZCWS Connection size code)

0180

LOC-02 (DCONWS Diameter)

18 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

ZYL01801815

LOC-03 ISO

SKG11C0400$$$$

LOC-03 (CCFMS Connection code form)

11

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

SKG steep taper shank

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0400

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG04001195

LPR (Protruding length)

35 mm

OAL (Overall length)

103.4 mm

TA (Taper angle)

30 Degree

WT (Weight of item)

0.899 kg
