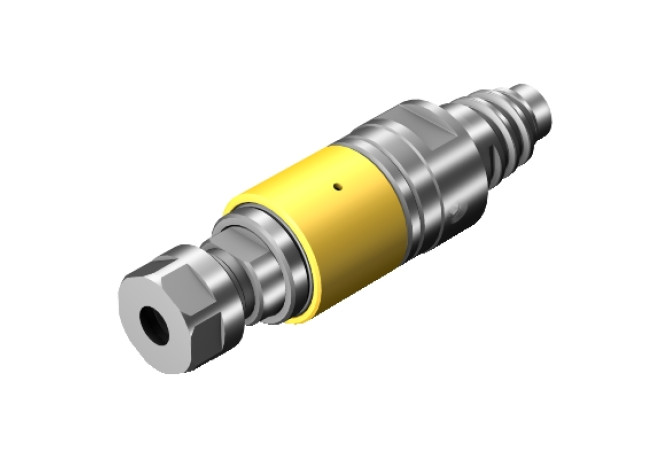

Главная Каталог продукции Sandvik Coromant 401-01 - Converter, rotationally symmetric 970-EH25-11-065

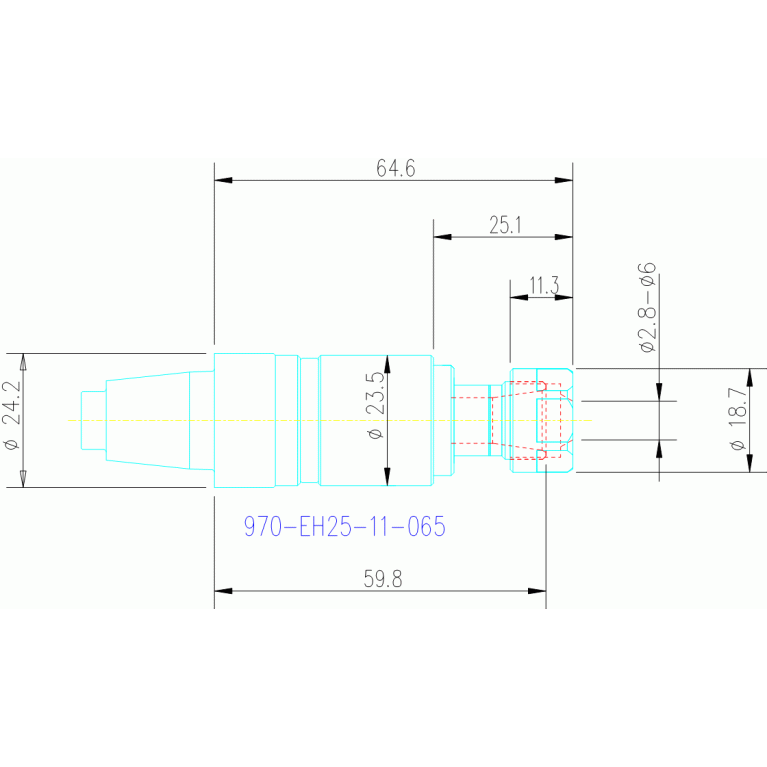

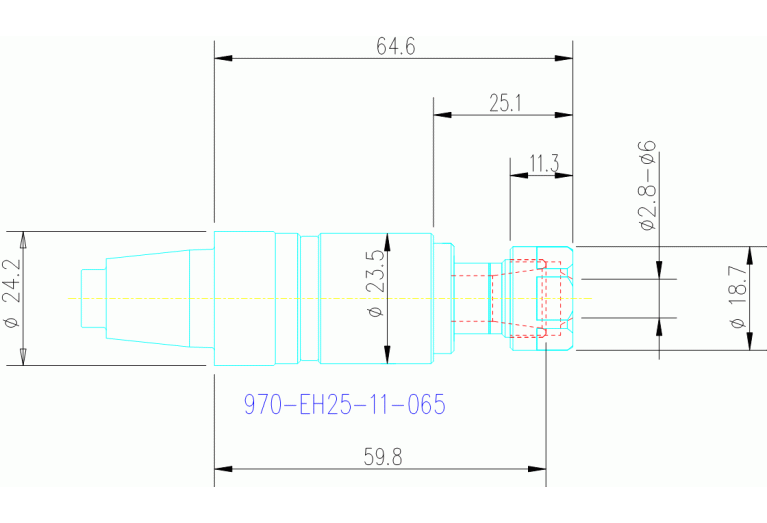

970-EH25-11-065

970-EH25-11-065 970-EH25-11-065 970-EH25-11-065 970-EH25-11-065

970-EH25-11-065

Sandvik Coromant
Артикул: 7253739
В наличии
В корзину
Описание
Характеристики

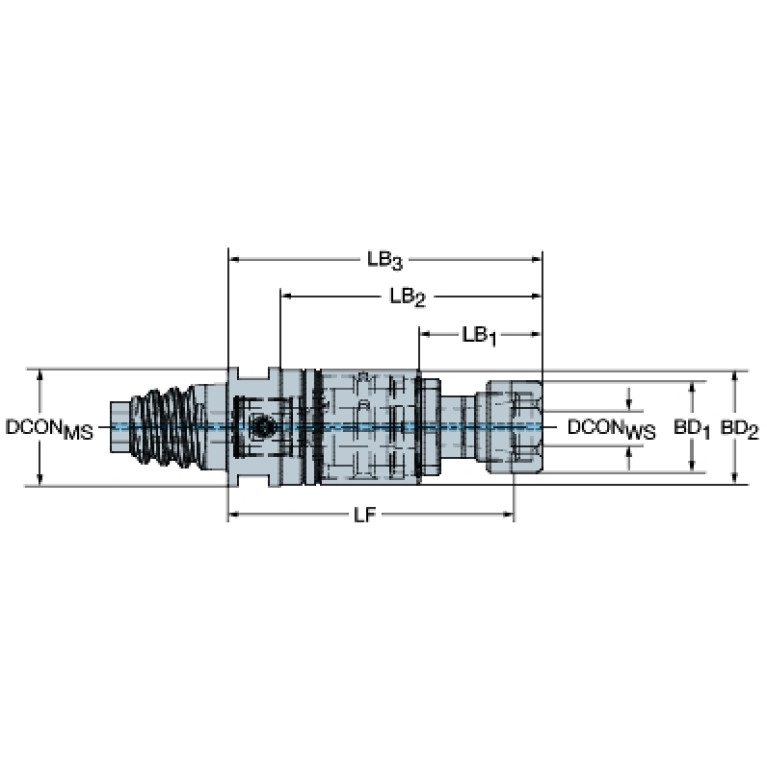

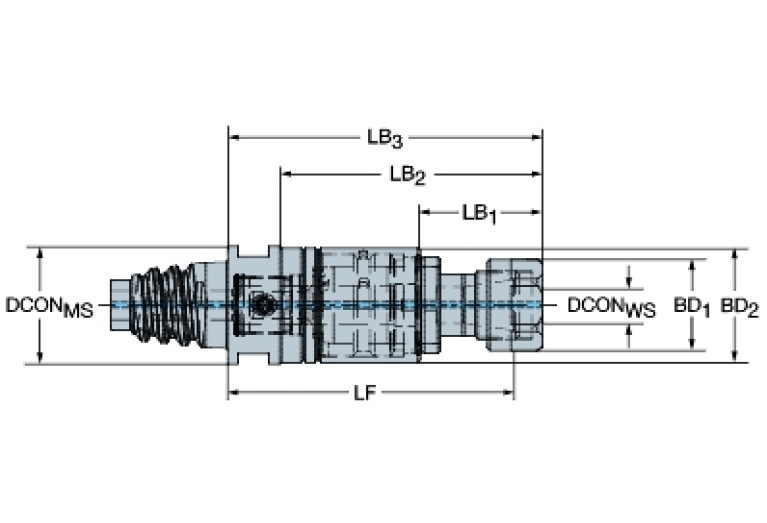

BD (Body diameter 2)
23.5 mm
BD (Body diameter 3)
24.2 mm
CCFWS (Connection code form)
02
CCSWS (Connection code style)
5
CCTWS (Connection code type)
SZD
CCUWS (Connection code unit base)
9
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
1 - With Coolant exit, axial concentric
CXSC (Coolant exit style code) / Тип подвода СОЖ
1 - With Coolant exit, axial concentric
CZCWS (Connection size code)
0110
DCONWS (Diameter)
24.2 mm
DCONWS (Diameter) / Диаметр соединения со стороны заготовки
24.2 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
SAC02500415
DLN (Diameter lock nut)
18.7 mm
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
SAC04A0250$$$$
LB (Body length 1)
3.608 mm
LB (Length 2)
28.5 mm
LB (Length Body diameter 3)
11 mm
LF (Functional length)
59.8 mm
LOC-01 ISO
SZD02C0110****
LOC-01 (CCFWS Connection code form)
02
LOC-01 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-01 (CCTWS Connection code type)
SZD Collet adapter DIN / ISO
LOC-01 (CCUWS Connection code unit base)
9 non-dimensional size with coolant
LOC-01 (CZCWS Connection size code)
0110
LOC-01 (DCONWS Diameter)
24.2 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SZD01100295
LOC-03 ISO
SAC04A0250$$$$
LOC-03 (CCFMS Connection code form)
04
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
SAC Screw mounting SANDVIK Coromant
LOC-03 (CCUMS Connection code unit base)
1 Metric with coolant
LOC-03 (CZCMS Connection size code)
0250
LOC-03 (DCONMS Diameter)
24.2 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAC02500415
LPR (Protruding length)
64.6 mm
OAL (Overall length)
88.6 mm
RPMX (Rotational speed maximum)
8000 1/min
WT (Weight of item)
0.162 kg
