Главная Каталог продукции Sandvik Coromant 401-01 - Converter, rotationally symmetric 391.28-32 63 135

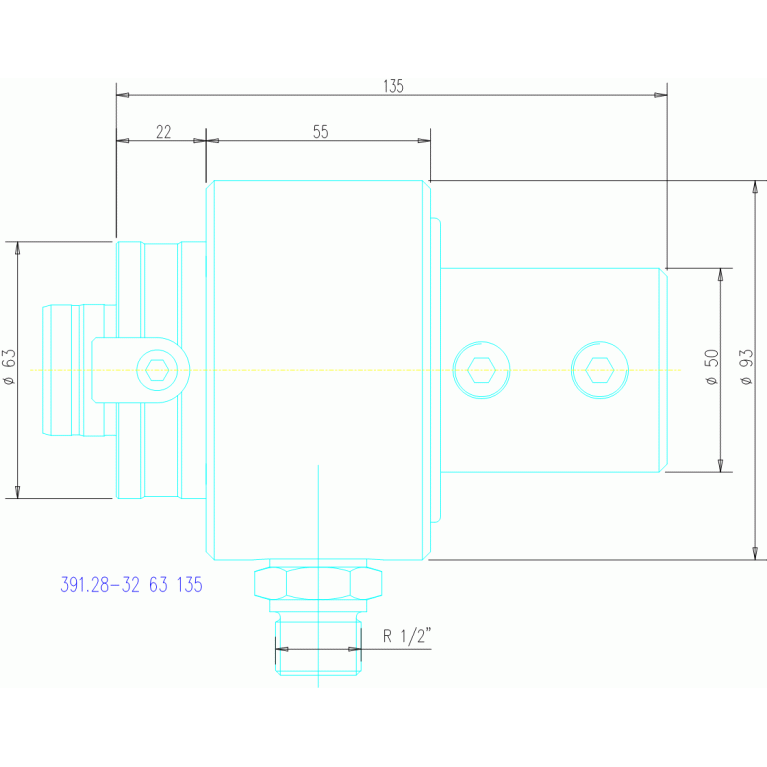

391.28-32 63 135

Артикул: 5759529

В наличии

В корзину

Описание

Характеристики

BD (Body diameter 2)

93 mm

BD (Body diameter)

50 mm

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

ZYL

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

5 - With coolant supply (entry) in radial direction in front of

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

0320

DCONWS (Diameter)

32 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

32 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

VLS06300195

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

VLS01C0630$$$$

LB (Body length 1)

55.5 mm

LB (Length 2)

79.5 mm

LF (Functional length)

135 mm

LOC-01 ISO

ZYL11G3200****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

ZYL cylindrical shank

LOC-01 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-01 (CZCWS Connection size code)

0320

LOC-01 (DCONWS Diameter)

32 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL03201115

LOC-02 ISO

ZYL11S1259****

LOC-02 (CCFWS Connection code form)

LOC-02 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-02 (CCTWS Connection code type)

ZYL cylindrical shank

LOC-02 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-02 (CZCWS Connection size code)

0320

LOC-02 (DCONWS Diameter)

32 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

ZYL12591135

LOC-03 ISO

VLS01C0630$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

VLS Varilock System SANDVIK Coromant

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0630

LOC-03 (DCONMS Diameter)

63 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VLS06300195

LPR (Protruding length)

135 mm

OAL (Overall length)

153 mm

WT (Weight of item)

3.18 kg
