Главная Каталог продукции Sandvik Coromant 401-02 - Converter, stationary SBB-60-MZ-ST50

SBB-60-MZ-ST50

SBB-60-MZ-ST50 SBB-60-MZ-ST50 SBB-60-MZ-ST50 SBB-60-MZ-ST50

SBB-60-MZ-ST50

Sandvik Coromant
Артикул: 6271274
В наличии
В корзину
Описание
Характеристики
CCFWS (Connection code form)
01
CCSWS (Connection code style)
5
CCTWS (Connection code type)
ZYL
CCUWS (Connection code unit base)
1
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
1 - With Coolant exit, axial concentric
CXSC (Coolant exit style code) / Тип подвода СОЖ
1 - With Coolant exit, axial concentric
CZCWS (Connection size code)
0600
DCONWS (Diameter)
60 mm
DCONWS (Diameter) / Диаметр соединения со стороны заготовки
60 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
HAND (Cutting direction)
N - Neutral
HF (Functional height)
0 mm
Interface codes
/ J61
ISO
FLC02CD0DN$$$$
LF (Functional length)
80 mm
LOC-01 (CCFWS Connection code form)
01
LOC-01 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-01 (CCTWS Connection code type)
ZYL cylindrical shank
LOC-01 (CCUWS Connection code unit base)
1 Metric with coolant
LOC-01 (CZCWS Connection size code)
0600
LOC-01 (DCONWS Diameter)
60 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL06000115
LOC-02 ISO
ZYL01S2362****
LOC-02 (DCONWS Diameter)
60 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-03 ISO
FLC02CD0DN$$$$
LOC-03 (CCFMS Connection code form)
02
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
FLC Flange mounting SANDVIK Coromant
LOC-03 (CCUMS Connection code unit base)
9 non-dimensional size with coolant
LOC-03 (CZCMS Connection size code)
D0DN
LOC-03-Connection-codes
J6 / J61 - connection code machine end

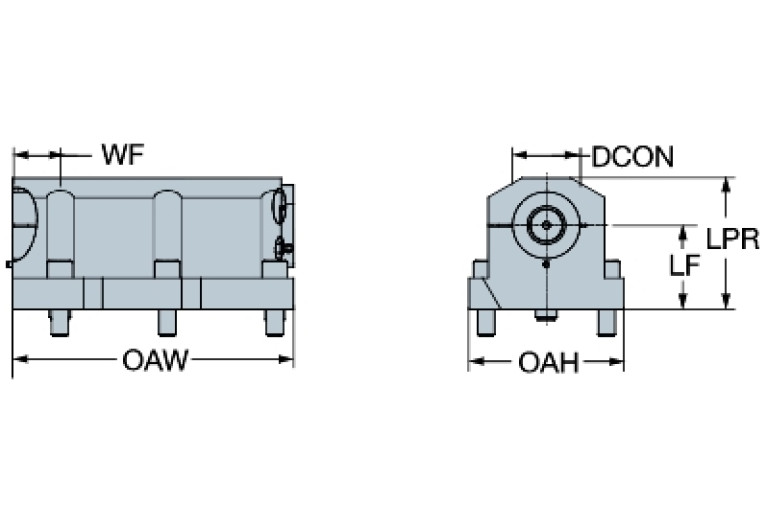

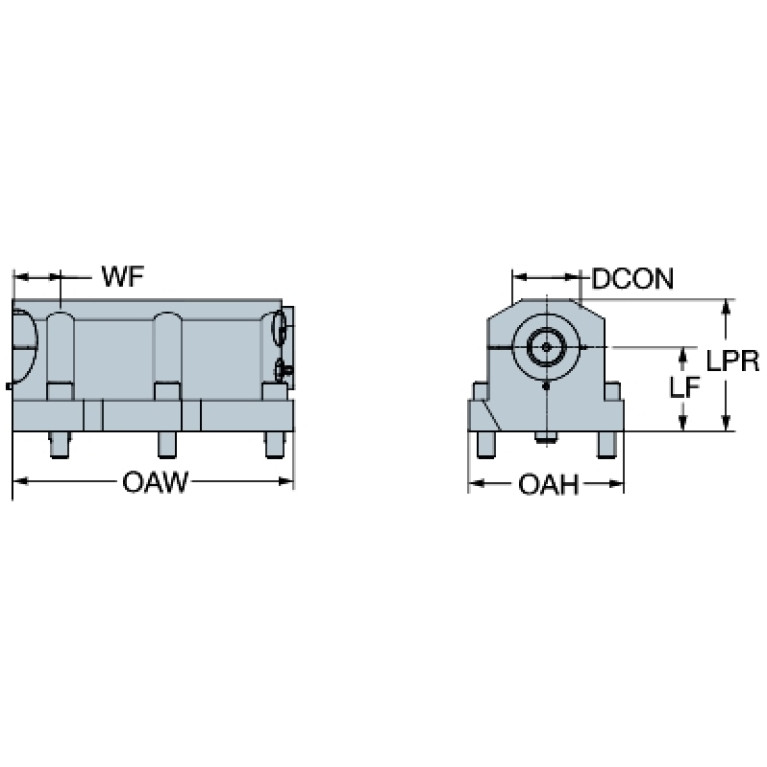

LPR (Protruding length)
125 mm
OAH (Overall height)
146 mm
OAL (Overall length)
125 mm
OAW (Overall width)
265 mm
Rotation (Rotation indicator)
0 - stationary tool
WF (Functional width)
45 mm
WT (Weight of item)
15.5 kg
