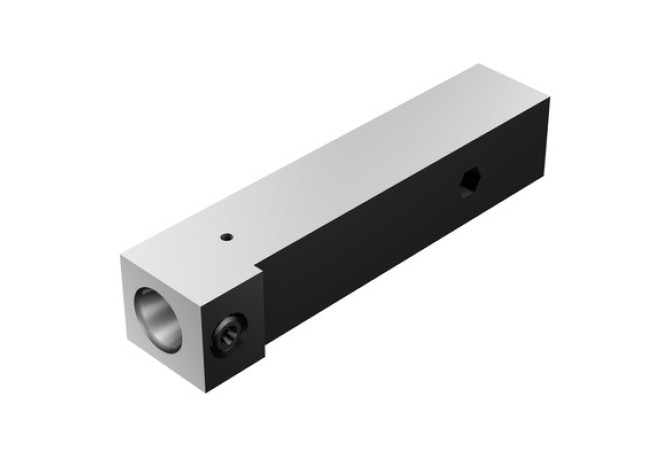

Главная Каталог продукции Sandvik Coromant 401-02 - Converter, stationary QSM16-N12

QSM16-N12

QSM16-N12 QSM16-N12 QSM16-N12 QSM16-N12

QSM16-N12

Sandvik Coromant
Артикул: 8631372
В наличии
В корзину
Описание
Характеристики
CCFWS (Connection code form)
01
CCONWS (Connection count workpiece side)
1
CCSWS (Connection code style)
5
CCTWS (Connection code type)
SQC
CCUWS (Connection code unit base)
9
CNSC (Coolant entry style code)
3 - With Coolant entry, axial concentric and radial
CXSC (Coolant exit style code)
1 - With Coolant exit, axial concentric
CXSC (Coolant exit style code) / Тип подвода СОЖ
1 - With Coolant exit, axial concentric
CZCWS (Connection size code)
016R
DCP (Data chip provision)
0 - Without data chip
Delivery state
LH - Stocked
Delivery state valid from
12/1/2024
DIN
VKT12120135
HAND (Cutting direction)
N - Neutral
HF (Functional height)
8 mm
Interface codes
J6 / J61
ISO
VKT01B1212$$$$
LF (Functional length)
80 mm
LOC-01 ISO
SQC01C016R****
LOC-01 (CCFWS Connection code form)
01
LOC-01 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-01 (CCTWS Connection code type)
SQC
LOC-01 (CCUWS Connection code unit base)
9 non-dimensional size with coolant
LOC-01 (CZCWS Connection size code)
016R
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SQC016R0195
LOC-03 ISO
VKT01B1212$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
VKT Square mounting
LOC-03 (CCUMS Connection code unit base)
3 Inch with coolant
LOC-03 (CZCMS Connection size code)
1212
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT12120135
LS (Shank length)
80 mm
LSCX (Clamping length maximum)
80 mm
OAH (Overall height)
19.05 mm
OAL (Overall length)
80 mm
OAW (Overall width)
20 mm
WF (Functional width)
8 mm
WT (Weight of item)
0.225 kg
