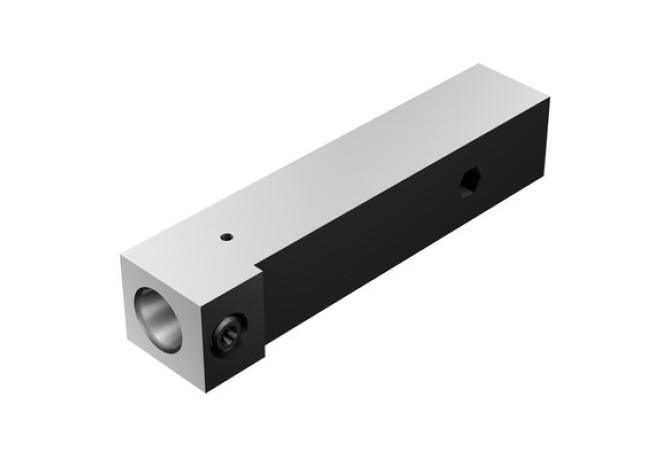

Главная Каталог продукции Sandvik Coromant 401-02 - Converter, stationary QSM16-N10

QSM16-N10

QSM16-N10 QSM16-N10 QSM16-N10 QSM16-N10

QSM16-N10

Sandvik Coromant
Артикул: 8631371
В наличии
В корзину
Описание
Характеристики
CCFWS (Connection code form)
01
CCONWS (Connection count workpiece side)
1
CCSWS (Connection code style)
5
CCTWS (Connection code type)
SQC
CCUWS (Connection code unit base)
9
CNSC (Coolant entry style code)
3 - With Coolant entry, axial concentric and radial
CXSC (Coolant exit style code)
1 - With Coolant exit, axial concentric
CXSC (Coolant exit style code) / Тип подвода СОЖ
1 - With Coolant exit, axial concentric
CZCWS (Connection size code)
016L
DCP (Data chip provision)
0 - Without data chip
Delivery state
LH - Stocked
Delivery state valid from
12/1/2024
DIN
VKT10100135
HAND (Cutting direction)
N - Neutral
HF (Functional height)
7.875 mm
Interface codes
J6 / J61
ISO
VKT01B1010$$$$
LF (Functional length)
80 mm
LOC-01 ISO
SQC01C016L****
LOC-01 (CCFWS Connection code form)
01
LOC-01 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-01 (CCTWS Connection code type)
SQC
LOC-01 (CCUWS Connection code unit base)
9 non-dimensional size with coolant
LOC-01 (CZCWS Connection size code)
016L
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SQC016L0195
LOC-02 ISO
SQC01C016R****
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
SQC016R0195
LOC-03 ISO
VKT01B1010$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
VKT Square mounting
LOC-03 (CCUMS Connection code unit base)
3 Inch with coolant
LOC-03 (CZCMS Connection size code)
1010
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT10100135
LS (Shank length)
68 mm
LSCX (Clamping length maximum)
68 mm
OAH (Overall height)
15.875 mm
OAL (Overall length)
80 mm
OAW (Overall width)
17.94 mm
WF (Functional width)
8 mm
WT (Weight of item)
0.149 kg
