Главная Каталог продукции Sandvik Coromant 401-02 - Converter, stationary C8-4-SL40 113 180-AX

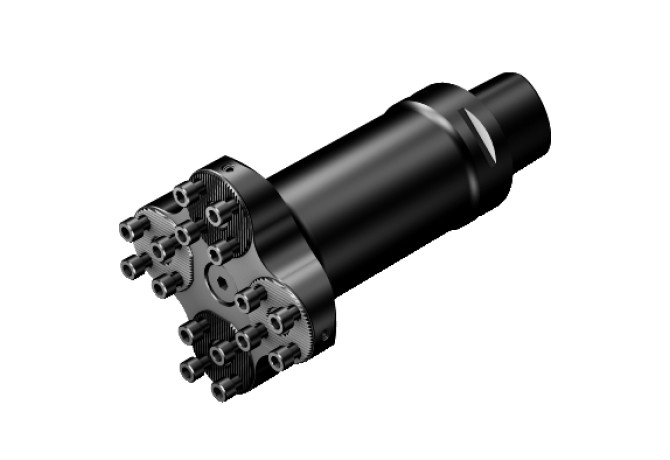

C8-4-SL40 113 180-AX

C8-4-SL40 113 180-AX C8-4-SL40 113 180-AX C8-4-SL40 113 180-AX C8-4-SL40 113 180-AX

C8-4-SL40 113 180-AX

Sandvik Coromant
Артикул: 6451666
В наличии
В корзину
Описание
Характеристики
CCFWS (Connection code form)
01
CCONWS (Connection count workpiece side)
4
CCSWS (Connection code style)
7
CCTWS (Connection code type)
CMS
CCUWS (Connection code unit base)
9
CNSC (Coolant entry style code)
3 - With Coolant entry, axial concentric and radial
CXSC (Coolant exit style code)
1 - With Coolant exit, axial concentric
CXSC (Coolant exit style code) / Тип подвода СОЖ
1 - With Coolant exit, axial concentric
CZCWS (Connection size code)
0400
DCONWS (Diameter)
80 mm
DCONWS (Diameter) / Диаметр соединения со стороны заготовки
80 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
CCS08000195
HAND (Cutting direction)
N - Neutral
HF (Functional height)
0 mm
Interface codes
J6 / J61
ISO
CCS01C0800$$$$
KAP (Kappa)
180 Degree
LF (Functional length)
180 mm
LOC-01 ISO
CMS01C0400****
LOC-01 (CCFWS Connection code form)
01
LOC-01 (CCSWS Connection code style)
7 Serrated connection
LOC-01 (CCTWS Connection code type)
CMS Coromant Modular boring SANDVIK
LOC-01 (CCUWS Connection code unit base)
9 non-dimensional size with coolant
LOC-01 (CZCWS Connection size code)
0400
LOC-01 (DCONWS Diameter)
80 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
CMS04000197
LOC-03 ISO
CCS01C0800$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
CCS Coromant Capto System SANDVIK
LOC-03 (CCUMS Connection code unit base)
9 non-dimensional size with coolant
LOC-03 (CZCMS Connection size code)
0800
LOC-03 (DCONMS Diameter)
80 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS08000195

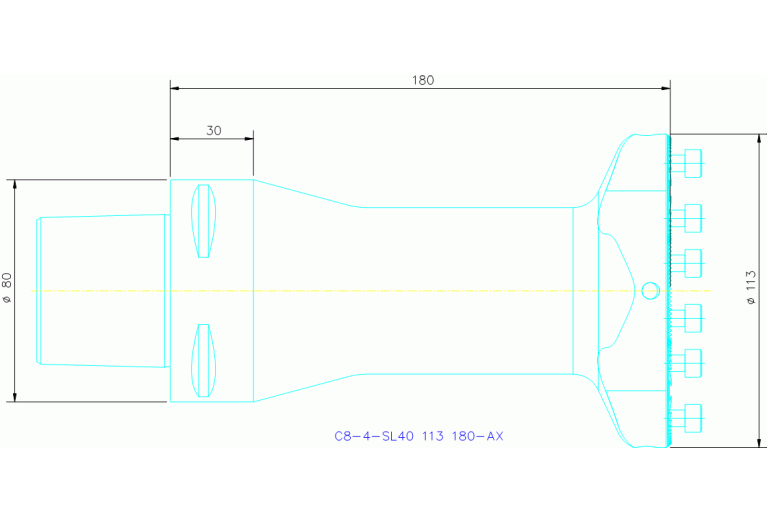

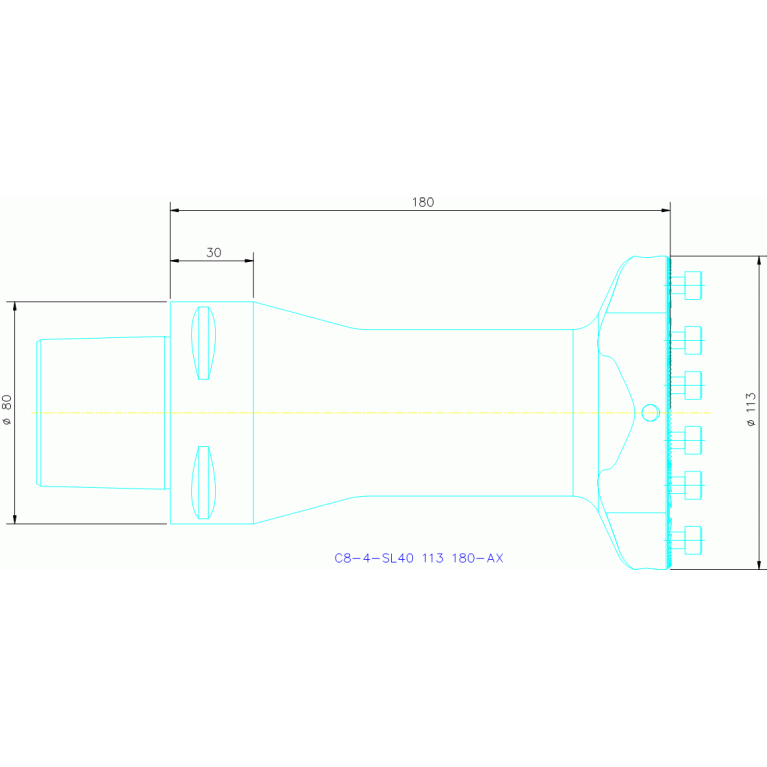

LPR (Protruding length)
180 mm

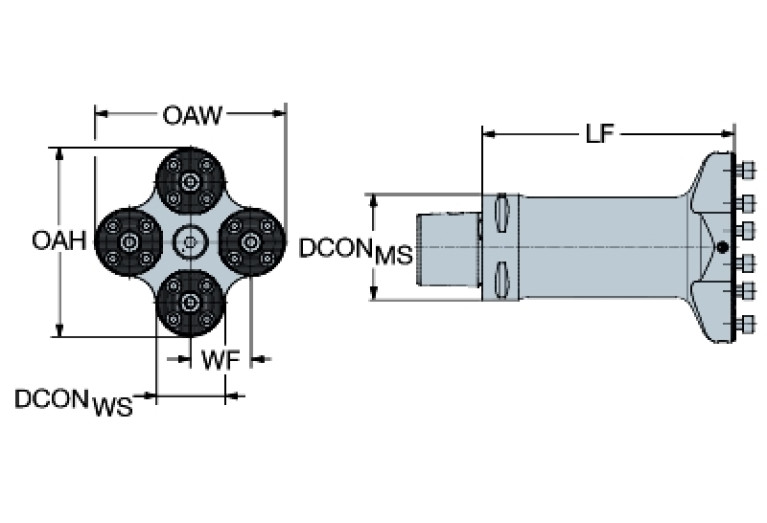

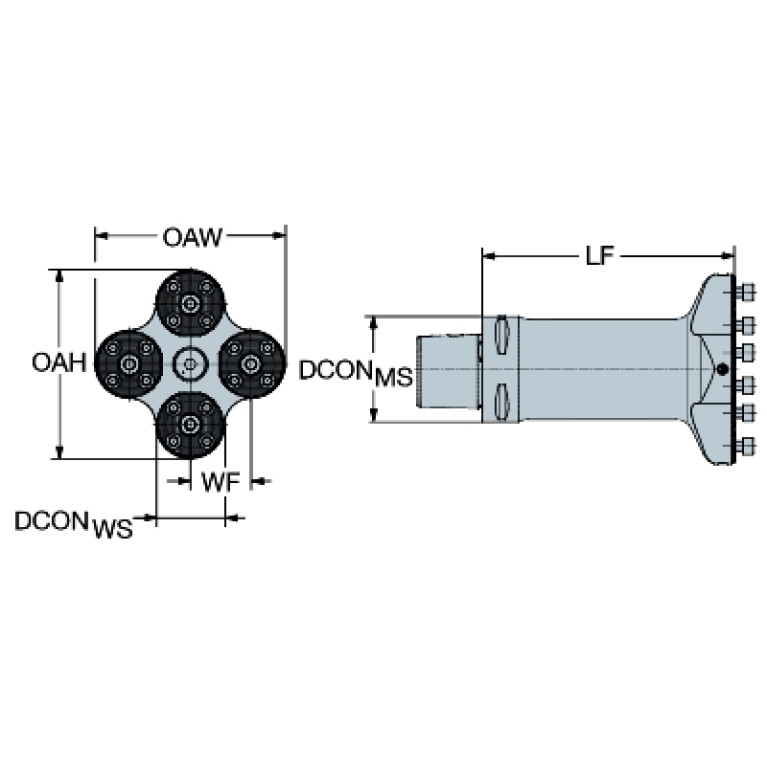

OAH (Overall height)
113 mm
OAL (Overall length)
228 mm
OAW (Overall width)
113 mm
WF (Functional width)
36 mm
WT (Weight of item)
6.045 kg
