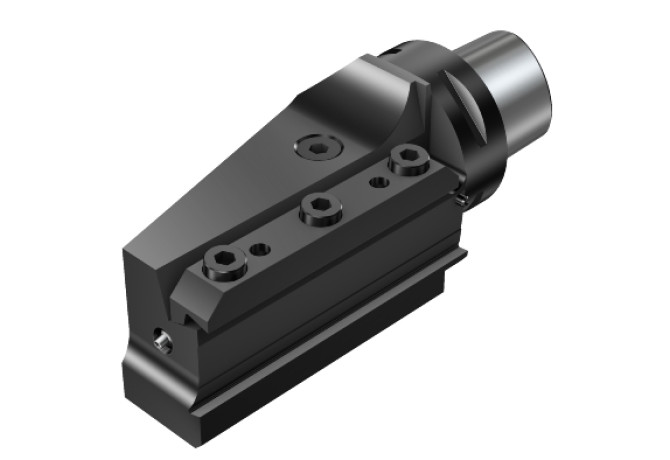

Главная Каталог продукции Sandvik Coromant 401-02 - Converter, stationary C6-APBR-37147-25X

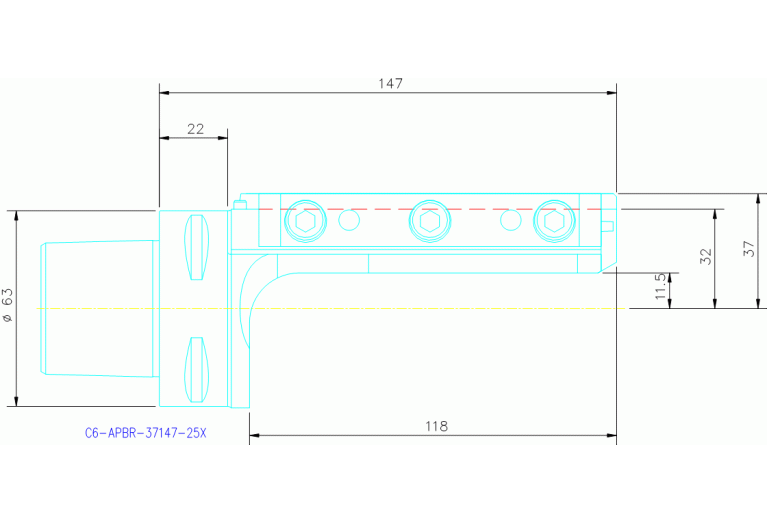

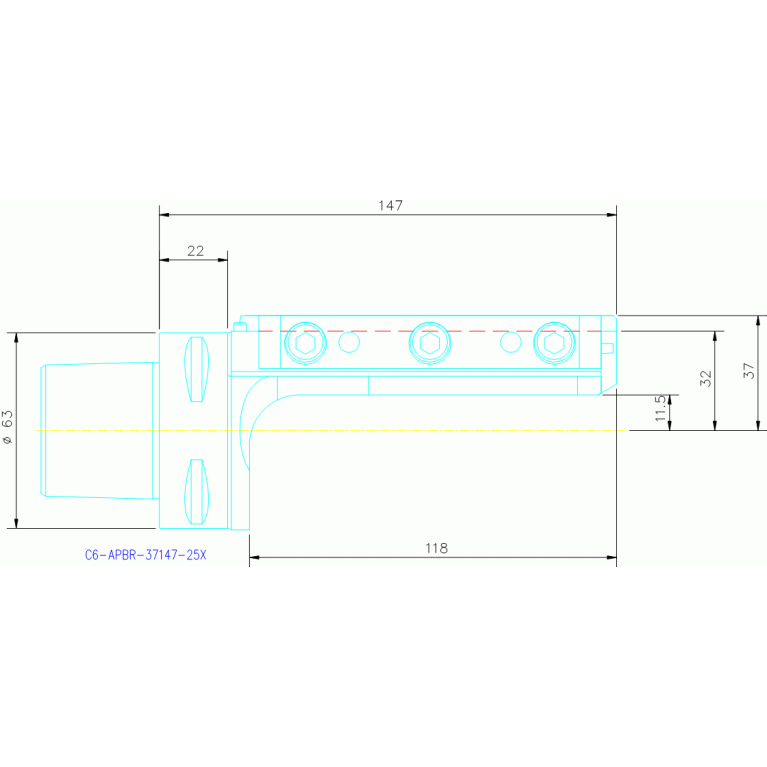

C6-APBR-37147-25X

Артикул: 6078864

В наличии

В корзину

Описание

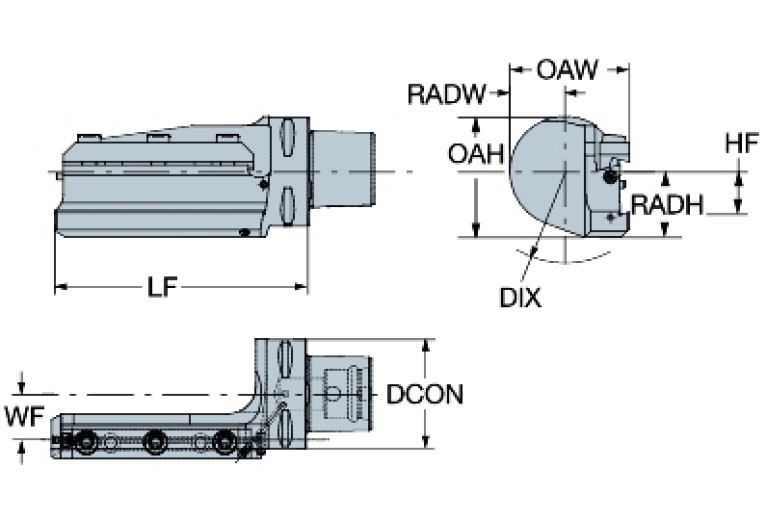

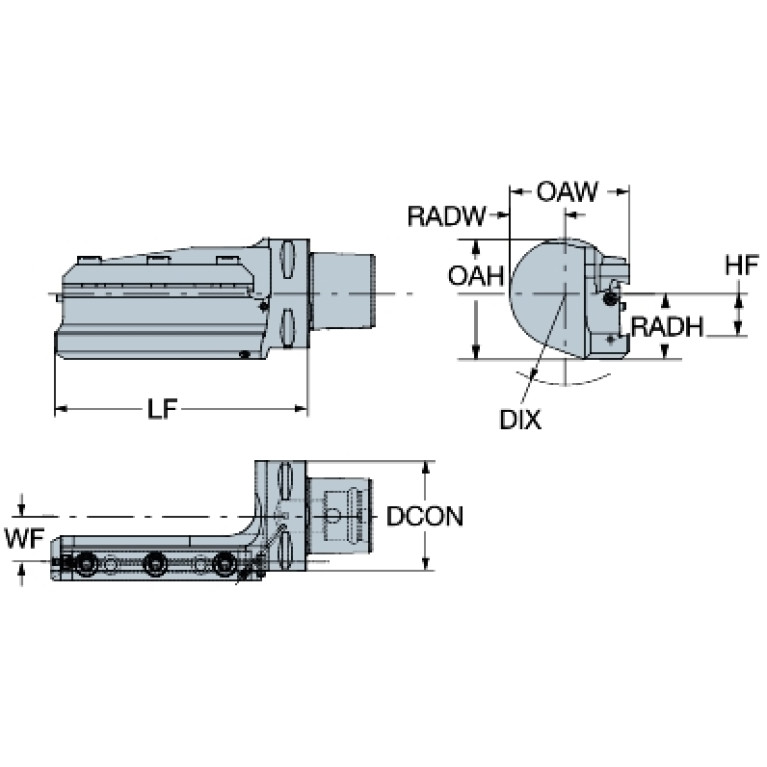

Характеристики

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

PMC

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

3 - With Coolant entry, axial concentric and radial

CXSC (Coolant exit style code)

6 - With coolant supply (discharge), peripheral/decentralized adjustable

CXSC (Coolant exit style code) / Тип подвода СОЖ

6 - With coolant supply (discharge), peripheral/decentralized adjustable

CZCWS (Connection size code)

0250

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

CCS06300195

HAND (Cutting direction)

R - Right

HF (Functional height)

25 mm

Interface codes

J6 / J61

ISO

CCS01C0630$$$$

LB (Body length 1)

5 mm

LF (Functional length)

147 mm

LOC-01 ISO

PMC01C0250****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

PMC Prism mounting SANDVIK Coromant

LOC-01 (CCUWS Connection code unit base)

9 non-dimensional size with coolant

LOC-01 (CZCWS Connection size code)

0250

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-02 ISO

PMC01C025R****

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-03 ISO

CCS01C0630$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0630

LOC-03 (DCONMS Diameter)

63 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS06300195

LPR (Protruding length)

147 mm

OAH (Overall height)

70 mm

OAL (Overall length)

185 mm

OAW (Overall width)

69 mm

RADH (Radial height)

38 mm

RADW (Radial width)

37 mm

Rotation (Rotation indicator)

0 - stationary tool

WF (Functional width)

32 mm

WT (Weight of item)

2.16 kg
