Главная Каталог продукции Sandvik Coromant 401-02 - Converter, stationary C5-TRI-OK60B

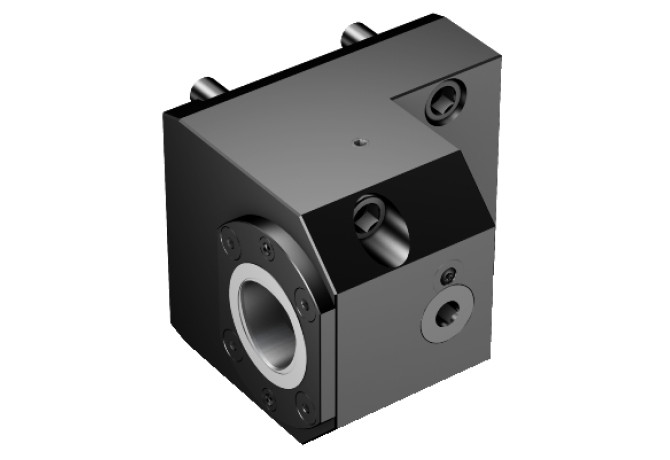

C5-TRI-OK60B

C5-TRI-OK60B

Sandvik Coromant

Артикул: 6271273

В наличии

В корзину

Описание

Характеристики

CCFWS (Connection code form)

01

CCSWS (Connection code style)

5

CCTWS (Connection code type)

CCS

CCUWS (Connection code unit base)

9

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

2 - With Coolant exit, radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

2 - With Coolant exit, radial

CZCWS (Connection size code)

0500

DCONWS (Diameter)

50 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

50 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

FLCF6BN0295

HAND (Cutting direction)

R - Right

HF (Functional height)

0 mm

Interface codes

J6 / J61

ISO

FLC02CF6BN$$$$

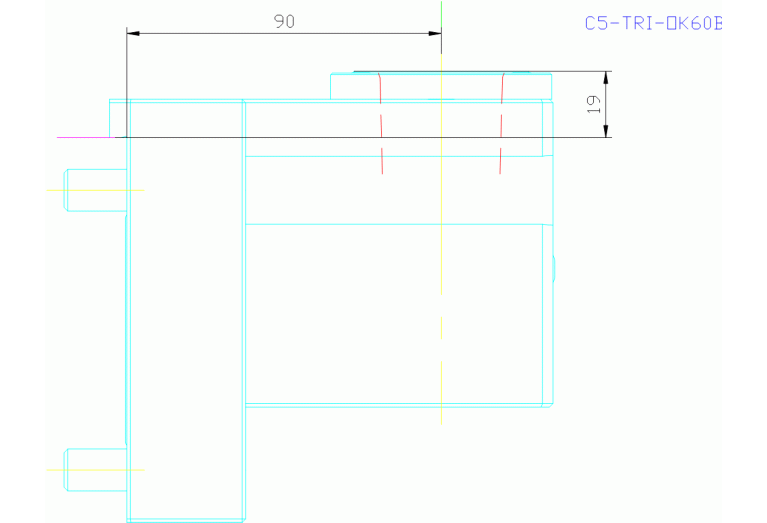

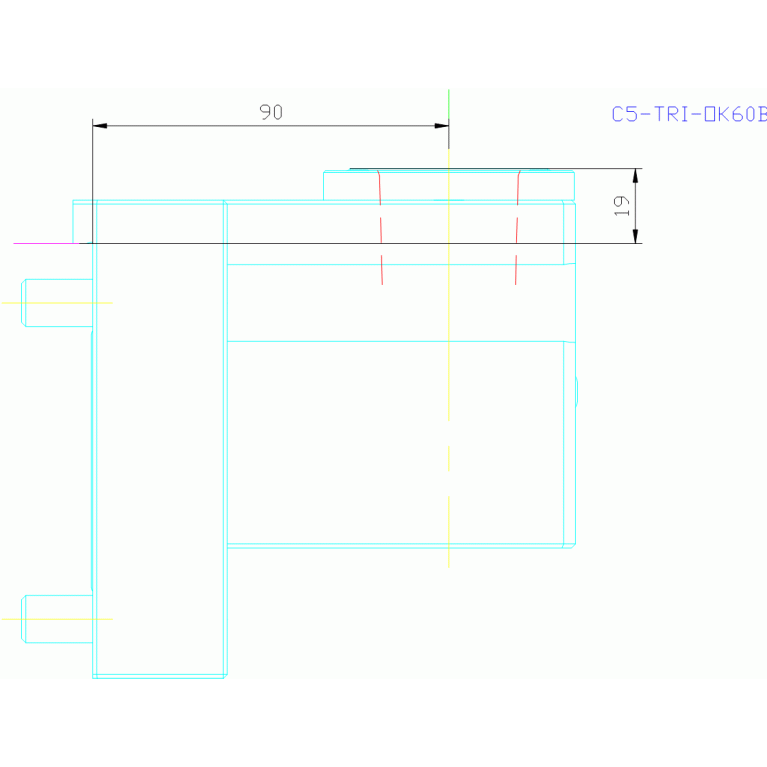

LF (Functional length)

90 mm

LOC-01 ISO

CCS01C0500****

LOC-01 (CCFWS Connection code form)

01

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-01 (CCUWS Connection code unit base)

9 non-dimensional size with coolant

LOC-01 (CZCWS Connection size code)

0500

LOC-01 (DCONWS Diameter)

50 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

CCS05000195

LOC-02 ISO

CCS02C0500****

LOC-02 (CCFWS Connection code form)

01

LOC-02 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-02 (CCTWS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-02 (CCUWS Connection code unit base)

9 non-dimensional size with coolant

LOC-02 (CZCWS Connection size code)

0500

LOC-02 (DCONWS Diameter)

50 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

CCS05000295

LOC-03 ISO

FLC02CF6BN$$$$

LOC-03 (CCFMS Connection code form)

02

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

FLC Flange mounting SANDVIK Coromant

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

F6BN

LOC-03 (DCONMS Diameter)

50 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FLCF6BN0295

LPR (Protruding length)

122 mm

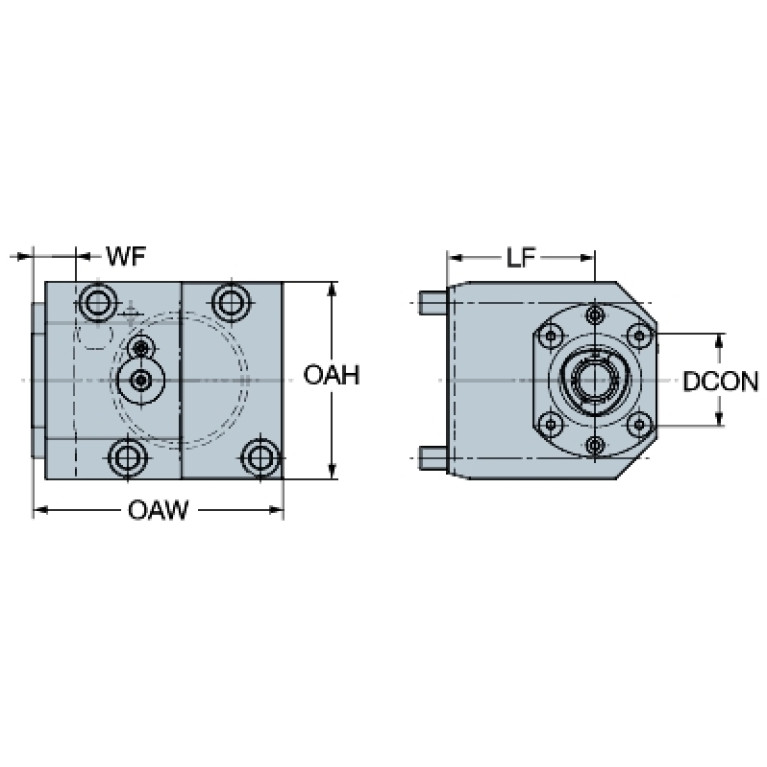

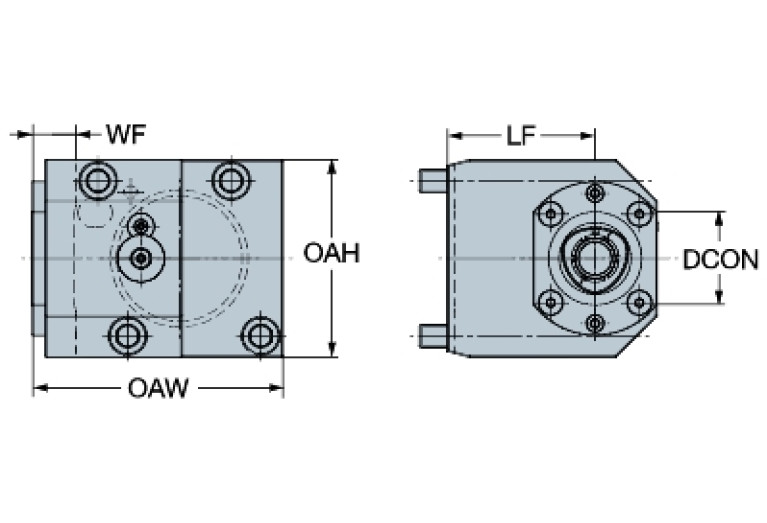

OAH (Overall height)

100 mm

OAL (Overall length)

122 mm

OAW (Overall width)

129 mm

WF (Functional width)

19 mm

WT (Weight of item)

8.076 kg
