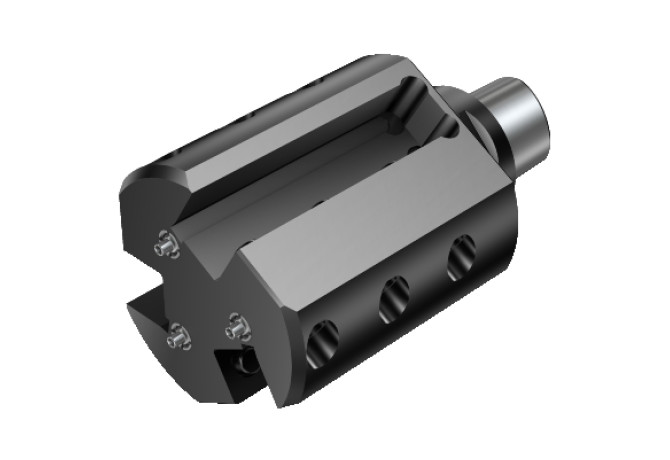

Главная Каталог продукции Sandvik Coromant 401-02 - Converter, stationary C5-ASHL3-36123-20

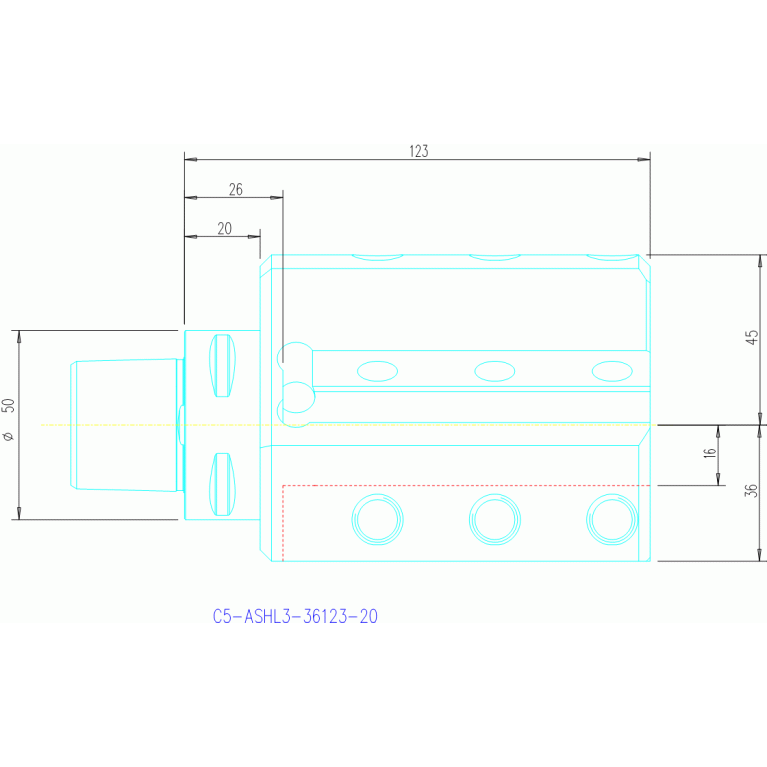

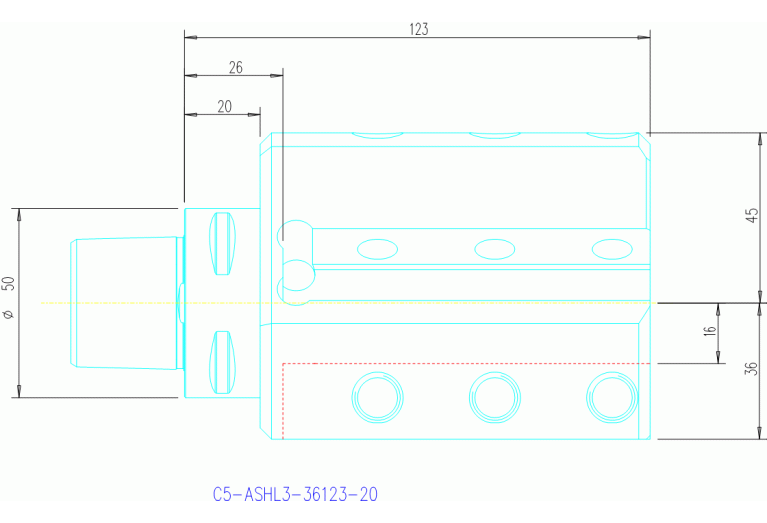

C5-ASHL3-36123-20

Артикул: 5727955

В наличии

В корзину

Описание

Характеристики

CCFWS (Connection code form)

CCONWS (Connection count workpiece side)

CCSWS (Connection code style)

CCTWS (Connection code type)

VKT

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

3 - With Coolant entry, axial concentric and radial

CXSC (Coolant exit style code)

5 - With coolant supply (discharge) in axial in direction, diagonal adjustable

CXSC (Coolant exit style code) / Тип подвода СОЖ

5 - With coolant supply (discharge) in axial in direction, diagonal adjustable

CZCWS (Connection size code)

2012

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

CCS05000195

HAND (Cutting direction)

L - Left

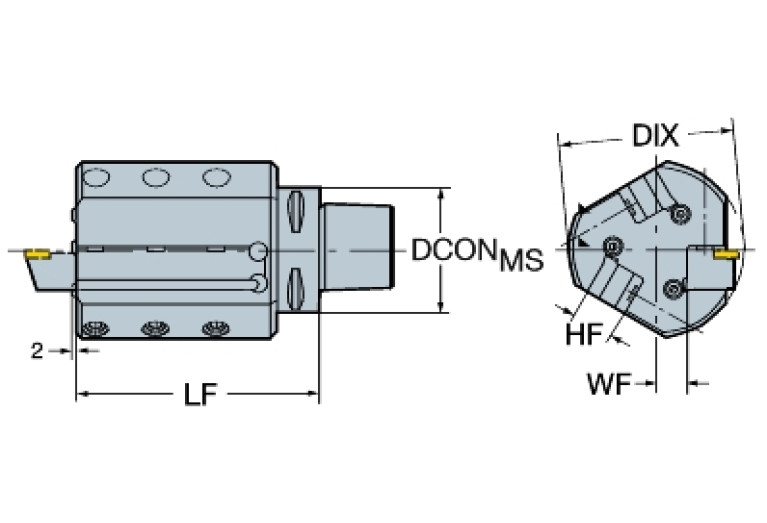

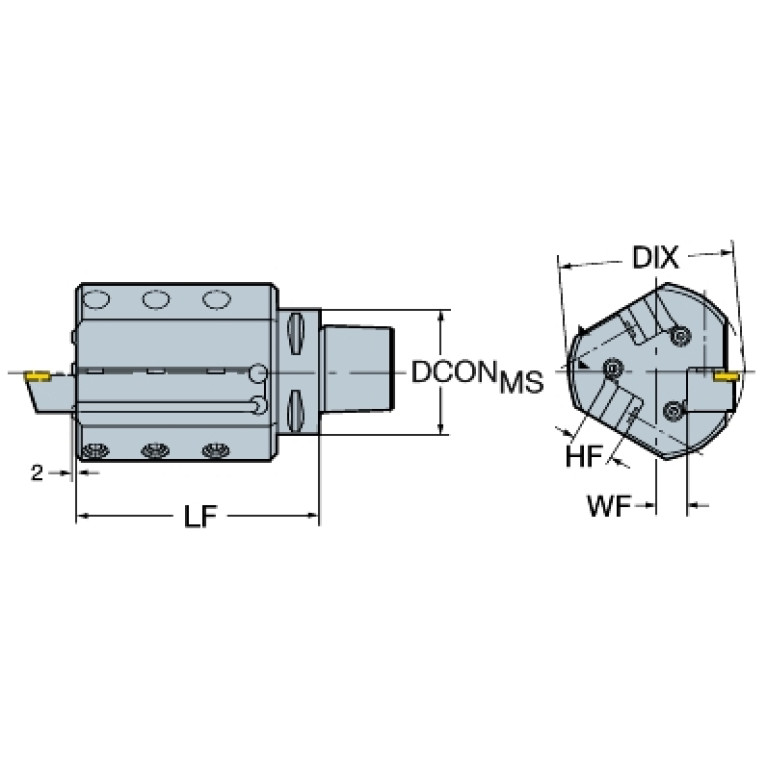

HF (Functional height)

20 mm

Interface codes

J6 / J61

ISO

CCS01C0500$$$$

KAP (Kappa)

240 Degree

LF (Functional length)

123 mm

LOC-01 ISO

VKT01A2012****VKT01A2022****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

VKT Square mounting

LOC-01 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-01 (CZCWS Connection size code)

2012

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

VKT20120115VKT20220115

LOC-03 ISO

CCS01C0500$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0500

LOC-03 (DCONMS Diameter)

50 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS05000195

LPR (Protruding length)

123 mm

OAL (Overall length)

153 mm

WF (Functional width)

16 mm

WT (Weight of item)

3.65 kg
