Главная Каталог продукции Sandvik Coromant 401-02 - Converter, stationary C5-4-SL32 093 125-AX

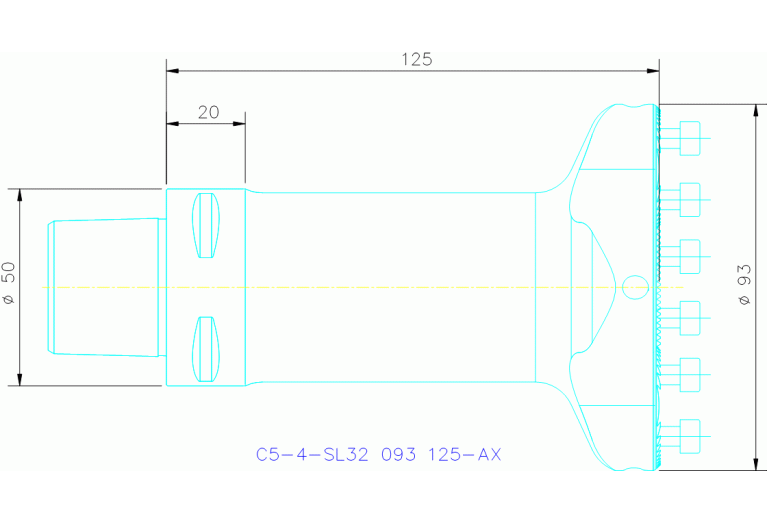

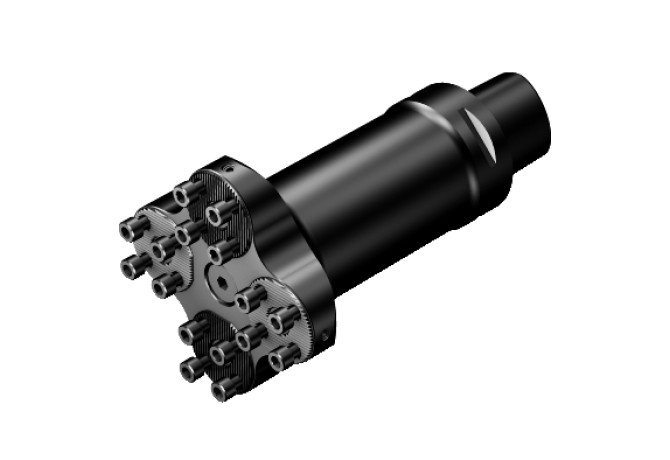

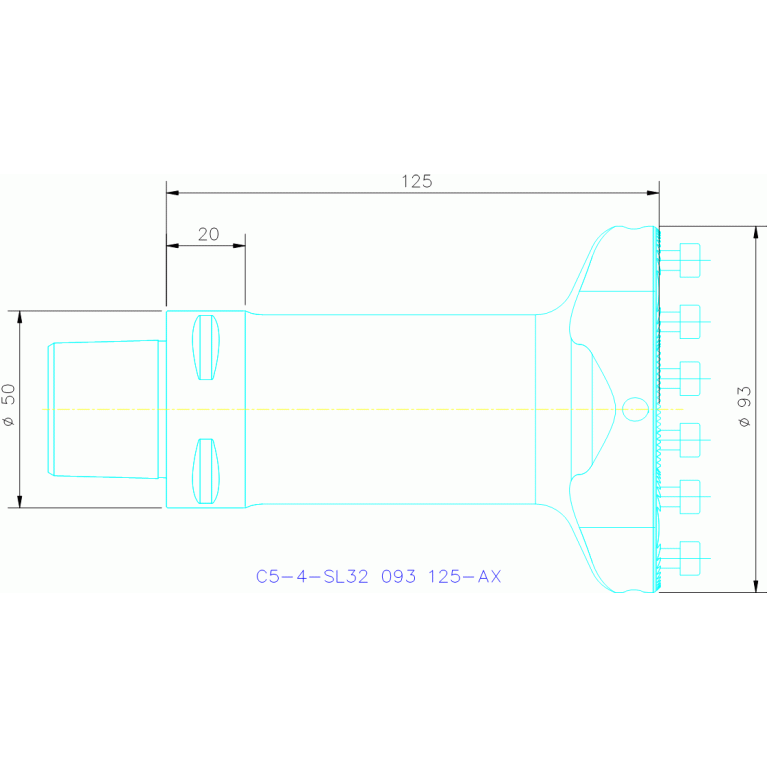

C5-4-SL32 093 125-AX

C5-4-SL32 093 125-AX C5-4-SL32 093 125-AX C5-4-SL32 093 125-AX C5-4-SL32 093 125-AX

C5-4-SL32 093 125-AX

Sandvik Coromant
Артикул: 6451664
В наличии
В корзину
Описание
Характеристики
CCFWS (Connection code form)
01
CCONWS (Connection count workpiece side)
4
CCSWS (Connection code style)
7
CCTWS (Connection code type)
CMS
CCUWS (Connection code unit base)
9
CNSC (Coolant entry style code)
3 - With Coolant entry, axial concentric and radial
CXSC (Coolant exit style code)
1 - With Coolant exit, axial concentric
CXSC (Coolant exit style code) / Тип подвода СОЖ
1 - With Coolant exit, axial concentric
CZCWS (Connection size code)
0320
DCONWS (Diameter)
50 mm
DCONWS (Diameter) / Диаметр соединения со стороны заготовки
50 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
CCS05000195
HAND (Cutting direction)
N - Neutral
HF (Functional height)
0 mm
Interface codes
J6 / J61
ISO
CCS01C0500$$$$
KAP (Kappa)
180 Degree
LF (Functional length)
125 mm
LOC-01 ISO
CMS01C0320****
LOC-01 (CCFWS Connection code form)
01
LOC-01 (CCSWS Connection code style)
7 Serrated connection
LOC-01 (CCTWS Connection code type)
CMS Coromant Modular boring SANDVIK
LOC-01 (CCUWS Connection code unit base)
9 non-dimensional size with coolant
LOC-01 (CZCWS Connection size code)
0320
LOC-01 (DCONWS Diameter)
50 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
CMS03200197
LOC-03 ISO
CCS01C0500$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
CCS Coromant Capto System SANDVIK
LOC-03 (CCUMS Connection code unit base)
9 non-dimensional size with coolant
LOC-03 (CZCMS Connection size code)
0500
LOC-03 (DCONMS Diameter)
50 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS05000195
LPR (Protruding length)
125 mm

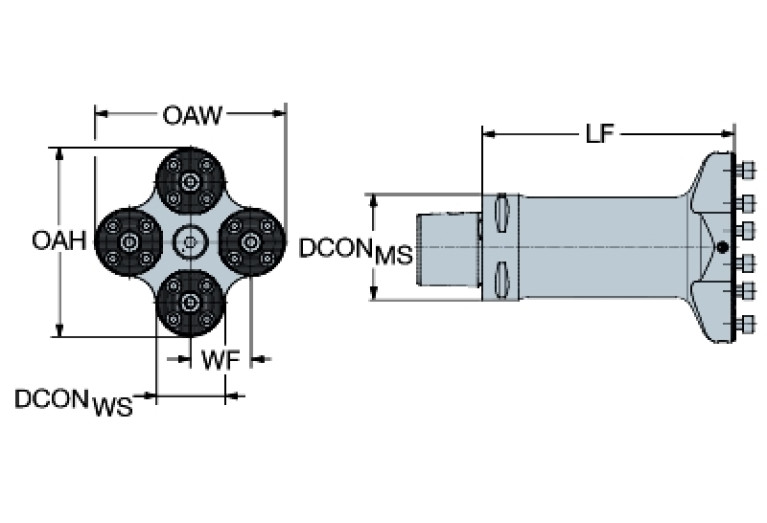

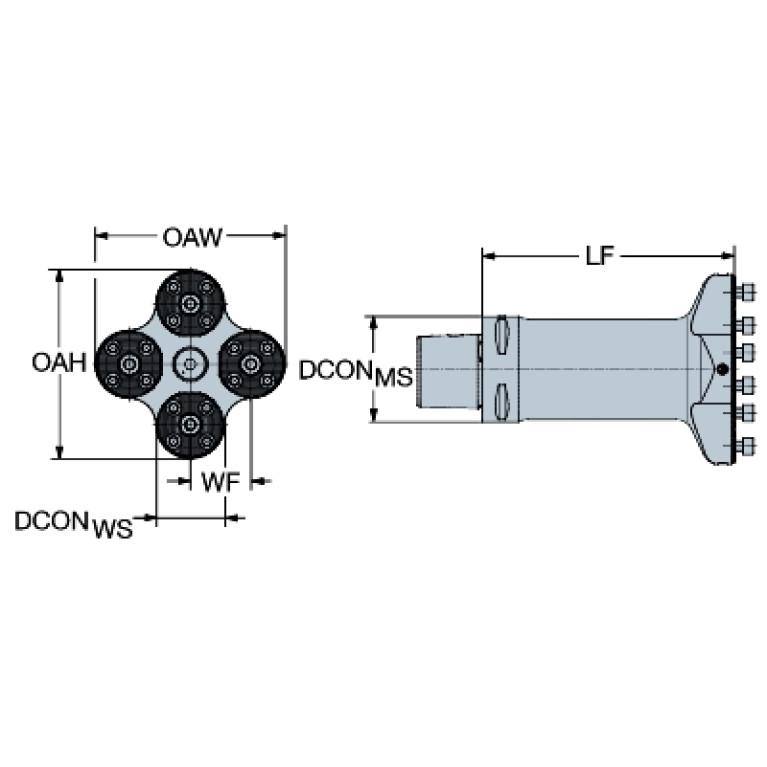

OAH (Overall height)
93 mm
OAL (Overall length)
155 mm
OAW (Overall width)
93 mm
WF (Functional width)
30 mm
WT (Weight of item)
2.308 kg
