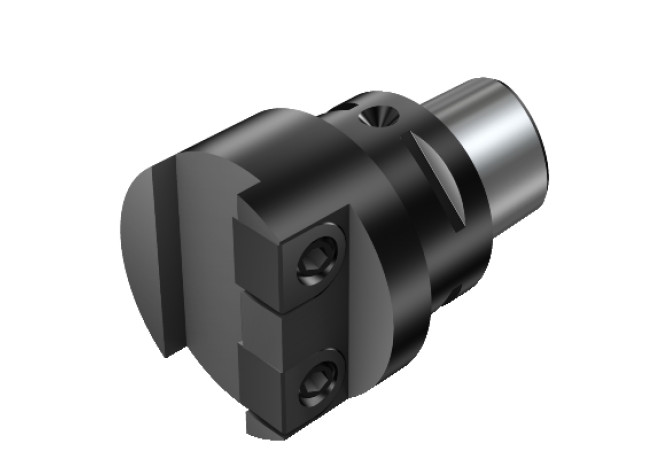

Главная Каталог продукции Sandvik Coromant 401-02 - Converter, stationary C5-151.2-33040-21

C5-151.2-33040-21

C5-151.2-33040-21 C5-151.2-33040-21 C5-151.2-33040-21 C5-151.2-33040-21

C5-151.2-33040-21

Sandvik Coromant
Артикул: 5728945
В наличии
В корзину
Описание
Характеристики
CCFWS (Connection code form)
01
CCSWS (Connection code style)
5
CCTWS (Connection code type)
PMC
CCUWS (Connection code unit base)
8
CNSC (Coolant entry style code)
0 - Without coolant entry
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
CZCWS (Connection size code)
0210
DCP (Data chip provision)
0 - Without data chip
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
CCS05000185
HAND (Cutting direction)
N - Neutral
HF (Functional height)
21.4 mm
Interface codes
J6 / J61
ISO
CCS01C0500$$$$
LF (Functional length)
40 mm
LOC-01 ISO
PMC01C0210****
LOC-01 (CCFWS Connection code form)
01
LOC-01 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-01 (CCTWS Connection code type)
PMC Prism mounting SANDVIK Coromant
LOC-01 (CCUWS Connection code unit base)
8 non-dimensional size
LOC-01 (CZCWS Connection size code)
0210
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-02 ISO
PMC01C021L****
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-03 ISO
CCS01C0500$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
CCS Coromant Capto System SANDVIK
LOC-03 (CCUMS Connection code unit base)
8 non-dimensional size
LOC-03 (CZCMS Connection size code)
0500
LOC-03 (DCONMS Diameter)
50 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS05000185
LPR (Protruding length)
40 mm

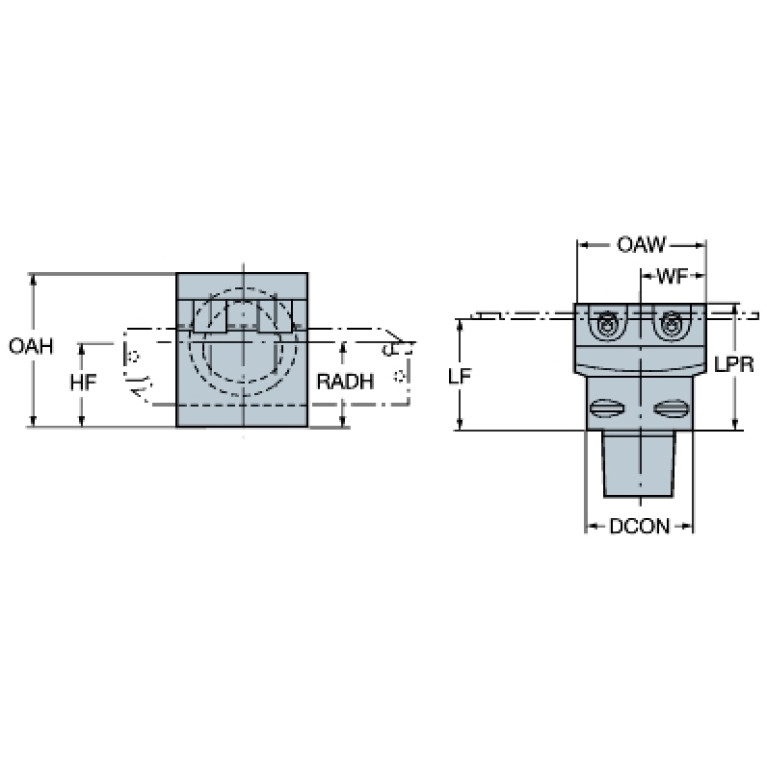

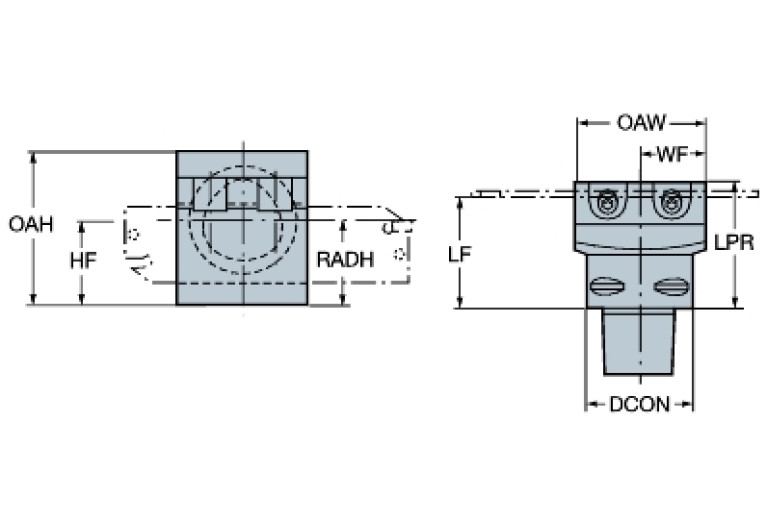

OAH (Overall height)
67 mm
OAL (Overall length)
75.25 mm
OAW (Overall width)
66 mm
RADH (Radial height)
35.052 mm
Rotation (Rotation indicator)
0 - stationary tool
WF (Functional width)
77.47 mm
WT (Weight of item)
1.02 kg
