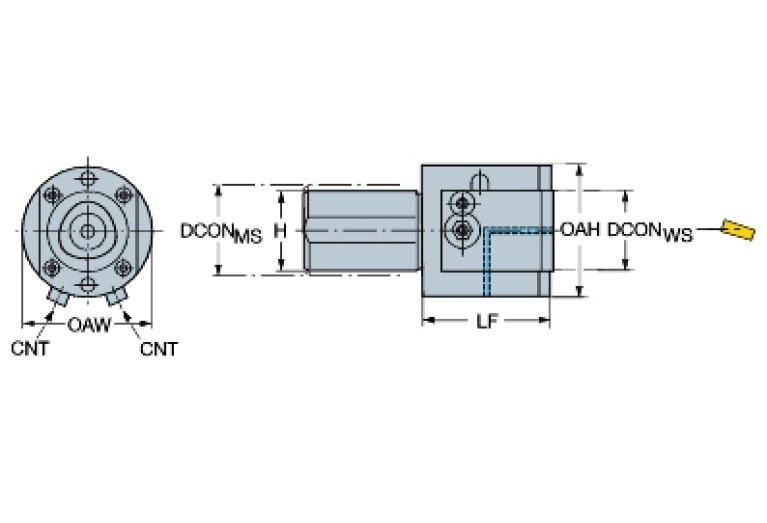

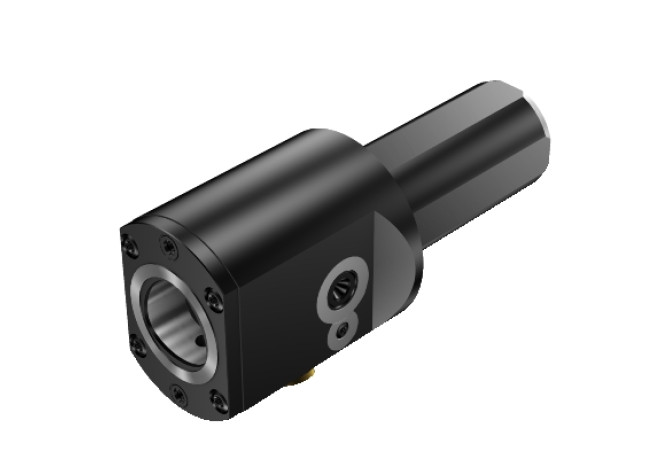

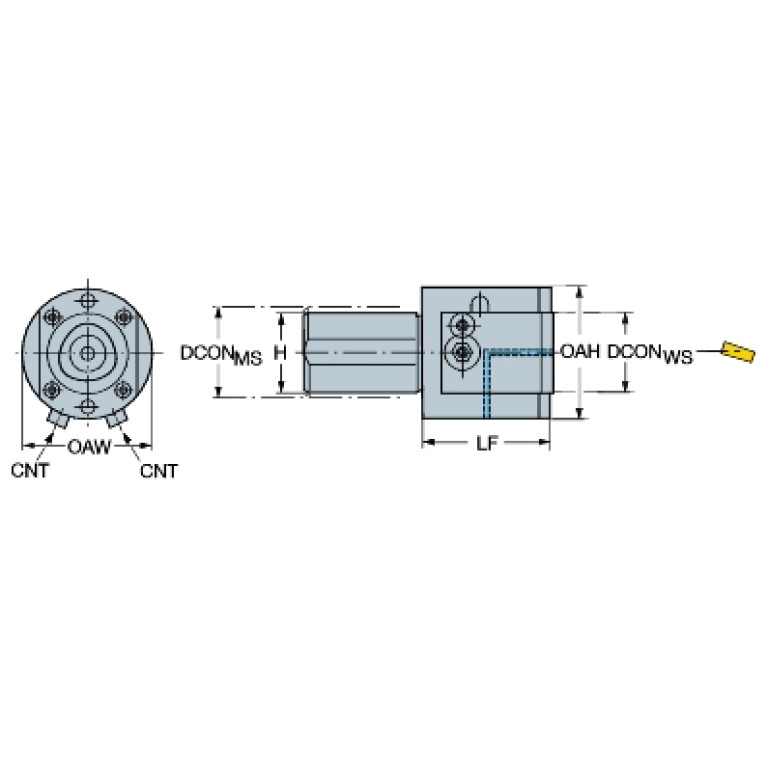

Главная Каталог продукции Sandvik Coromant 401-02 - Converter, stationary C4-LC2045-00075M

C4-LC2045-00075M

Артикул: 5727656

В наличии

В корзину

Описание

Характеристики

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

CCS

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

6 - With coolant supply (discharge), peripheral/decentralized via flange

CXSC (Coolant exit style code)

2 - With Coolant exit, radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

2 - With Coolant exit, radial

CZCWS (Connection size code)

0400

DCONWS (Diameter)

40 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

40 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

ZYL04002215

HAND (Cutting direction)

L - Left

HF (Functional height)

0 mm

Interface codes

J6 / J61

ISO

ZYL22G4000$$$$

LF (Functional length)

75 mm

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-01 (CCUWS Connection code unit base)

9 non-dimensional size with coolant

LOC-01 (CZCWS Connection size code)

0400

LOC-01 (DCONWS Diameter)

40 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

CCS04000195

LOC-02 ISO

CCS02C0400****

LOC-02 (DCONWS Diameter)

40 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-03 ISO

ZYL22G4000$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

1 Metric with coolant

LOC-03 (CZCMS Connection size code)

0400

LOC-03 (DCONMS Diameter)

40 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL04002215

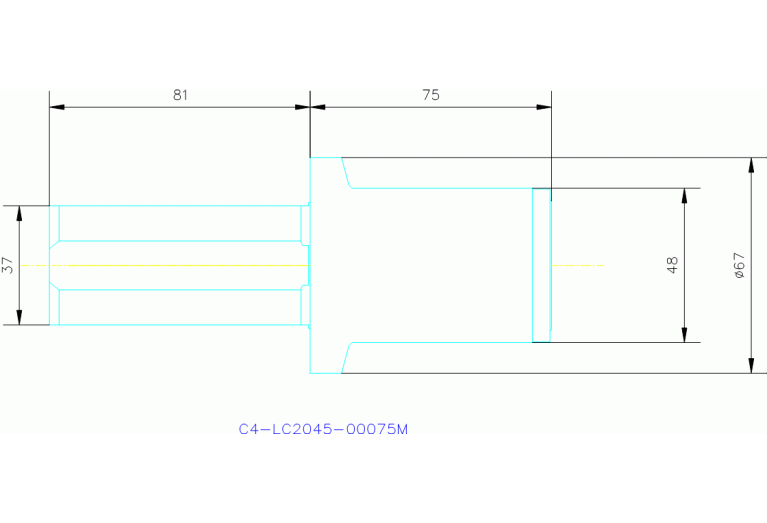

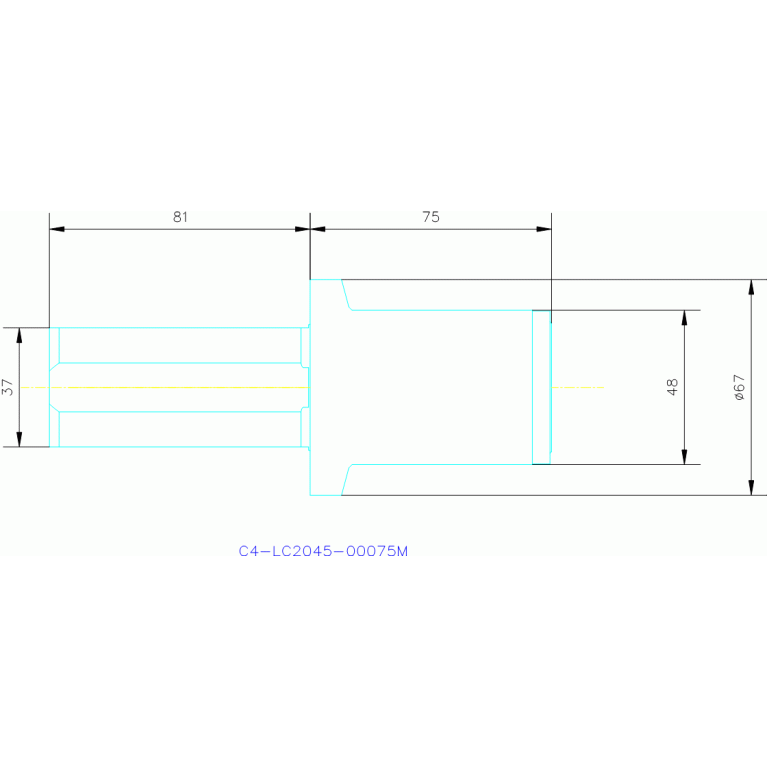

LS (Shank length)

81 mm

OAH (Overall height)

67 mm

OAL (Overall length)

156 mm

OAW (Overall width)

67 mm

Rotation (Rotation indicator)

0 - stationary tool

WF (Functional width)

0 mm

WT (Weight of item)

2.52 kg
