Главная Каталог продукции Sandvik Coromant 401-02 - Converter, stationary C4-ASHA-25046-10U

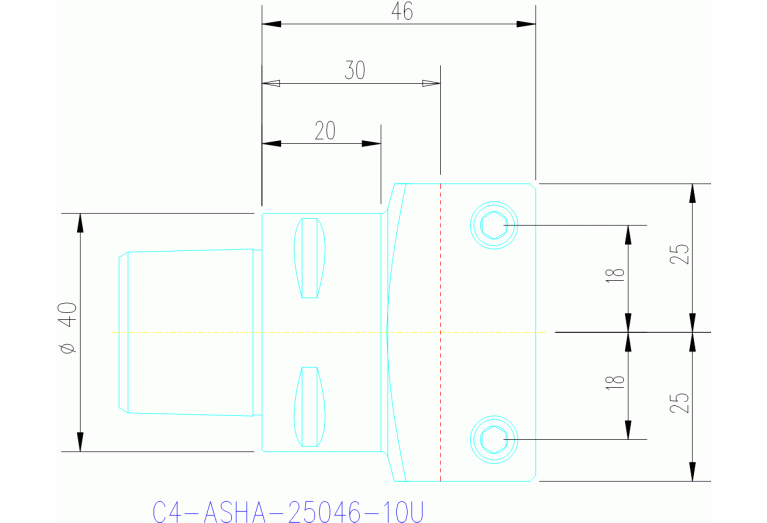

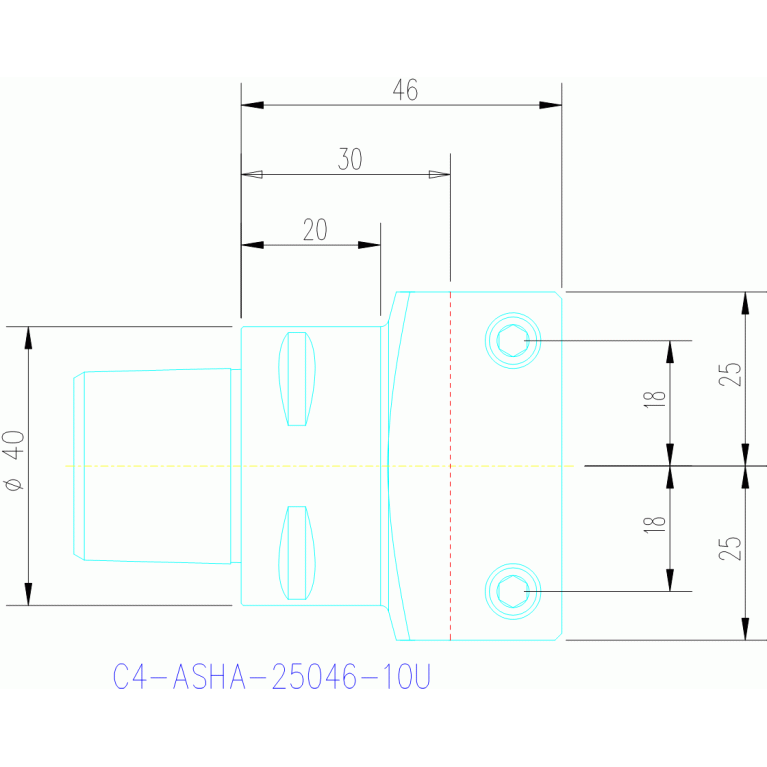

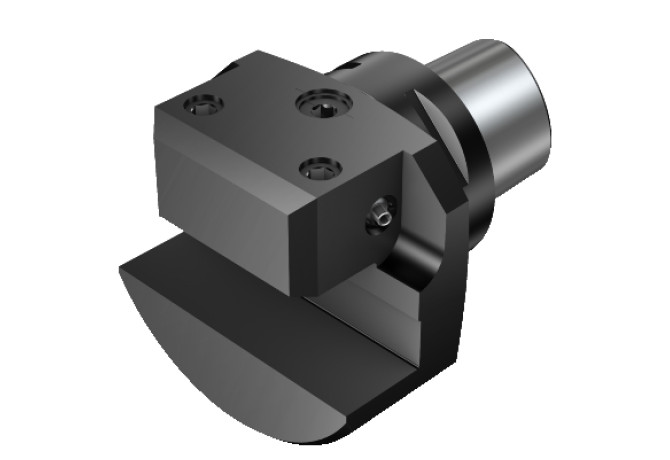

C4-ASHA-25046-10U

Артикул: 5727026

В наличии

В корзину

Описание

Характеристики

CCFWS (Connection code form)

CCONWS (Connection count workpiece side)

CCSWS (Connection code style)

CCTWS (Connection code type)

VKT

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

3 - With Coolant entry, axial concentric and radial

CXSC (Coolant exit style code)

6 - With coolant supply (discharge), peripheral/decentralized adjustable

CXSC (Coolant exit style code) / Тип подвода СОЖ

6 - With coolant supply (discharge), peripheral/decentralized adjustable

CZCWS (Connection size code)

1006

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

CCS04000195

HAND (Cutting direction)

N - Neutral

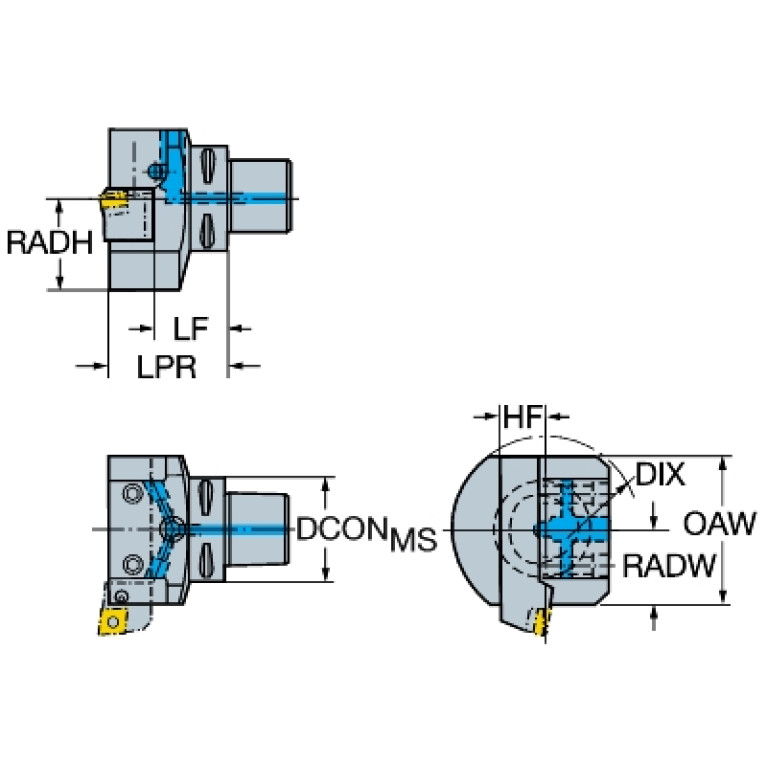

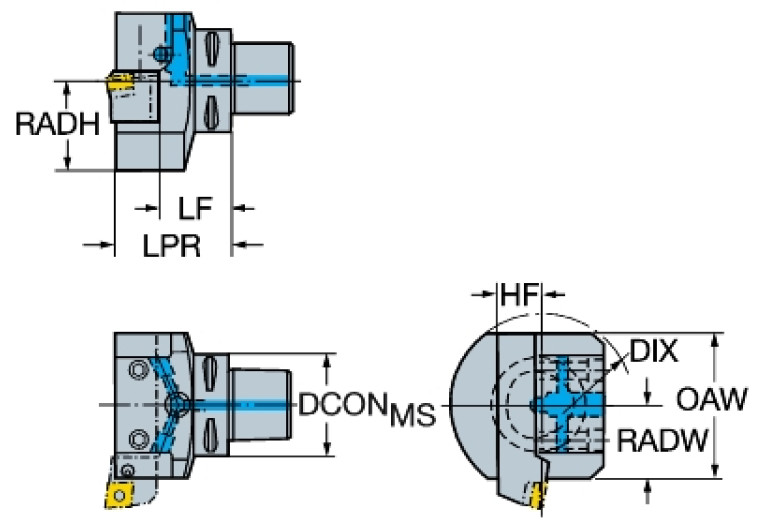

HF (Functional height)

15.875 mm

Interface codes

J6 / J61

ISO

CCS01C0400$$$$

LF (Functional length)

30 mm

LOC-01 ISO

VKT01B1006****VKT01B1012****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

VKT Square mounting

LOC-01 (CCUWS Connection code unit base)

3 Inch with coolant

LOC-01 (CZCWS Connection size code)

1006

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

VKT10060135VKT10120135

LOC-03 ISO

CCS01C0400$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0400

LOC-03 (DCONMS Diameter)

40 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS04000195

LPR (Protruding length)

46 mm

OAH (Overall height)

57 mm

OAL (Overall length)

70 mm

OAW (Overall width)

50 mm

RADH (Radial height)

32 mm

RADW (Radial width)

24.994 mm

WF (Functional width)

50 mm

WT (Weight of item)

0.7 kg
