Главная Каталог продукции Sandvik Coromant 401-02 - Converter, stationary C4-151.2-25040-21

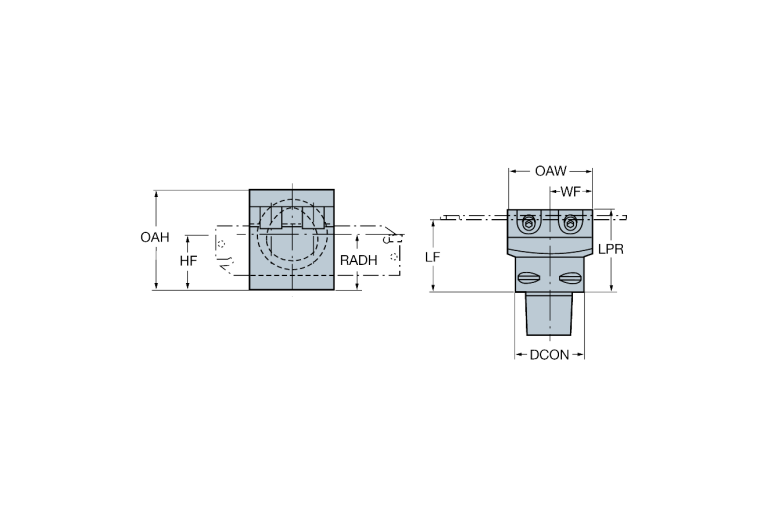

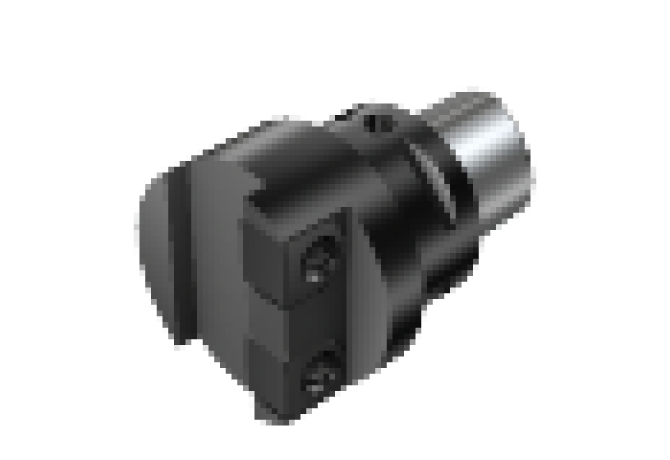

C4-151.2-25040-21

C4-151.2-25040-21 C4-151.2-25040-21 C4-151.2-25040-21

C4-151.2-25040-21

Sandvik Coromant
Артикул: 5727711
В наличии
В корзину
Описание
Характеристики
CCFWS (Connection code form)
01
CCONWS (Connection count workpiece side)
1
CCSWS (Connection code style)
5
CCTWS (Connection code type)
PMC
CCUWS (Connection code unit base)
8
CNSC (Coolant entry style code)
0 - Without coolant entry
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
CZCWS (Connection size code)
021R
DCP (Data chip provision)
0 - Without data chip
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
CCS04000185
HAND (Cutting direction)
L - Left
HF (Functional height)
21.4 mm
Interface codes
J6 / J61
ISO
CCS01C0400$$$$
LF (Functional length)
40.25 mm
LOC-01 ISO
PMC01C021R****
LOC-01 (CCFWS Connection code form)
01
LOC-01 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-01 (CCTWS Connection code type)
PMC Prism mounting SANDVIK Coromant
LOC-01 (CCUWS Connection code unit base)
8 non-dimensional size
LOC-01 (CZCWS Connection size code)
021R
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
PMC021R0185
LOC-02 ISO
PMC01C0210****
LOC-02 (CCFWS Connection code form)
01
LOC-02 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-02 (CCTWS Connection code type)
PMC Prism mounting SANDVIK Coromant
LOC-02 (CCUWS Connection code unit base)
8 non-dimensional size
LOC-02 (CZCWS Connection size code)
021R
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
PMC02100185
LOC-03 ISO
CCS01C0400$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
CCS Coromant Capto System SANDVIK
LOC-03 (CCUMS Connection code unit base)
8 non-dimensional size
LOC-03 (CZCMS Connection size code)
0400
LOC-03 (DCONMS Diameter)
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS04000185
LPR (Protruding length)
45.25 mm
OAH (Overall height)
55 mm
OAL (Overall length)
69.25 mm
OAW (Overall width)
50 mm
RADH (Radial height)
29.972 mm
WF (Functional width)
69.342 mm
WT (Weight of item)
0.682 kg
