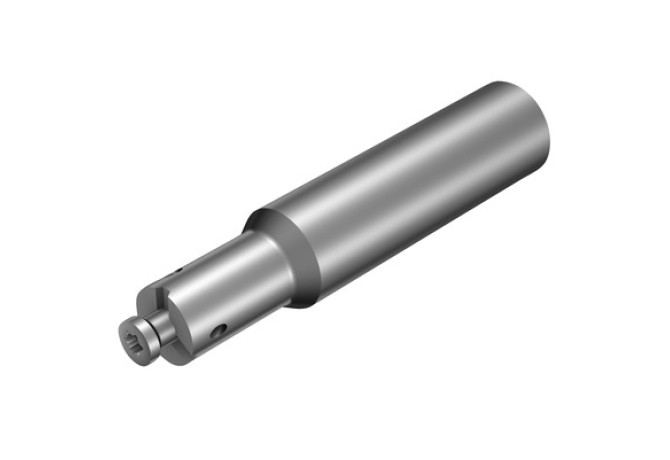

Главная Каталог продукции Sandvik Coromant 401-02 - Converter, stationary 327-16A24SC-12

327-16A24SC-12

327-16A24SC-12 327-16A24SC-12 327-16A24SC-12 327-16A24SC-12

327-16A24SC-12

Sandvik Coromant
Артикул: 8610064
В наличии
В корзину
Описание
Характеристики

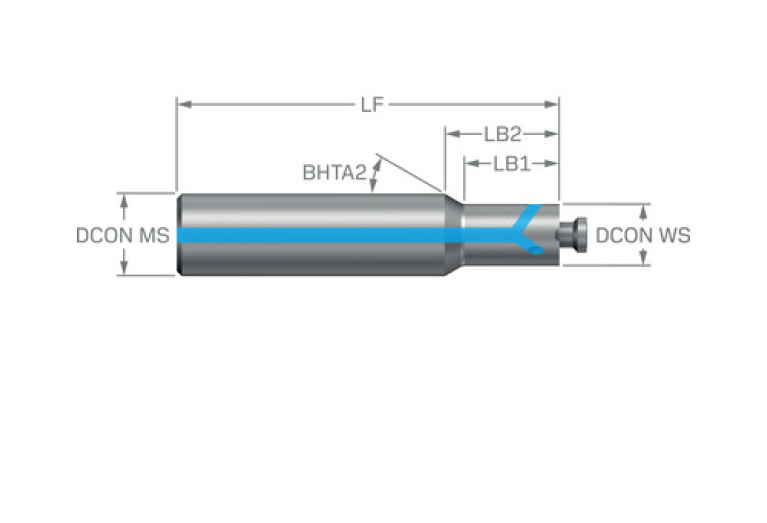

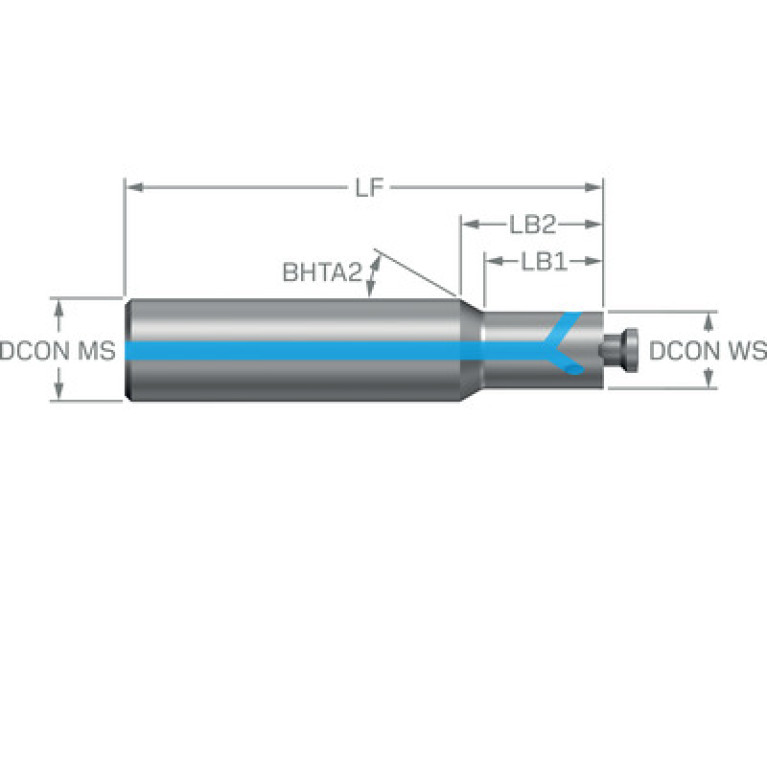

BD (Body diameter 2)
16.619 mm
BHTA (Body half taper angle 2)
30 Degree
BLDEV (Balancing device)
CCFWS (Connection code form)
02
CCSWS (Connection code style)
7
CCTWS (Connection code type)
CMS
CCUWS (Connection code unit base)
9
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
3 - With Coolant exit, axial and radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
3 - With Coolant exit, axial and radial
CZCWS (Connection size code)
0120
DCONWS (Diameter)
12 mm
DCONWS (Diameter) / Диаметр соединения со стороны заготовки
12 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
LH - Stocked
Delivery state valid from
12/1/2024
DIN
ZYL01600115
HAND (Cutting direction)
N - Neutral
Interface codes
J6 / J61
ISO
ZYL01G1600h$06
LB (Body length 1)
18.3 mm
LB (Length 2)
4 mm

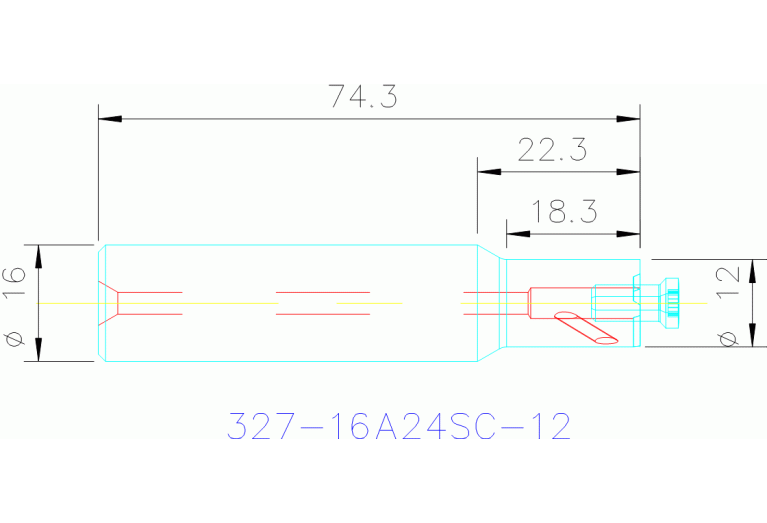

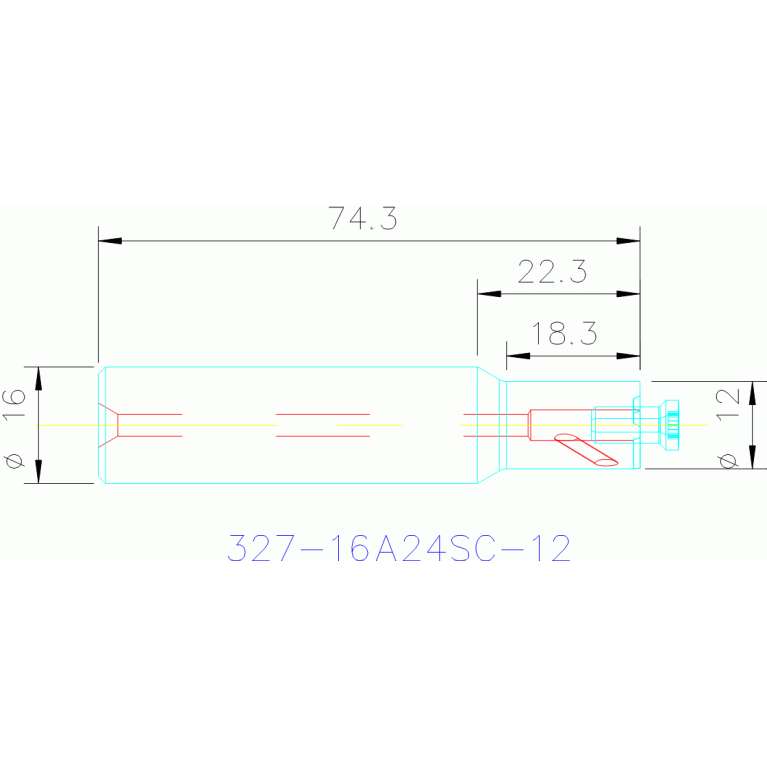

LF (Functional length)
74.3 mm
LOC-01 ISO
CMS02C0120****
LOC-01 (CCFWS Connection code form)
02
LOC-01 (CCSWS Connection code style)
7 Serrated connection
LOC-01 (CCTWS Connection code type)
CMS Coromant Modular boring SANDVIK
LOC-01 (CCUWS Connection code unit base)
9 non-dimensional size with coolant
LOC-01 (CZCWS Connection size code)
0120
LOC-01 (DCONWS Diameter)
12 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
CMS01200297
LOC-03 ISO
ZYL01G1600h$06
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
1 Metric with coolant
LOC-03 (CZCMS Connection size code)
0160
LOC-03 (DCONMS Diameter)
16 mm
LOC-03 (TCDCONCDMS Connection tolerance class coded)
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01600115
LPR (Protruding length)
25.3 mm
OAL (Overall length)
74.3 mm
TCDCONMS (ISO-tolerance class shank diameter)
h6
WT (Weight of item)
0.1 kg
Диаметр корпуса (BD) / Body diameter (BD)
12 mm
