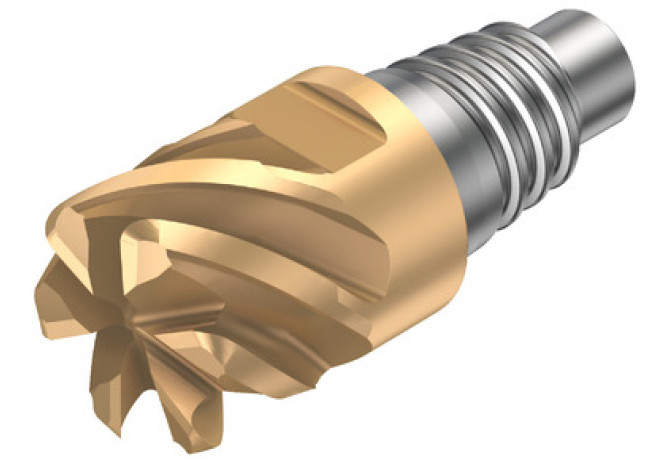

Главная Каталог продукции Sandvik Coromant 303-02 - Centre cutting end mill 316-25FM850-25010L 1030

316-25FM850-25010L 1030

316-25FM850-25010L 1030 316-25FM850-25010L 1030 316-25FM850-25010L 1030 316-25FM850-25010L 1030

316-25FM850-25010L 1030

Sandvik Coromant
Артикул: 5782718
В наличии
В корзину
Описание
Характеристики

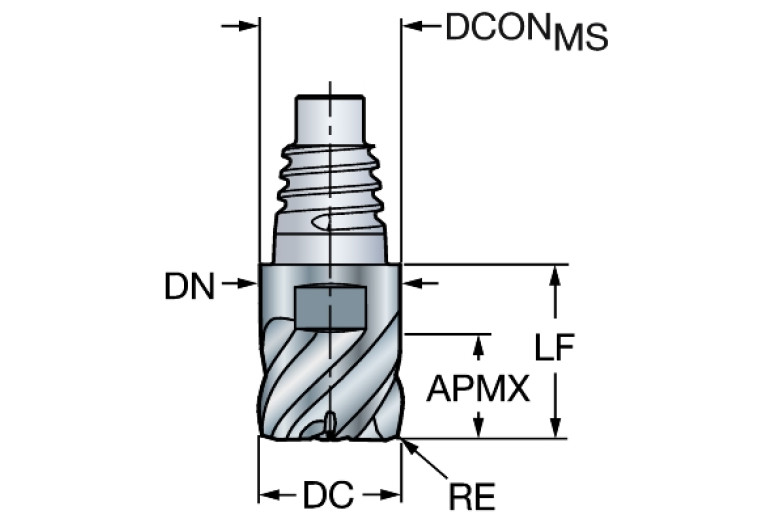

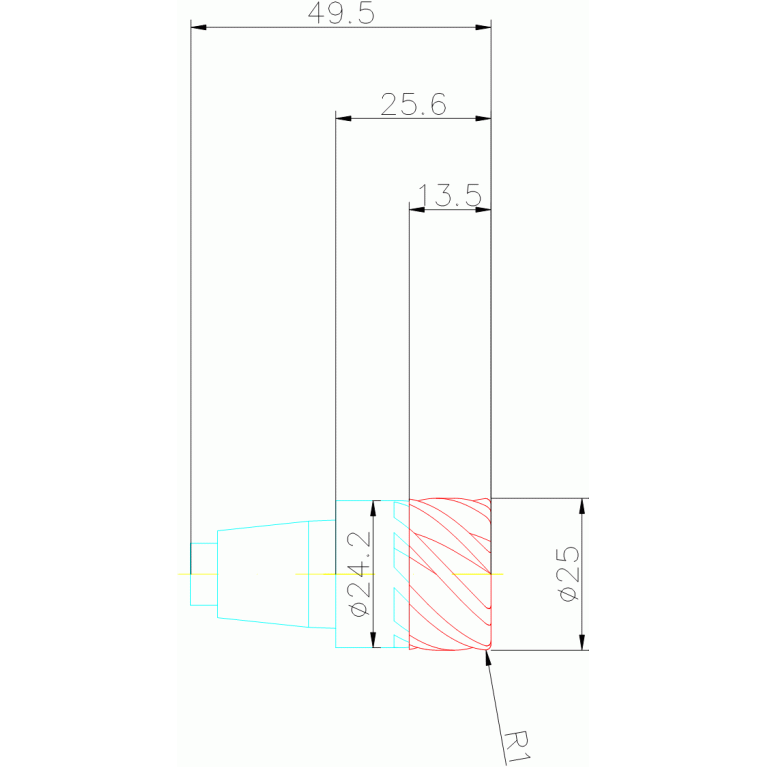

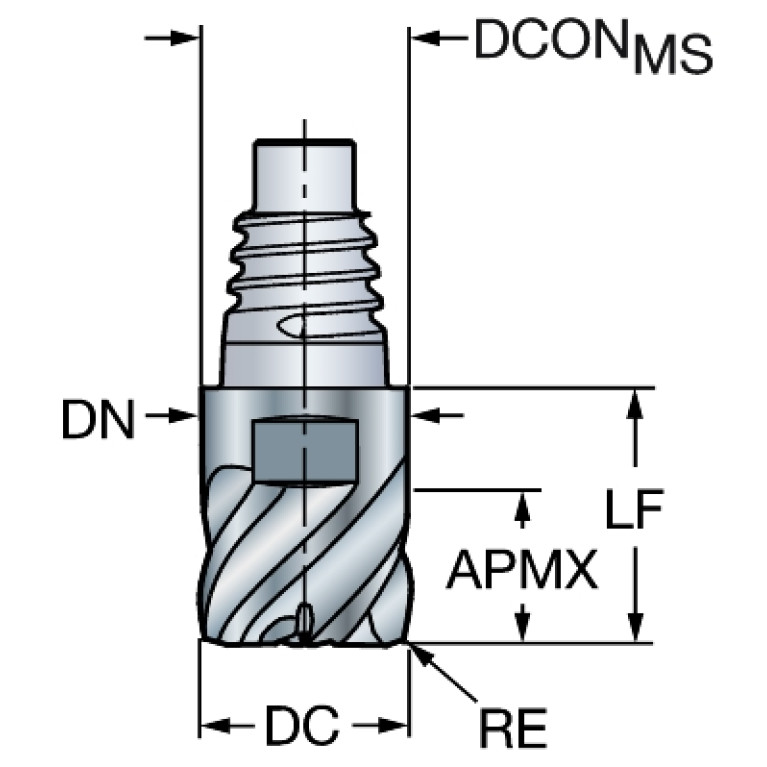

APMX (Depth of cut maximum)
13.5 mm
BMC (Body material code)
H - Solid carbide
CNSC (Coolant entry style code)
0 - Without coolant entry
COATN (Coating)
PVD TiAlN
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
DC (Cutting diameter)
25 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
LA - Soon discontinued
Delivery state valid from
12/1/2023
DIN
SAC02500405
DN (Neck diameter)
24.2 mm
F71 (Number of corner designs)
1
FHA (Flute helix angle)
50 Degree
FHH (Flute helix hand)
R - Hand of helix right
GAMF (Rake angle radial)
10.5 Degree
GAMP (Rake angle axial)
13.5 Degree
GRDMFG (Grade manufacturers designation)
1030
GRDPRIO (Standard designation of the grade main application)
HC
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
SAC04A0250$$$$
LF (Functional length)
25.6 mm
LOC-03 ISO
SAC04A0250$$$$
LOC-03 (CCFMS Connection code form)
04
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
SAC Screw mounting SANDVIK Coromant
LOC-03 (CCUMS Connection code unit base)
0 Metric
LOC-03 (CZCMS Connection size code)
0250
LOC-03 (DCONMS Diameter)
24.2 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAC02500405
LPR (Protruding length)
25.6 mm
Materials
P,M,K,S
OAL (Overall length)
49.6 mm
RE (Corner radius)
1 mm
RPMX (Rotational speed maximum)
80000 1/min
Working process
FEC - Square shoulder milling,FPL - Face milling
WT (Weight of item)
0.222 kg
ZEFF (Face effective cutting edge count)
8
ZEFP (Peripheral effective cutting edge count)
8
