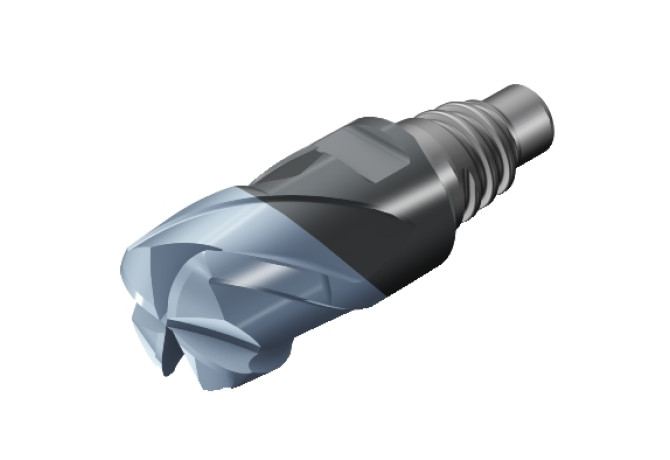

Главная Каталог продукции Sandvik Coromant 303-02 - Centre cutting end mill 316-20HM438-20020D S1KU

316-20HM438-20020D S1KU

Артикул: 8119792

В наличии

В корзину

Описание

Характеристики

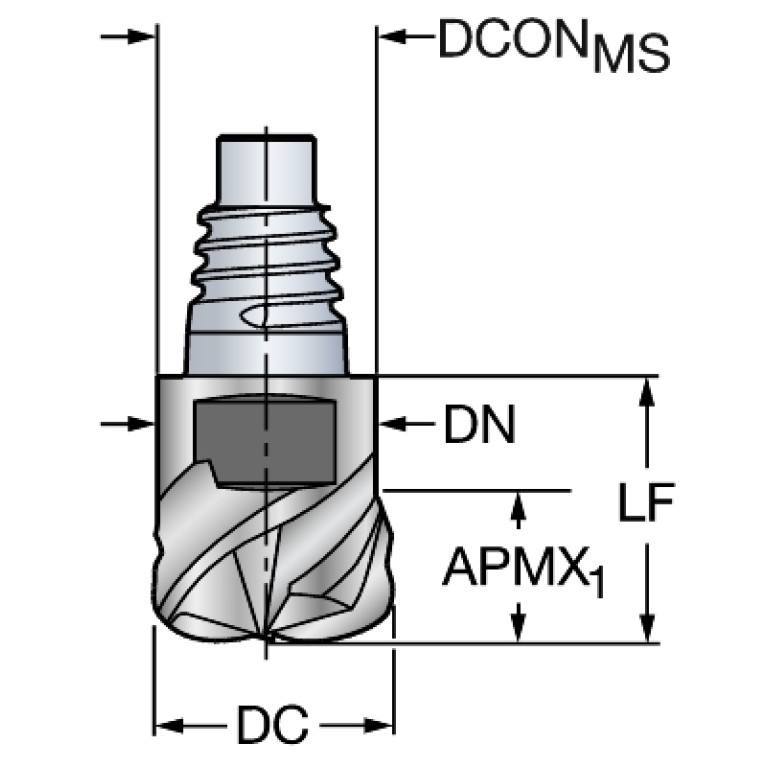

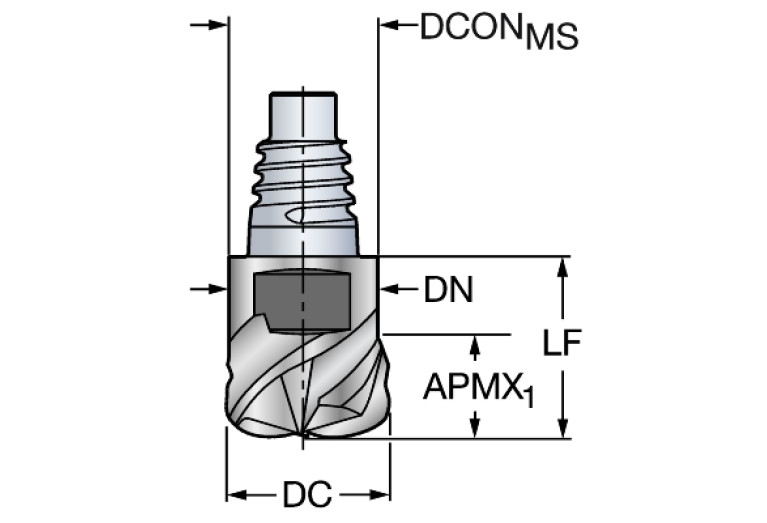

APMX (Depth of cut maximum)

1.3 mm

BMC (Body material code)

H - Solid carbide

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DC (Cutting diameter)

20 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

SAC02000405

DN (Neck diameter)

19.5 mm

F71 (Number of corner designs)

FHA (Flute helix angle)

38 Degree

FHH (Flute helix hand)

R - Hand of helix right

GAMF (Rake angle radial)

-5 Degree

GAMP (Rake angle axial)

3 Degree

GRDMFG (Grade manufacturers designation)

S1KU

GRDPRIO (Standard designation of the grade main application)

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

SAC04A0200$$$$

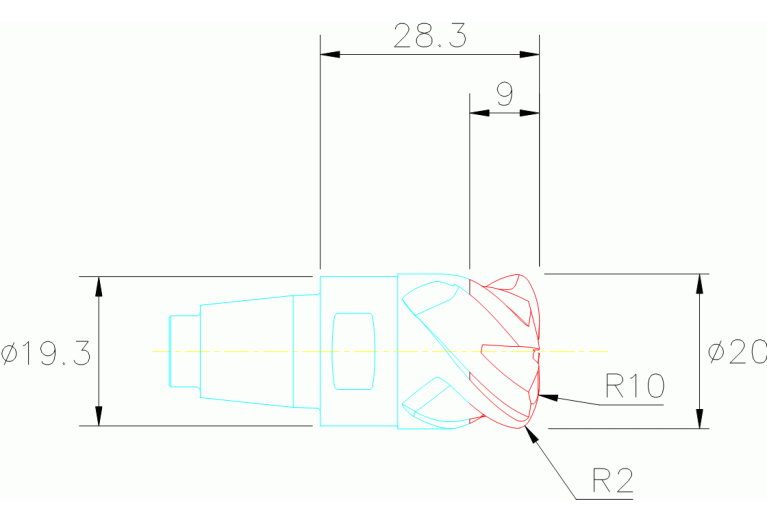

LF (Functional length)

28.3 mm

LOC-03 ISO

SAC04A0200$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

SAC Screw mounting SANDVIK Coromant

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0200

LOC-03 (DCONMS Diameter)

19.3 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAC02000405

LPR (Protruding length)

28.3 mm

Materials

OAL (Overall length)

47.8 mm

RE (Corner radius)

2 mm

RMPX (Ramping angle maximum)

3 Degree

RPMX (Rotational speed maximum)

35000 1/min

Working process

FEC - Square shoulder milling,FNB - Slotting,FNU - Groove milling,FPL - Face milling

WT (Weight of item)

0.133 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
