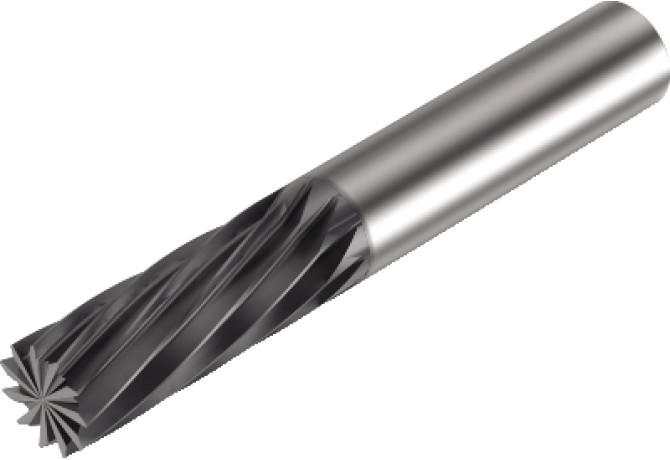

Главная Каталог продукции Sandvik Coromant 303-02 - Centre cutting end mill 2P051-1000-OA O10A

2P051-1000-OA O10A

Артикул: 7254433

В наличии

В корзину

Описание

Характеристики

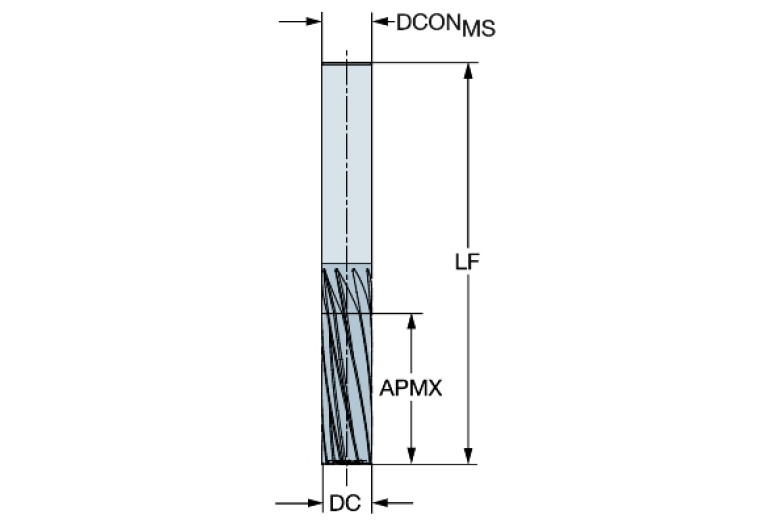

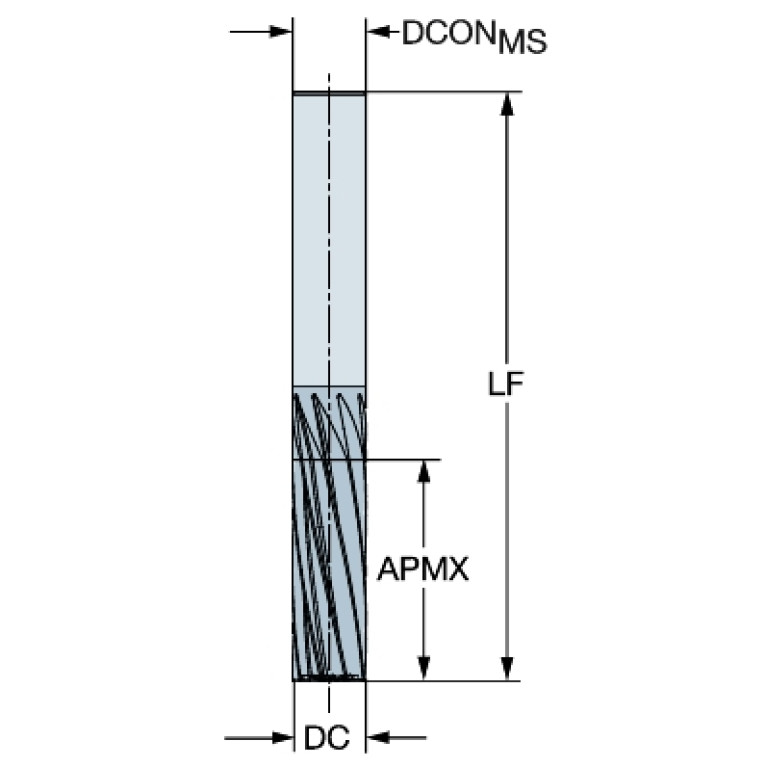

APMX (Depth of cut maximum)

30 mm

BMC (Body material code)

H - Solid carbide

CNSC (Coolant entry style code)

0 - Without coolant entry

COATN (Coating)

CVD DCT Sp3

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DC (Cutting diameter)

10 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

ZYL01000105

F71 (Number of corner designs)

FHA (Flute helix angle)

-4 Degree

FHH (Flute helix hand)

L - Hand of helix left

GAMF (Rake angle radial)

10 Degree

GAMP (Rake angle axial)

-4 Degree

GRDMFG (Grade manufacturers designation)

O10A

GRDPRIO (Standard designation of the grade main application)

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL01G1000h$06

LF (Functional length)

80 mm

LOC-03 ISO

ZYL01G1000h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0100

LOC-03 (DCONMS Diameter)

10 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01000105

LPR (Protruding length)

40 mm

LS (Shank length)

40 mm

Materials

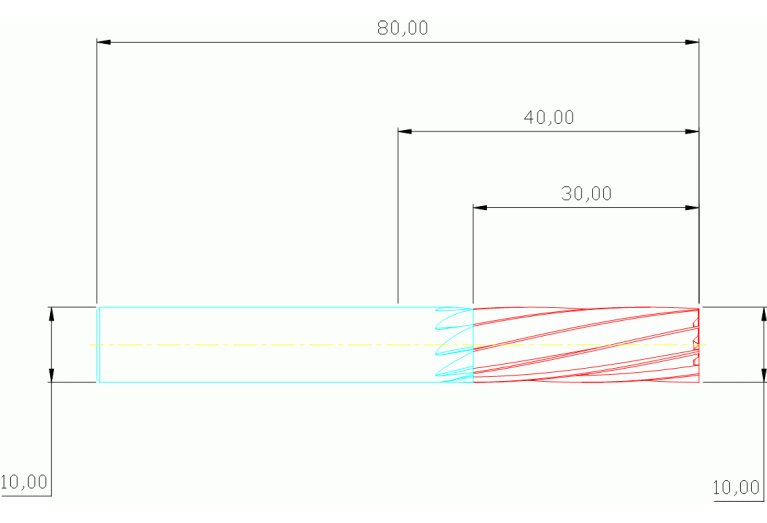

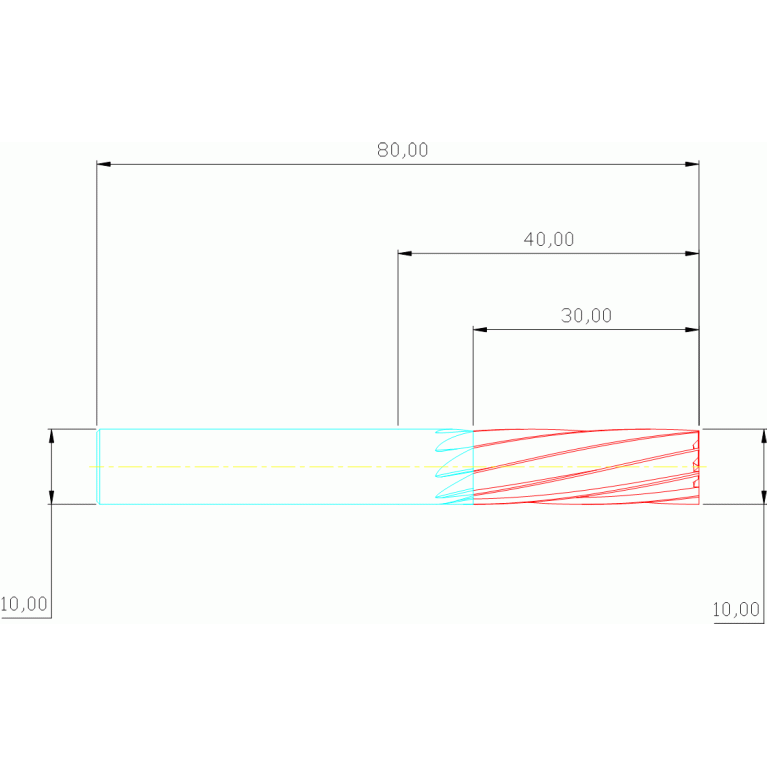

OAL (Overall length)

80 mm

RMPX (Ramping angle maximum)

5 Degree

RPMX (Rotational speed maximum)

24000 1/min

TCDCONMS (ISO-tolerance class shank diameter)

Working process

FEC - Square shoulder milling,FNB - Slotting,FNU - Groove milling,FPL - Face milling

WT (Weight of item)

0.071 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
