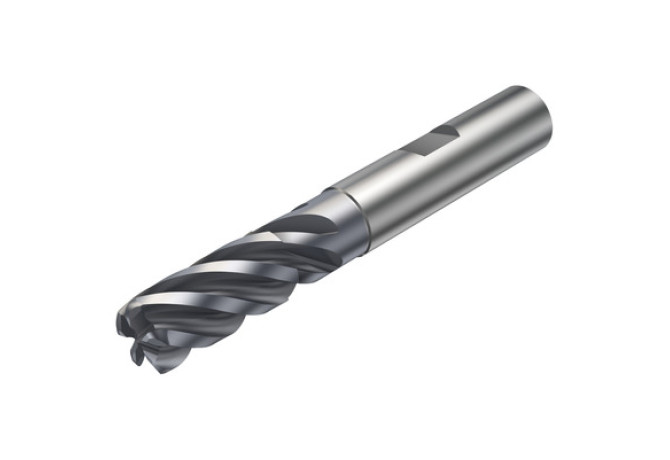

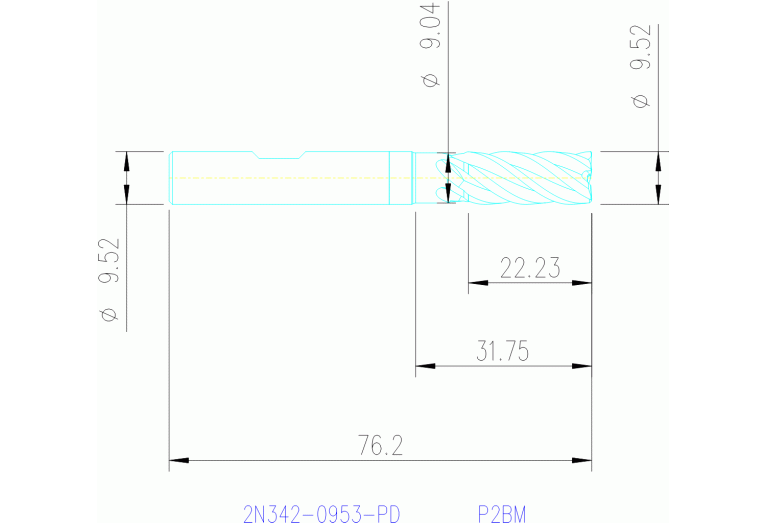

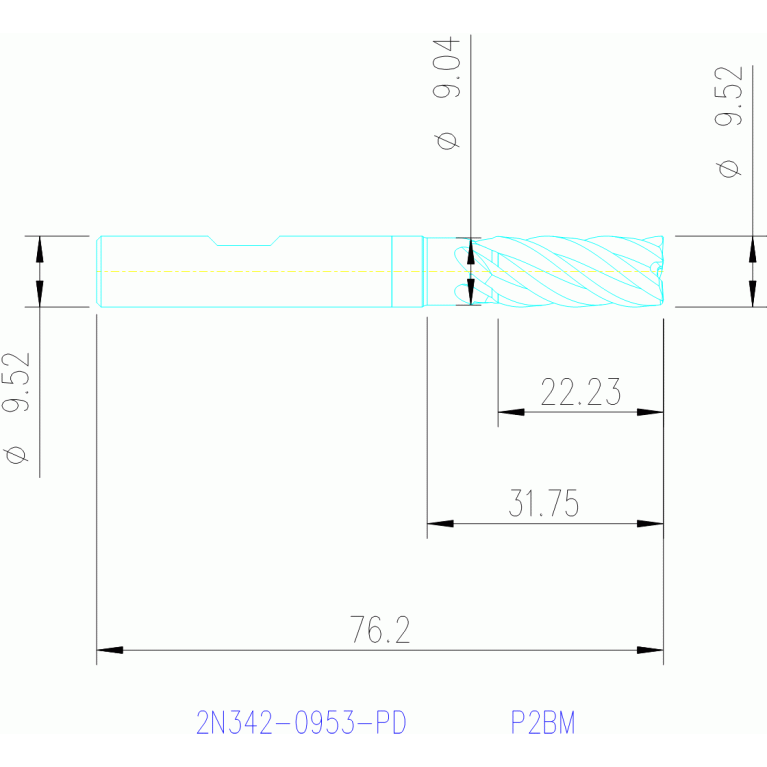

2N342-0953-PD P2BM

Артикул: 8351805

В наличии

В корзину

Описание

Характеристики

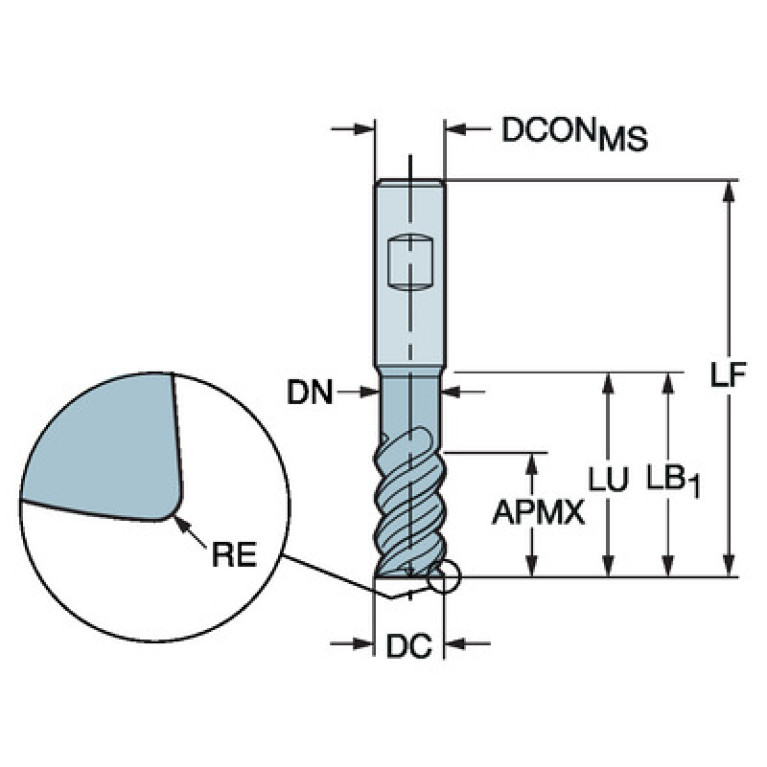

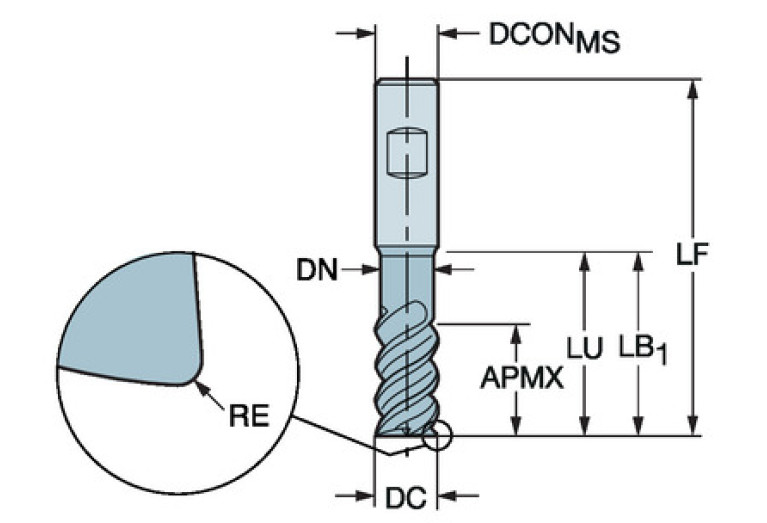

APMX (Depth of cut maximum)

22.3 mm

BMC (Body material code)

H - Solid carbide

CHW (Corner chamfer width)

0.15 mm

CNSC (Coolant entry style code)

0 - Without coolant entry

COATN (Coating)

PVD TiAlCrSiN

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DC (Cutting diameter)

9.525 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

ZYL03751025

DN (Neck diameter)

9.042 mm

F71 (Number of corner designs)

FHA (Flute helix angle)

38 Degree

FHH (Flute helix hand)

R - Hand of helix right

GAMF (Rake angle radial)

10.5 Degree

GAMP (Rake angle axial)

10.5 Degree

GRDMFG (Grade manufacturers designation)

P2BM

GRDPRIO (Standard designation of the grade main application)

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL10R3750h$06

KCH (Corner chamfer angle)

45 Degree

LF (Functional length)

56.356 mm

LN (Neck length)

31.332 mm

LOC-03 ISO

ZYL10R3750h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

2 Inch

LOC-03 (CZCMS Connection size code)

0375

LOC-03 (DCONMS Diameter)

9.525 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03751025

LPR (Protruding length)

36.5 mm

LS (Shank length)

39.7 mm

Materials

P,K

OAL (Overall length)

76.2 mm

RMPX (Ramping angle maximum)

7 Degree

RPMX (Rotational speed maximum)

55900 1/min

TCDCONMS (ISO-tolerance class shank diameter)

Working process

FEC - Square shoulder milling,FNB - Slotting,FNU - Groove milling,FPL - Face milling

WT (Weight of item)

0.074 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
