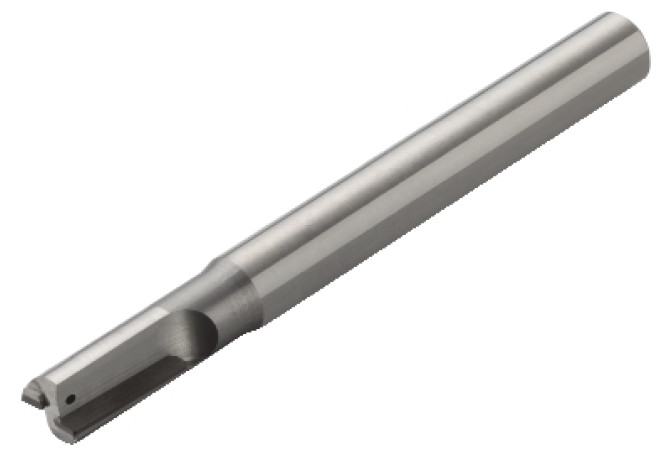

Главная Каталог продукции Sandvik Coromant 303-02 - Centre cutting end mill 2N012-1588-COA CD15

2N012-1588-COA CD15

Артикул: 6539059

В наличии

В корзину

Описание

Характеристики

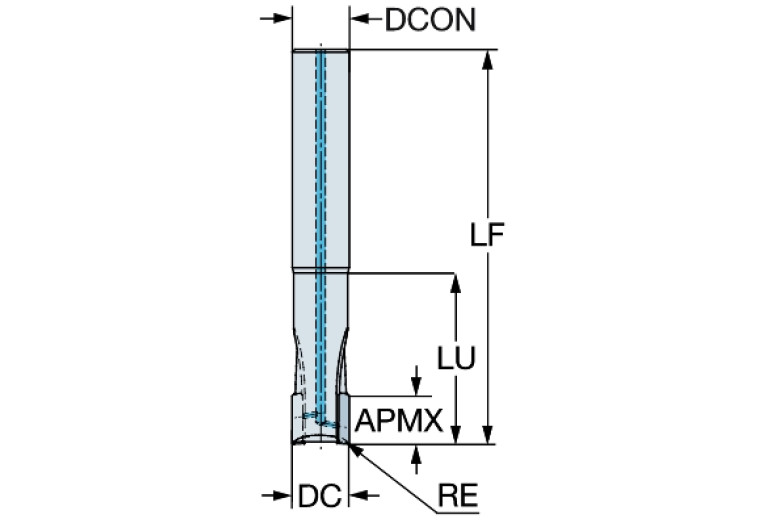

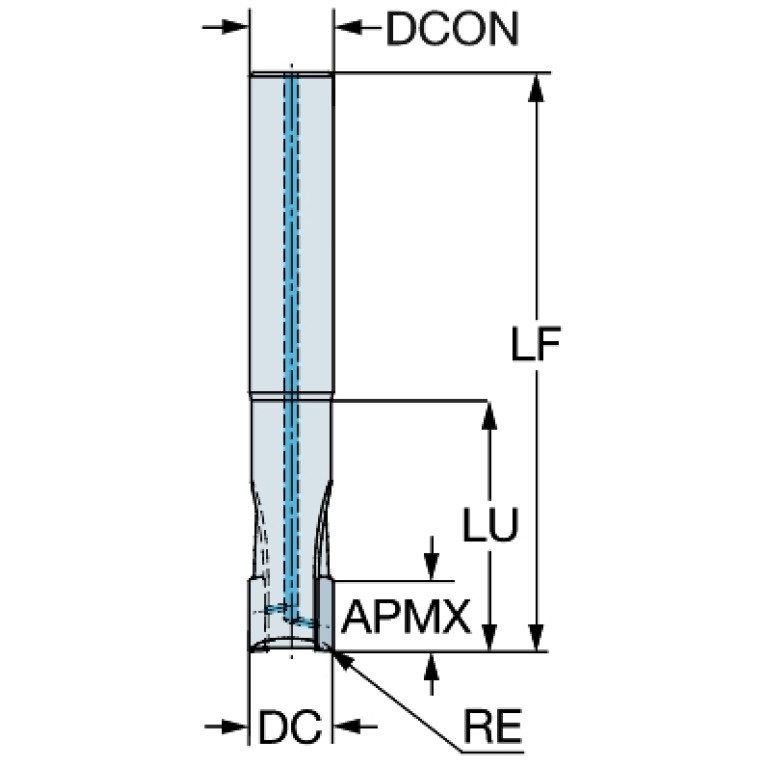

APMX (Depth of cut maximum)

10 mm

BMC (Body material code)

H - Solid carbide

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

DC (Cutting diameter)

15.88 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

ZYL06250135

DN (Neck diameter)

15 mm

F71 (Number of corner designs)

FHA (Flute helix angle)

5 Degree

FHH (Flute helix hand)

R - Hand of helix right

GAMF (Rake angle radial)

5 Degree

GAMP (Rake angle axial)

3 Degree

GRDMFG (Grade manufacturers designation)

CD15

GRDPRIO (Standard designation of the grade main application)

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL01R6250h$06

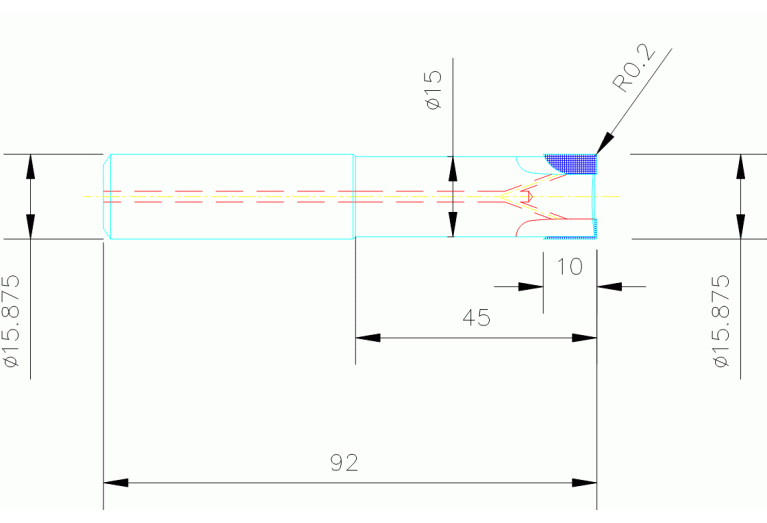

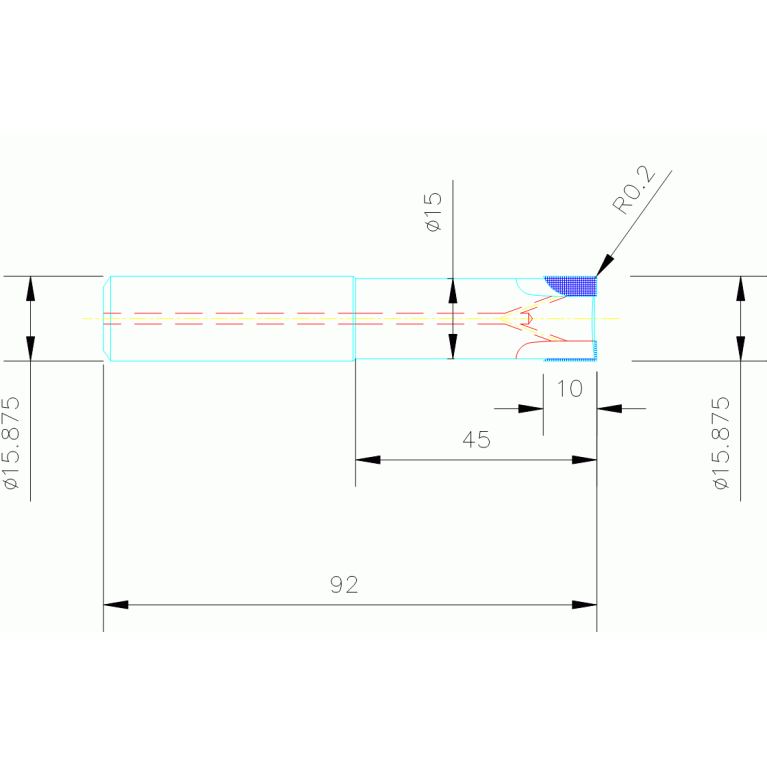

LF (Functional length)

92 mm

LOC-03 ISO

ZYL01R6250h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

3 Inch with coolant

LOC-03 (CZCMS Connection size code)

0625

LOC-03 (DCONMS Diameter)

15.875 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL06250135

LPR (Protruding length)

45 mm

LS (Shank length)

45 mm

OAL (Overall length)

92 mm

RE (Corner radius)

0.2 mm

RMPX (Ramping angle maximum)

5 Degree

RPMX (Rotational speed maximum)

80000 1/min

TCDCONMS (ISO-tolerance class shank diameter)

Working process

FEC - Square shoulder milling,FNB - Slotting,FNU - Groove milling,FPL - Face milling

WT (Weight of item)

0.259 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
