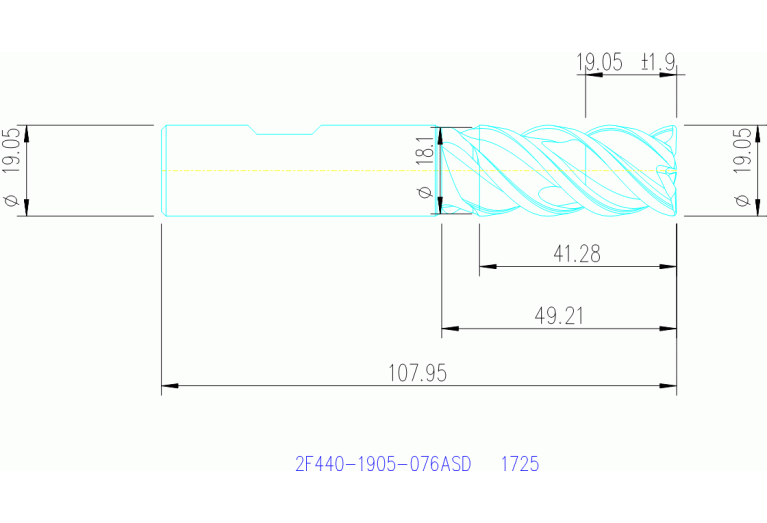

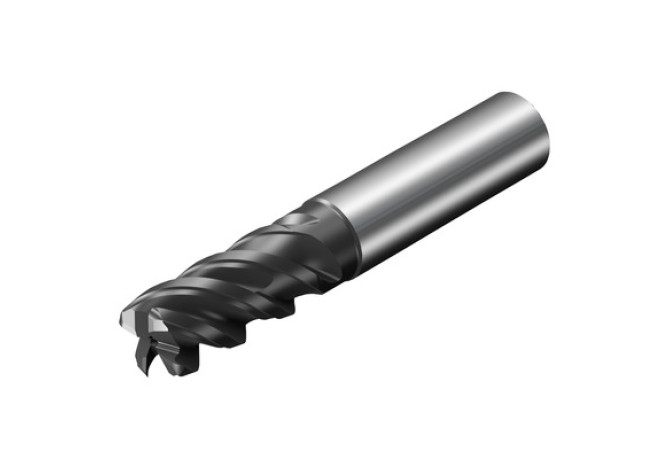

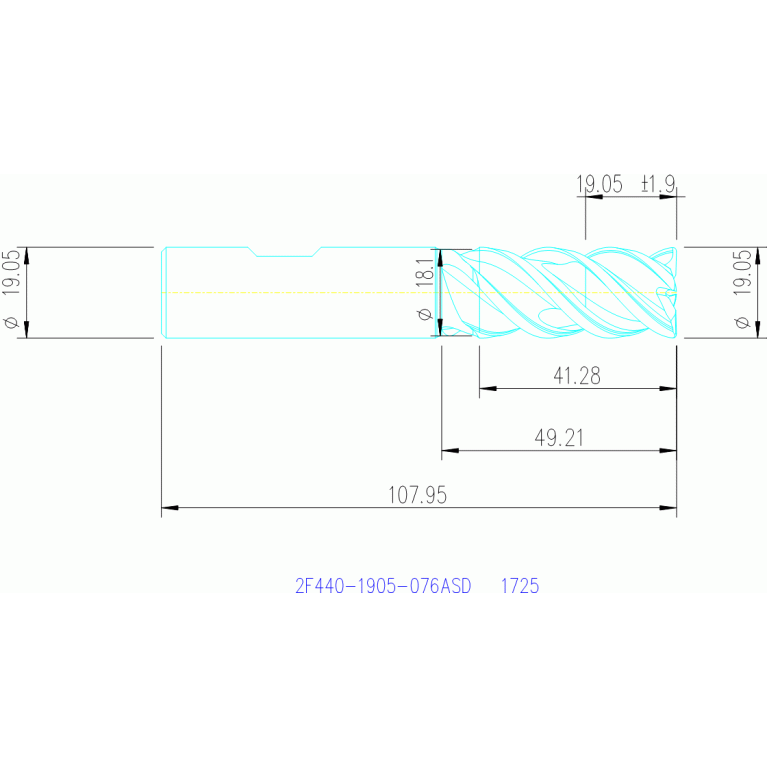

2F440-1905-076ASD 1725

Артикул: 7858320

В наличии

В корзину

Описание

Характеристики

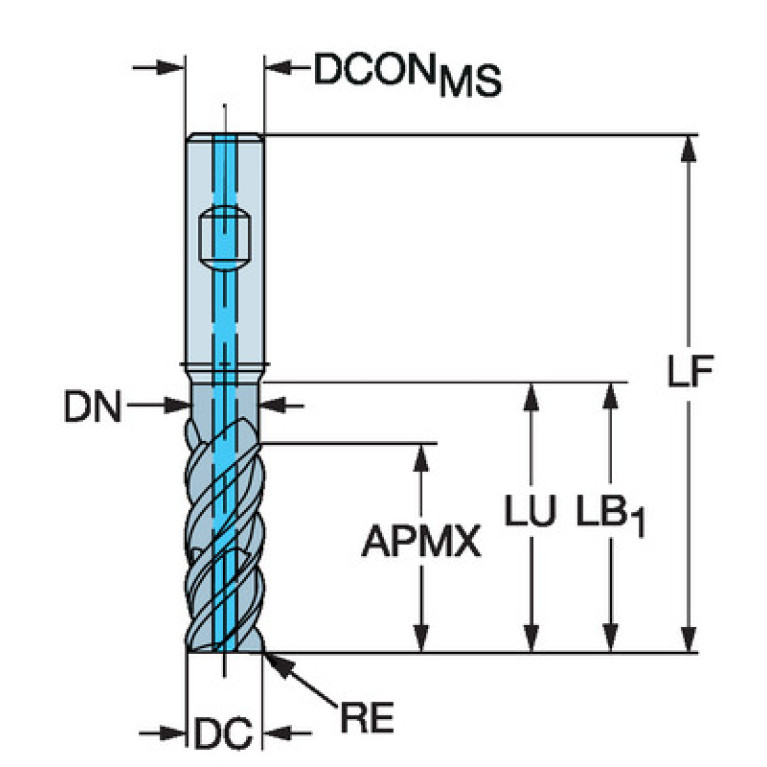

APMX (Depth of cut maximum)

41.275 mm

BMC (Body material code)

H - Solid carbide

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

COATN (Coating)

PVD TiAlN

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

DC (Cutting diameter)

19.05 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

ZYL07501035

DN (Neck diameter)

18.1 mm

F71 (Number of corner designs)

FHA (Flute helix angle)

48 Degree

FHH (Flute helix hand)

R - Hand of helix right

GAMF (Rake angle radial)

10.5 Degree

GAMP (Rake angle axial)

13.5 Degree

GRDMFG (Grade manufacturers designation)

1725

GRDPRIO (Standard designation of the grade main application)

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL10R7500h$06

LF (Functional length)

82.153 mm

LN (Neck length)

48.389 mm

LOC-03 ISO

ZYL10R7500h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

3 Inch with coolant

LOC-03 (CZCMS Connection size code)

0750

LOC-03 (DCONMS Diameter)

19.05 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL07501035

LPR (Protruding length)

58.738 mm

LS (Shank length)

51.6 mm

Materials

OAL (Overall length)

107.95 mm

RE (Corner radius)

0.762 mm

RMPX (Ramping angle maximum)

5 Degree

RPMX (Rotational speed maximum)

40000 1/min

TCDCONMS (ISO-tolerance class shank diameter)

Working process

FEC - Square shoulder milling,FNB - Slotting,FNU - Groove milling,FPL - Face milling

WT (Weight of item)

0.368 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
