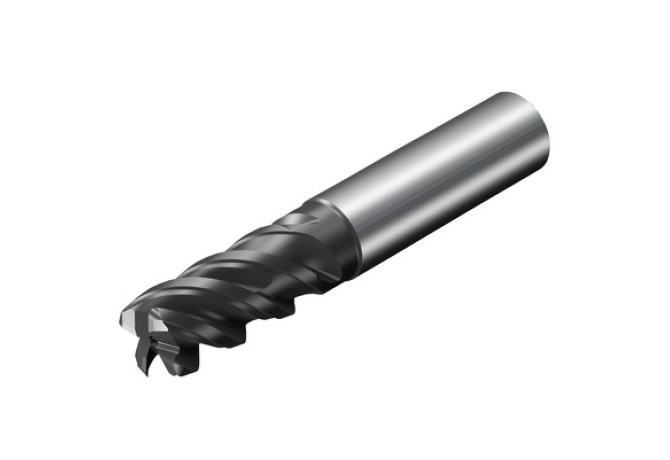

Главная Каталог продукции Sandvik Coromant 303-02 - Centre cutting end mill 2F440-1200-050ASD 1725

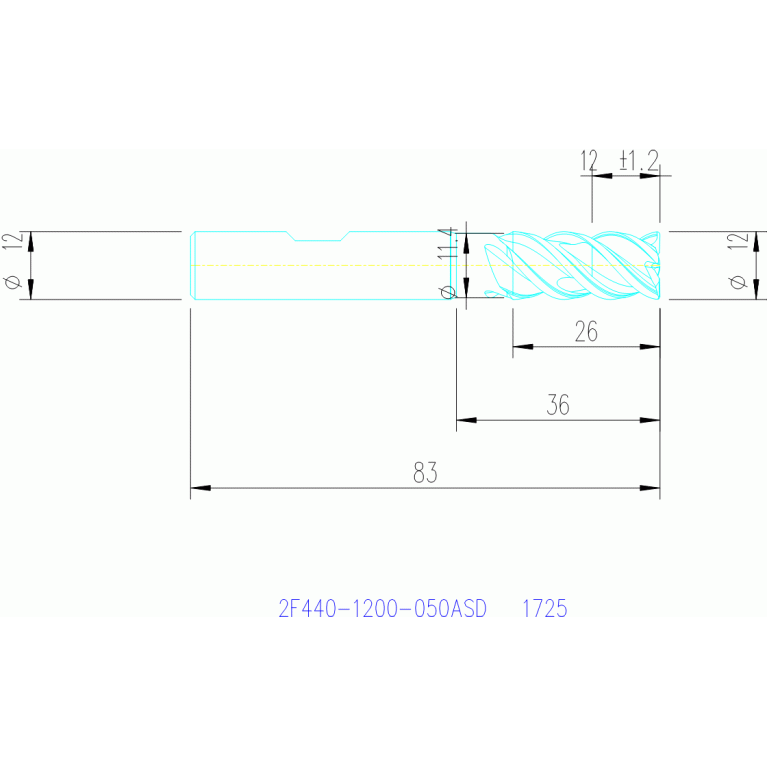

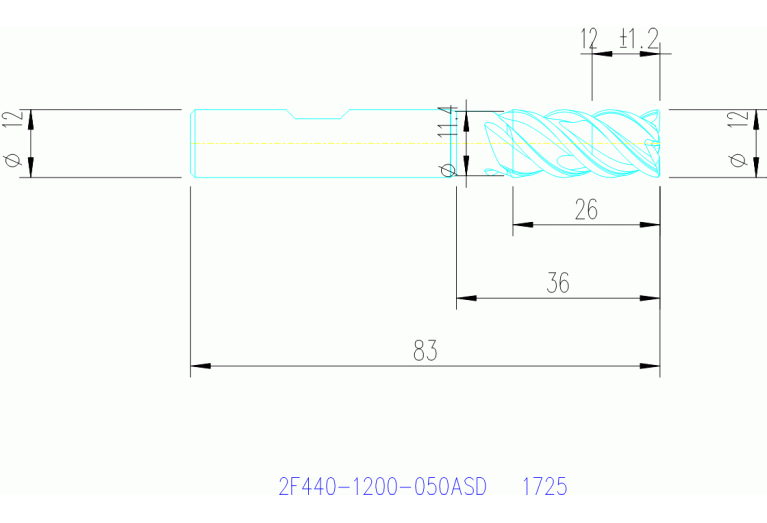

2F440-1200-050ASD 1725

Артикул: 7858278

В наличии

В корзину

Описание

Характеристики

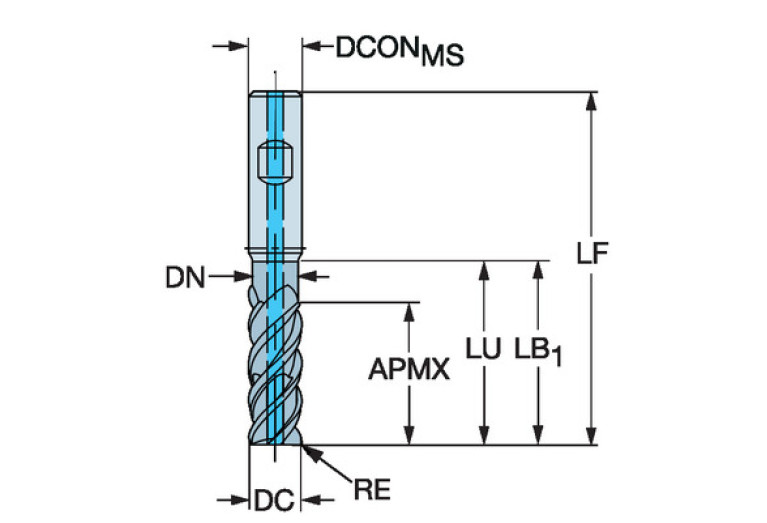

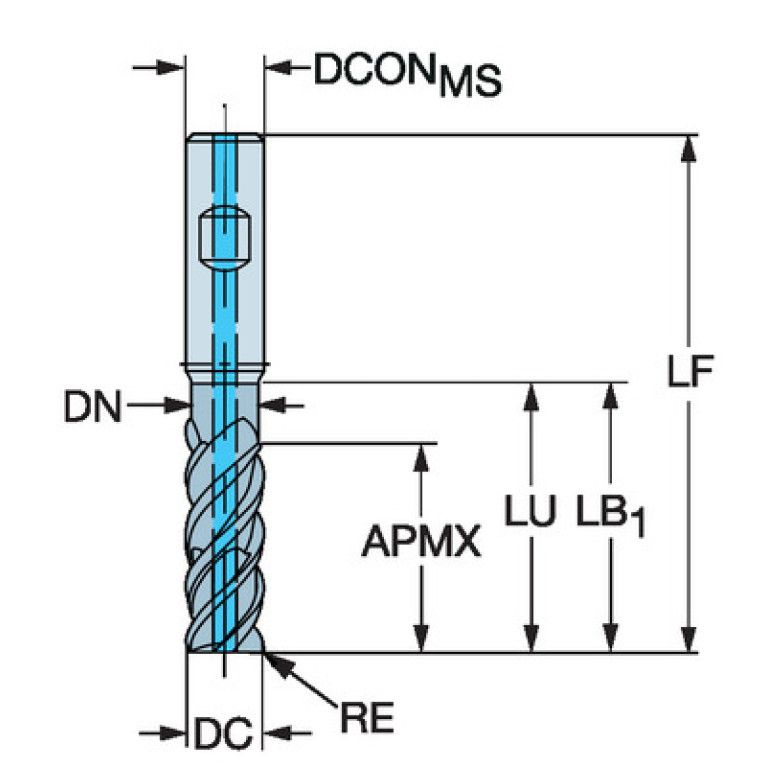

APMX (Depth of cut maximum)

26 mm

BMC (Body material code)

H - Solid carbide

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

COATN (Coating)

PVD TiAlN

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

DC (Cutting diameter)

12 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

ZYL01201015

DN (Neck diameter)

11.4 mm

F71 (Number of corner designs)

FHA (Flute helix angle)

48 Degree

FHH (Flute helix hand)

R - Hand of helix right

GAMF (Rake angle radial)

10.5 Degree

GAMP (Rake angle axial)

13.5 Degree

GRDMFG (Grade manufacturers designation)

1725

GRDPRIO (Standard designation of the grade main application)

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL10G1200h$06

LF (Functional length)

60.5 mm

LN (Neck length)

35.48 mm

LOC-03 ISO

ZYL10G1200h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

1 Metric with coolant

LOC-03 (CZCMS Connection size code)

0120

LOC-03 (DCONMS Diameter)

12 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01201015

LPR (Protruding length)

38 mm

LS (Shank length)

45 mm

Materials

OAL (Overall length)

83 mm

RE (Corner radius)

0.5 mm

RMPX (Ramping angle maximum)

5 Degree

RPMX (Rotational speed maximum)

40000 1/min

TCDCONMS (ISO-tolerance class shank diameter)

Working process

FEC - Square shoulder milling,FNB - Slotting,FNU - Groove milling,FPL - Face milling

WT (Weight of item)

0.104 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
