Главная Каталог продукции Sandvik Coromant 301-02 - Thread cutting tap with reinforced shank T200-PM108AE-5/16 P1PM

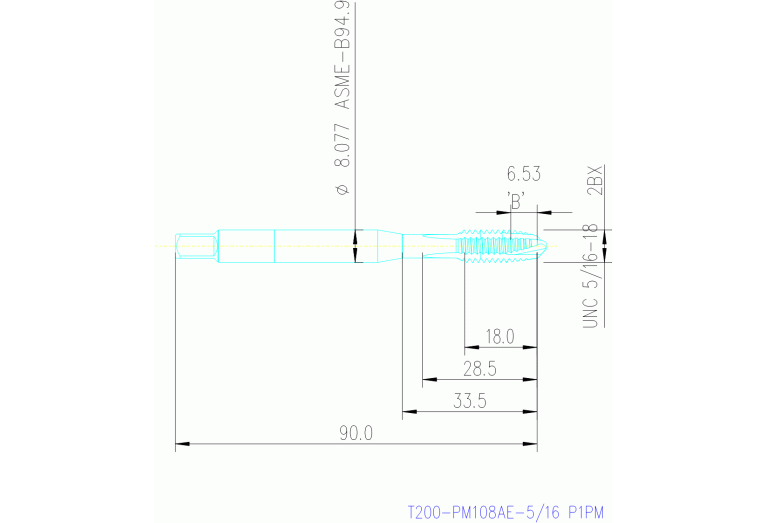

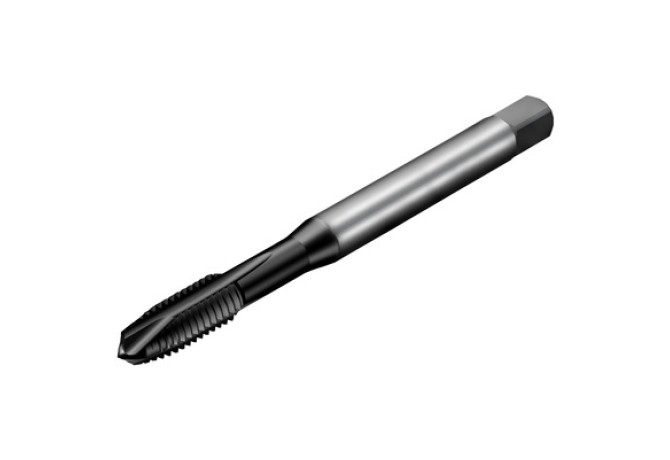

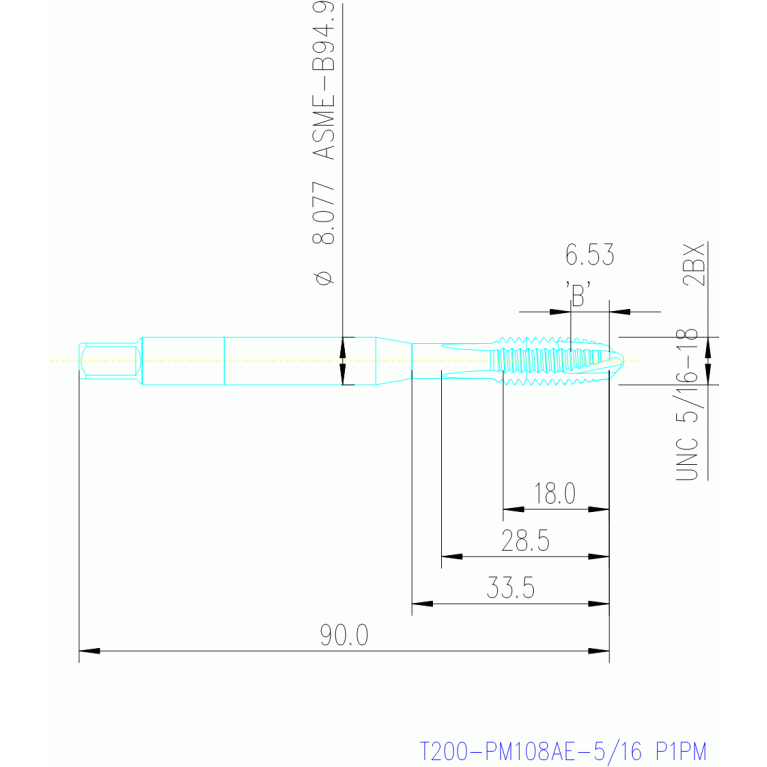

T200-PM108AE-5/16 P1PM

T200-PM108AE-5/16 P1PM T200-PM108AE-5/16 P1PM T200-PM108AE-5/16 P1PM T200-PM108AE-5/16 P1PM

T200-PM108AE-5/16 P1PM

Sandvik Coromant
Артикул: 8061107
В наличии
В корзину
Описание
Характеристики
BMC (Body material code)
S - Solid steel
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
COATN (Coating)
PVD TiAlN
CXSC (Coolant exit style code)
2 - With Coolant exit, radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
2 - With Coolant exit, radial
DCP (Data chip provision)
0 - Without data chip
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
ZYL03182135
DRVS (Drive size)
6.045 mm
FHA (Flute helix angle)
0 Degree
FHH (Flute helix hand)
N - Hand of helix neutral
GRDMFG (Grade manufacturers designation)
P1PM
GRDPRIO (Standard designation of the grade main application)
HSS-E-PM
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
ZYL21R3180$$$$
LDRED (Neck length)
33.5 mm
LOC-03 ISO
ZYL21R3180$$$$
LOC-03 (CCFMS Connection code form)
21
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
3 Inch with coolant
LOC-03 (CZCMS Connection size code)
0318
LOC-03 (DCONMS Diameter)
8.077 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03182135
LS (Shank length)
24.652 mm
Materials
P
NOF (Flute count)
3
OAL (Overall length)
90 mm
PLCD (Gate diameter)
6.6 mm
PLG (Plug style)
B - Kappa r 8°
TCL (Tap chamfer length)
6.163 mm
TCTR (Thread tolerance class)
2BX
TD (Thread diameter)
7.938 mm
TDFR (Thread diameter nominal fraction)
5/16 in
THFT (Thread form type)
UNC
THL (Thread cutting part length)
18 mm
THOD (Thread designation)
UNC5/16-18-2BX
TP (Thread pitch)
1.411 mm
TPI (Threads per inch)
18 1/in
TTPID (Tap type identifier)
1 - Machine tap
Working process
BG - Tapping,BGD - Thread cutting, through hole,BGS - Thread cutting, blind hole
WT (Weight of item)
0.033 kg
