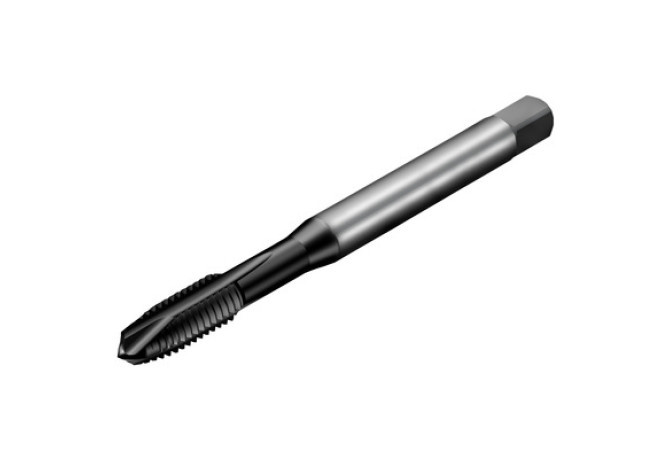

Главная Каталог продукции Sandvik Coromant 301-02 - Thread cutting tap with reinforced shank T200-PM100DA-M1.4 P1PM

T200-PM100DA-M1.4 P1PM

T200-PM100DA-M1.4 P1PM T200-PM100DA-M1.4 P1PM T200-PM100DA-M1.4 P1PM T200-PM100DA-M1.4 P1PM

T200-PM100DA-M1.4 P1PM

Sandvik Coromant
Артикул: 8060147
В наличии
В корзину
Описание
Характеристики
BMC (Body material code)
S - Solid steel
CNSC (Coolant entry style code)
0 - Without coolant entry
COATN (Coating)
PVD TiAlN
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
DCP (Data chip provision)
0 - Without data chip
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
ZYL00252105
DRVS (Drive size)
2.1 mm
FHA (Flute helix angle)
0 Degree
FHH (Flute helix hand)
N - Hand of helix neutral
GRDMFG (Grade manufacturers designation)
P1PM
GRDPRIO (Standard designation of the grade main application)
HSS-E-PM
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
ZYL21F2500$$$$
LDRED (Neck length)
7.7 mm
LOC-03 ISO
ZYL21F2500$$$$
LOC-03 (CCFMS Connection code form)
21
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
0 Metric
LOC-03 (CZCMS Connection size code)
0025

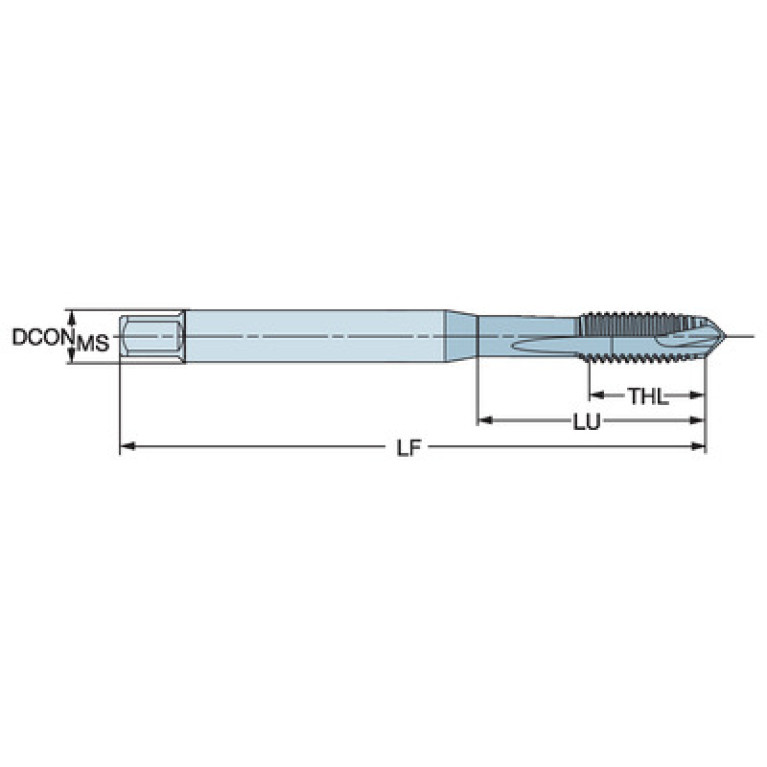

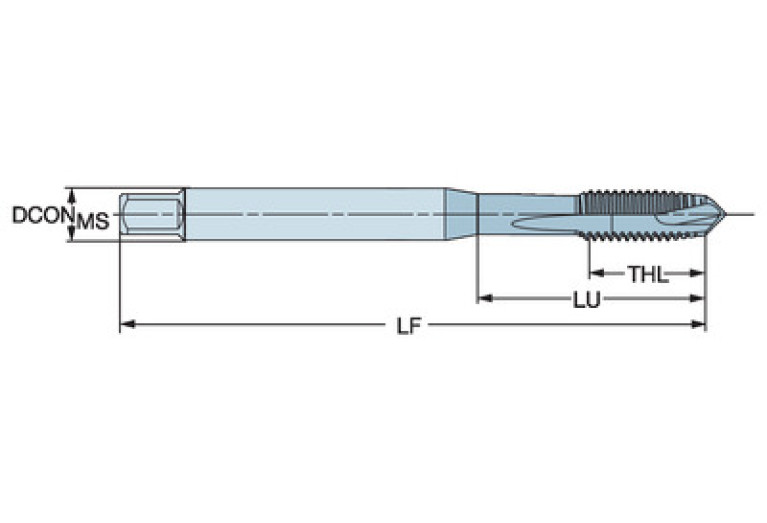

LOC-03 (DCONMS Diameter)
2.5 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00252105
LS (Shank length)
21.35 mm
Materials
P
NOF (Flute count)
2

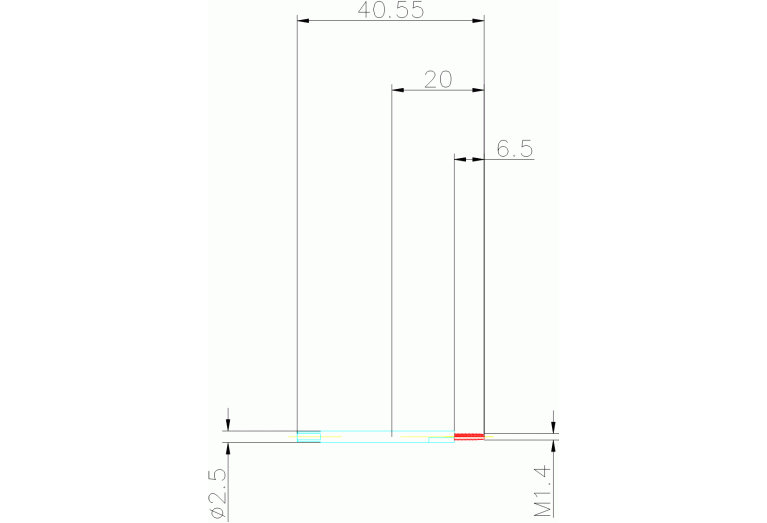

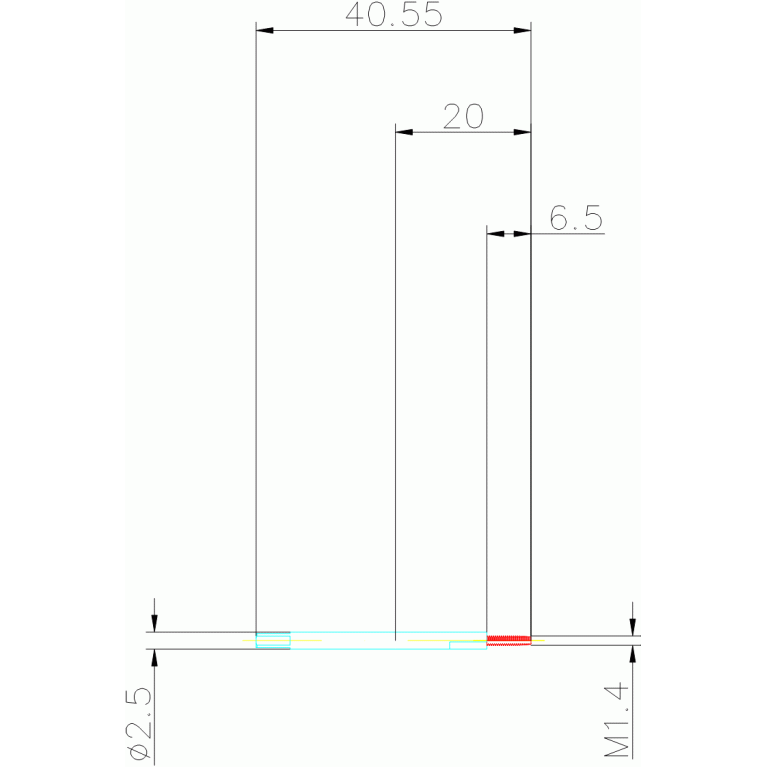

OAL (Overall length)
40 mm
PLCD (Gate diameter)
1.1 mm
PLG (Plug style)
B - Kappa r 8°
TCL (Tap chamfer length)
1.181 mm
TCTR (Thread tolerance class)
5HX
TD (Thread diameter)
1.4 mm
THFT (Thread form type)
M
THL (Thread cutting part length)
6.5 mm
THOD (Thread designation)
M1.4x0.3-5HX
TP (Thread pitch)
0.3 mm
TTPID (Tap type identifier)
1 - Machine tap
Working process
BG - Tapping,BGD - Thread cutting, through hole,BGS - Thread cutting, blind hole
WT (Weight of item)
0.004 kg
