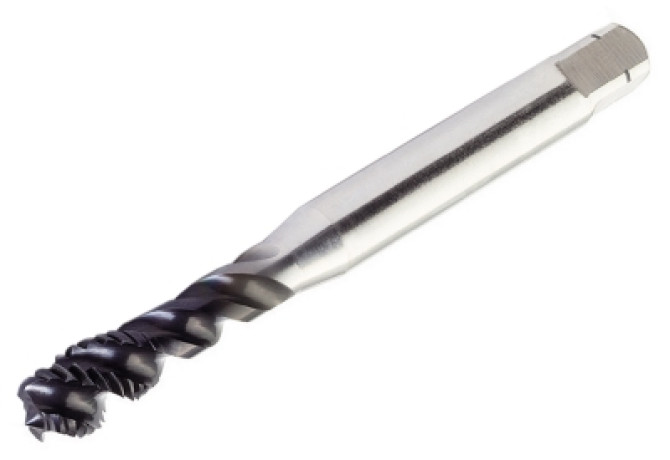

Главная Каталог продукции Sandvik Coromant 301-02 - Thread cutting tap with reinforced shank EX39PA10-32

EX39PA10-32

Артикул: 6162631

В наличии

В корзину

Описание

Характеристики

BMC (Body material code)

S - Solid steel

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

COATN (Coating)

PVD TiAlN

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

DCP (Data chip provision)

0 - Without data chip

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

ZYL01942135

DN (Neck diameter)

3.76 mm

DRVS (Drive size)

3.861 mm

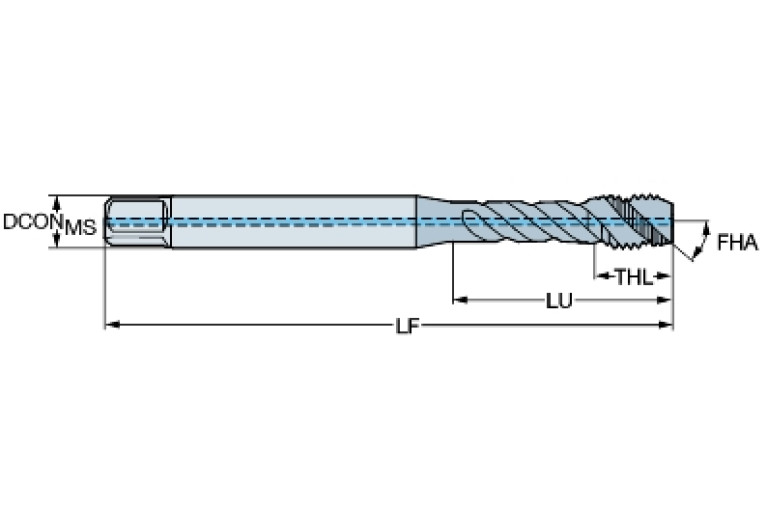

FHA (Flute helix angle)

48 Degree

FHH (Flute helix hand)

R - Hand of helix right

GRDMFG (Grade manufacturers designation)

T4I1

GRDPRIO (Standard designation of the grade main application)

HSS-E-PM

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL21R1940h$09

LDRED (Neck length)

27.541 mm

LOC-03 ISO

ZYL21R1940h$09

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

3 Inch with coolant

LOC-03 (CZCMS Connection size code)

0194

LOC-03 (DCONMS Diameter)

4.928 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01942135

LS (Shank length)

21.35 mm

Materials

NOF (Flute count)

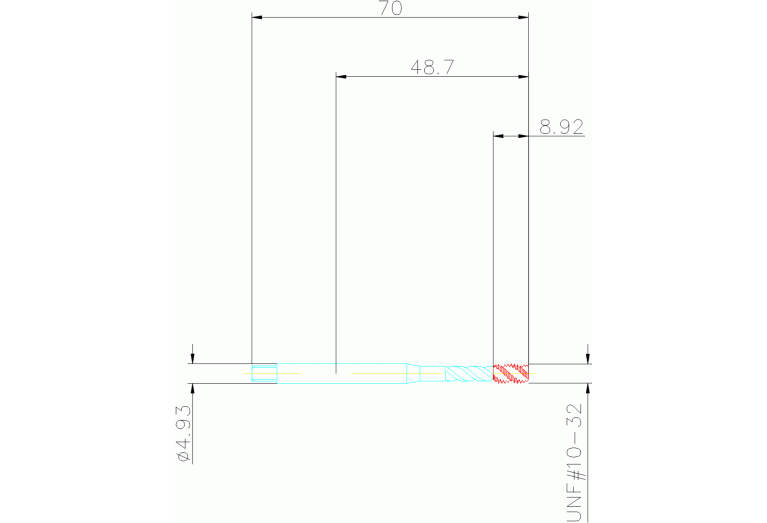

OAL (Overall length)

70 mm

PLCD (Gate diameter)

4.1 mm

TCDCONMS (ISO-tolerance class shank diameter)

TCL (Tap chamfer length)

1.594 mm

TCTR (Thread tolerance class)

2BX

TD (Thread diameter)

4.826 mm

TDZ (Thread diameter size)

THFT (Thread form type)

UNF

THL (Thread cutting part length)

8.001 mm

THOD (Thread designation)

UNF10-32-2BX

TPI (Threads per inch)

32 1/in

TTPID (Tap type identifier)

1 - Machine tap

Working process

BG - Tapping,BGD - Thread cutting, through hole,BGS - Thread cutting, blind hole

WT (Weight of item)

0.011 kg
