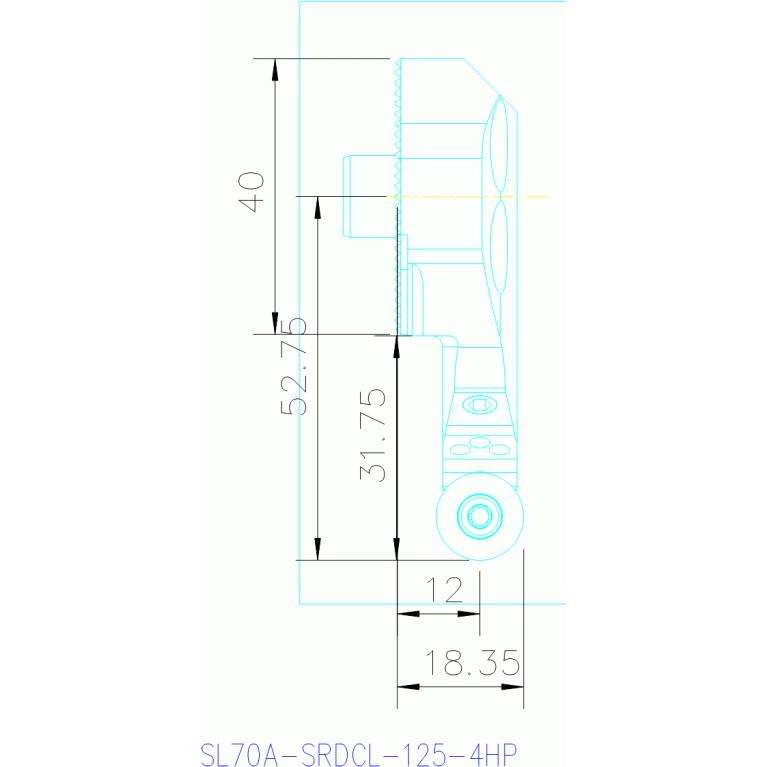

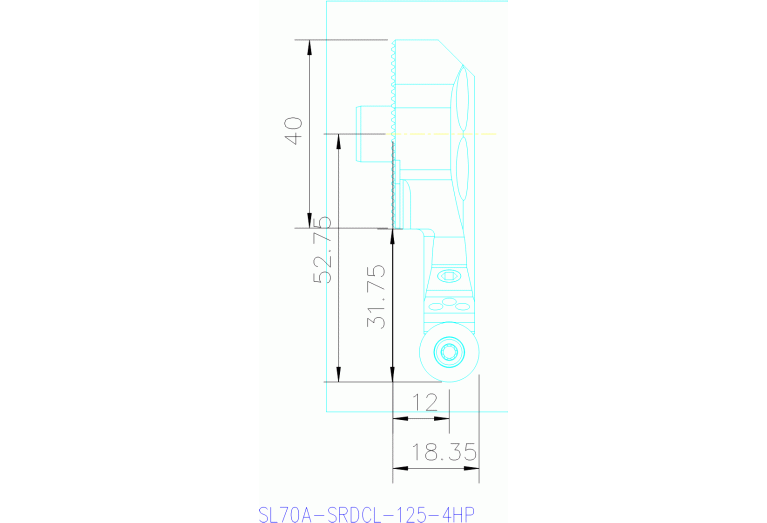

SL70A-SRDCL-125-4HP

Артикул: 5923430

В наличии

В корзину

Описание

Характеристики

A2A SKJ (Stechbreite Nennmaß Schneidkörper Pos.A)

7 mm

BI (Block index)

BLDA SKJ (Bildkennung Schneidkörper Pos.A)

CDX (Cutting depth maximum)

31.75 mm

CEDC (Cutting edge count)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

DCC (Design configuration style code)

S - Solid steel, no construction features

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

CMS07000197

DIN CSW1

RC1204003N

DMIN (Minimum bore diameter)

260 mm

GAMO (Rake angle orthogonal)

0 Degree

HAND (Cutting direction)

L - Left

HF (Functional height)

0 mm

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

CMS01C0700$$$$

ISO CSW1

ISO$RC1204003****00

KAPR (Tool cutting edge angle)

90 Degree

LAMS (Inclination angle)

0 Degree

LF (Functional length)

16.993 mm

LOC-03 ISO

CMS01C0700$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

7 Serrated connection

LOC-03 (CCTMS Connection code type)

CMS Coromant Modular boring SANDVIK

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0700

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CMS07000197

LTA (Length tool assembly)

16.993 mm

MIID (Master insert identification)

RCMT120400

OAL (Overall length)

24.793 mm

WF (Functional width)

53 mm

Working process

DAA - Parting,DDA - External turning,DDB - External and internal turning,DDI - Internal turning,DEI - Grooving,DFA - External form turning,DFI - Internal form turning,DPA - Profiling external,DPI - Profiling internal

WT (Weight of item)

0.315 kg
