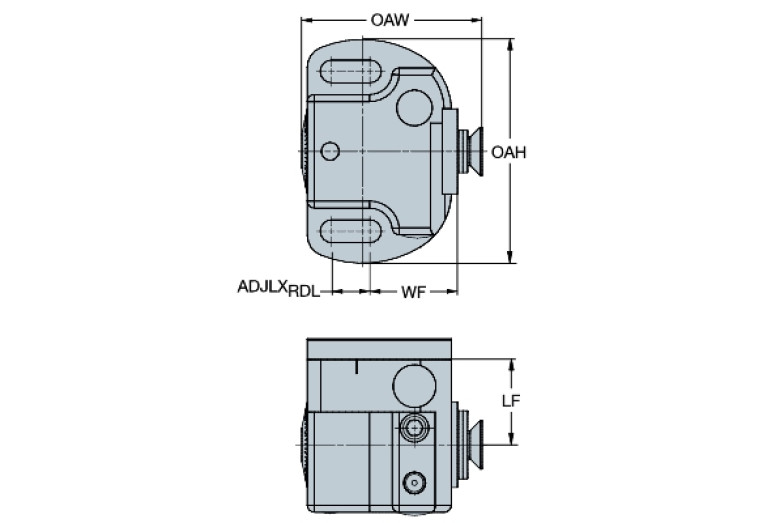

S20-R826C-E024HP

S20-R826C-E024HP S20-R826C-E024HP S20-R826C-E024HP S20-R826C-E024HP

S20-R826C-E024HP

Sandvik Coromant
Артикул: 6873089
В наличии
В корзину
Описание
Характеристики
ADJIN (Adjustment increment axial)
0.001 mm
ADJRGA (Adjustment range axial)
10.65 mm
BMC (Body material code)
L - Light alloy
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
2 - With Coolant exit, radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
2 - With Coolant exit, radial
Delivery state valid from
12/1/2023
DIN
CBC02020195
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
CBC01C0202$$$$
LOC-01 ISO
CCB02C0032****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
CCB00320295
LOC-03 ISO
CBC01C0202$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
CBC Coromant Bridge Connection SANDVIK
LOC-03 (CCUMS Connection code unit base)
9 non-dimensional size with coolant
LOC-03 (CZCMS Connection size code)
0202
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CBC02020195
Working process
BAB - Open by boring
WT (Weight of item)
0.34 kg
