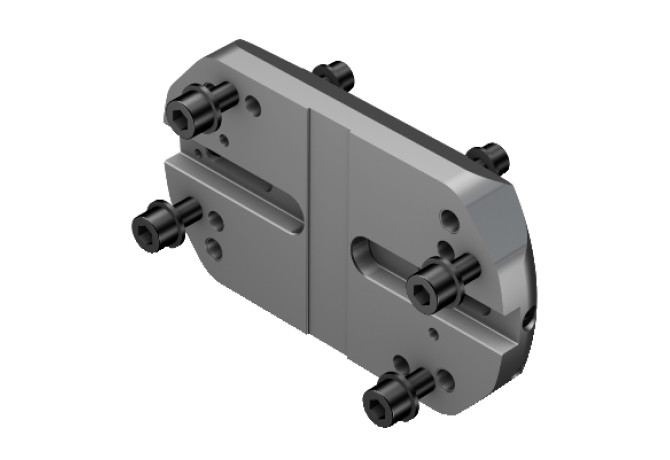

Главная Инструменты 305-03 - Bridge tool A33-R822XLS17-LL030

A33-R822XLS17-LL030

Артикул: 6872881

В наличии

0 ₽

В корзину

Описание

Характеристики

BMC (Body material code)

L - Light alloy

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

CBC

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

CZCWS (Connection size code)

0030

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

SPK03300213

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

SPK02A0330$$$$

LF (Functional length)

30 mm

LOC-01 ISO

CBC01C0030****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

CBC Coromant Bridge Connection SANDVIK

LOC-01 (CCUWS Connection code unit base)

9 non-dimensional size with coolant

LOC-01 (CZCWS Connection size code)

0030

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

CBC00300195

LOC-02 ISO

CBC01C0170****

LOC-02 (CCFWS Connection code form)

LOC-02 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-02 (CCTWS Connection code type)

CBC Coromant Bridge Connection SANDVIK

LOC-02 (CCUWS Connection code unit base)

9 non-dimensional size with coolant

LOC-02 (CZCWS Connection size code)

0030

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

CBC01700195

LOC-03 ISO

SPK02A0330$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

3 Hole pattern (through bore) machine side or hole pattern (threaded hole) machine side or

LOC-03 (CCTMS Connection code type)

SPK Spindle nose mounting

LOC-03 (CCUMS Connection code unit base)

1 Metric with coolant

LOC-03 (CZCMS Connection size code)

0330

LOC-03 (DCONMS Diameter)

33 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SPK03300213

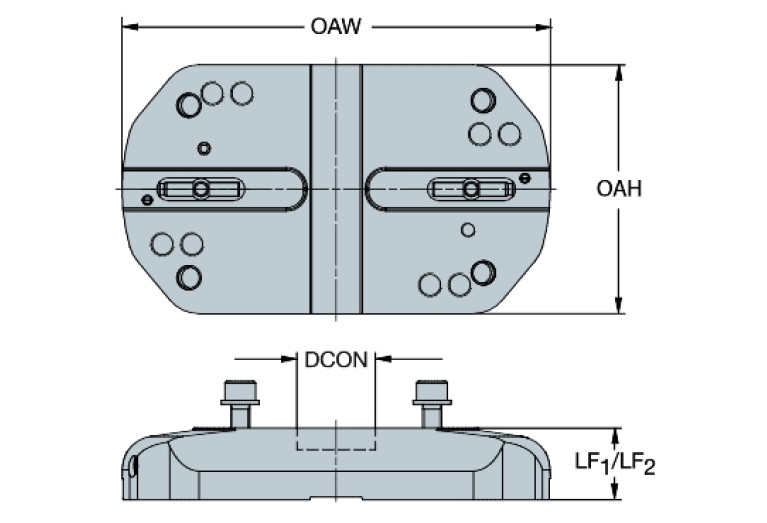

OAW (Overall width)

230 mm

Working process

BAB - Open by boring

WT (Weight of item)

1.59 kg
