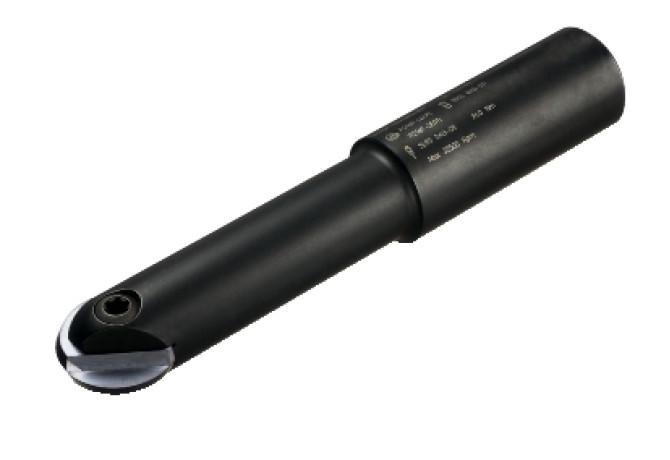

Главная Инструменты 307-13 - Die and mold end mill R216F-16A16C-063

R216F-16A16C-063

Артикул: 5743704

В наличии

0 ₽

В корзину

Описание

Характеристики

APMX (Depth of cut maximum)

2.4 mm

B3A (Inscribed circle diameter Pos. A)

16 mm

BD (Body diameter)

14 mm

BI (Block index)

BLDA (Tool style code Position A)

BMC (Body material code)

H - Solid carbide

C1A (Insert thickness Pos. A)

4 mm

CCONMS (Connection count machine side)

CICT (Cutting item count)

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DC (Cutting diameter)

16 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

ZYL01600105

F23 (Number of mounting layers)

F24 (Cutting item count per mounting layer)

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL01G1600h$06

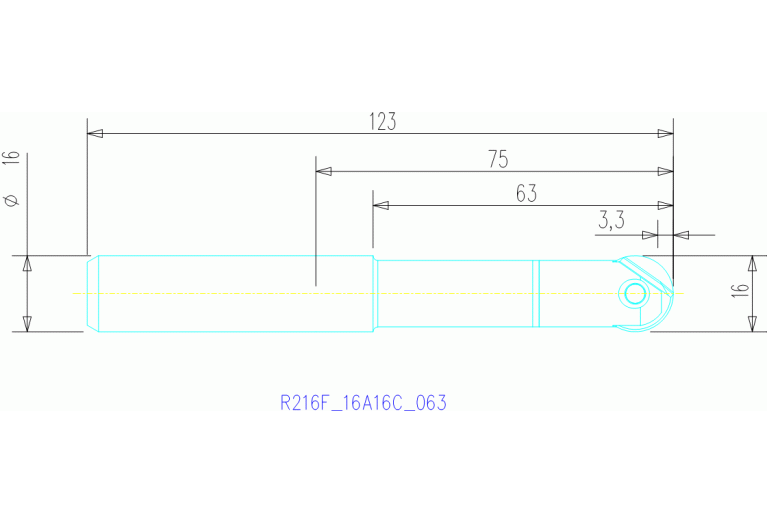

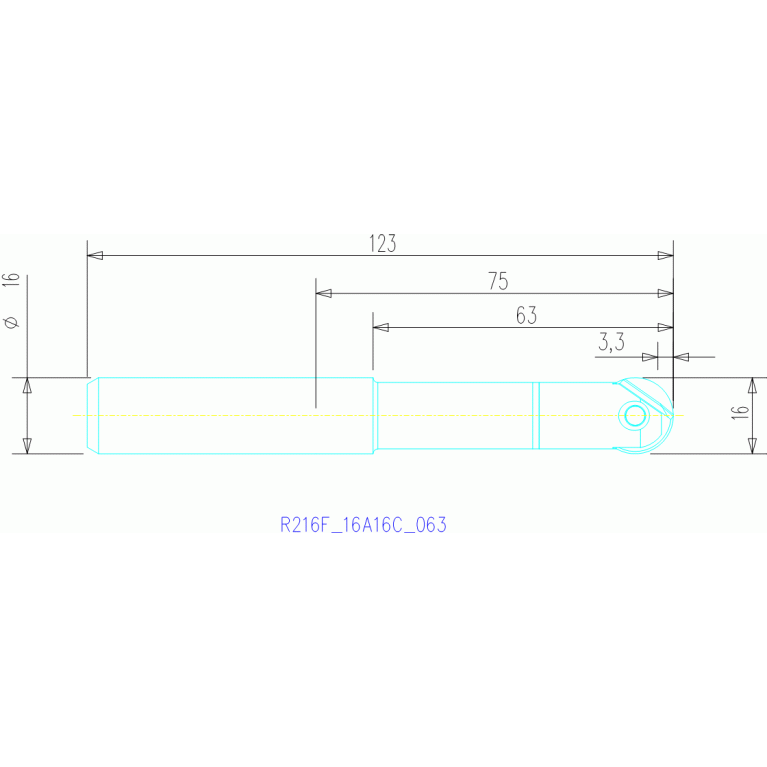

LF (Functional length)

123 mm

LOC-03 ISO

ZYL01G1600h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0160

LOC-03 (DCONMS Diameter)

16 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01600105

LPR (Protruding length)

75 mm

LS (Shank length)

48 mm

LU (Usable length)

63 mm

MIID (Master insert identification)

R216F-16..

MILTTY (Mill tool type ISO)

L - Face and side end mill with ball nose (more then one indexable insert pro cutting edge) 90°

OAL (Overall length)

123 mm

PRFRAD (Profile radius)

8 mm

RPMX (Rotational speed maximum)

43000 1/min

TCDCONMS (ISO-tolerance class shank diameter)

Working process

FEC - Square shoulder milling,FFO - Die milling,FPR - Profile milling

WT (Weight of item)

0.44 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
