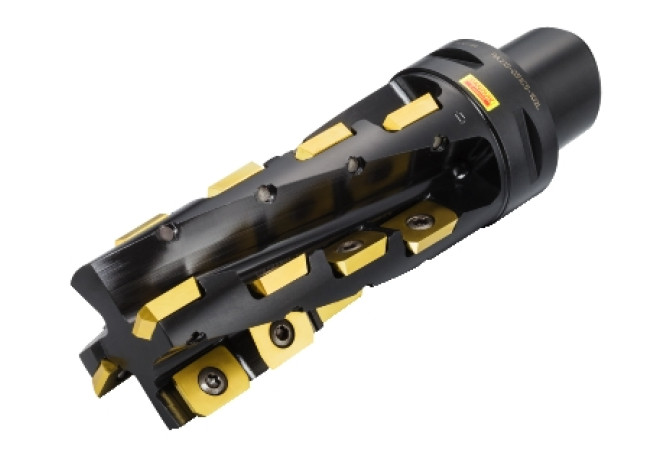

Главная Инструменты 307-07 - Non-centre cutting multiple rows end mill RA215-051C5-102L

RA215-051C5-102L

Артикул: 5740166

В наличии

0 ₽

В корзину

Описание

Характеристики

A1A (Cutting edge angle major Pos. A)

90 Degree

A1B (Cutting edge angle major Pos. B)

90 Degree

A2A (Clearance angle major Pos. A)

15 Degree

A2B (Clearance angle major Pos. B)

15 Degree

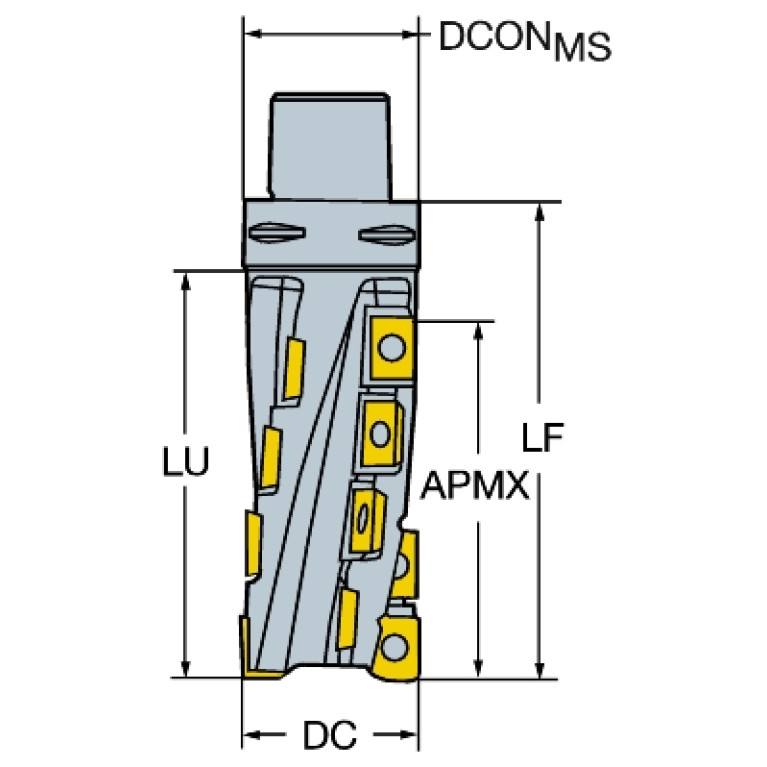

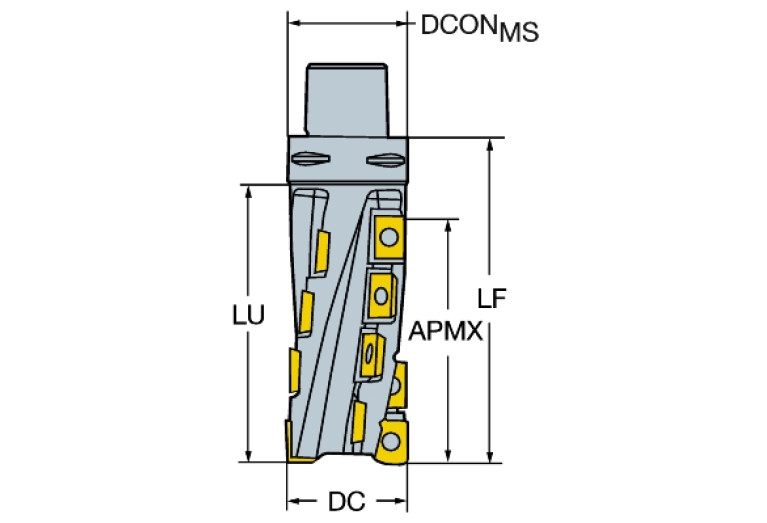

APMX (Depth of cut maximum)

101.6 mm

AZ (Plunge depth maximum)

0 mm

B2A (Insert width Pos. A)

13.767 mm

B2B (Insert width Pos. B)

13.767 mm

B3A (Inscribed circle diameter Pos. A)

13.767 mm

B3B (Inscribed circle diameter Pos. B)

13.767 mm

BI (Block index)

BLDA (Tool style code Position A)

BLDB (Tool style code Position B)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

4.75 mm

C1B (Insert thickness Pos. B)

4.75 mm

CCONMS (Connection count machine side)

CICT (Cutting item count)

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

D1A (Corner radius Pos. A)

1.587 mm

DC (Cutting diameter)

50.8 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

CCS05000185

GAMF (Rake angle radial)

5 Degree

GAMP (Rake angle axial)

0 Degree

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISISO A (Indicator for ISO cutting plate Pos.A)

ISO

CCS01C0500$$$$

KAPR (Tool cutting edge angle)

90 Degree

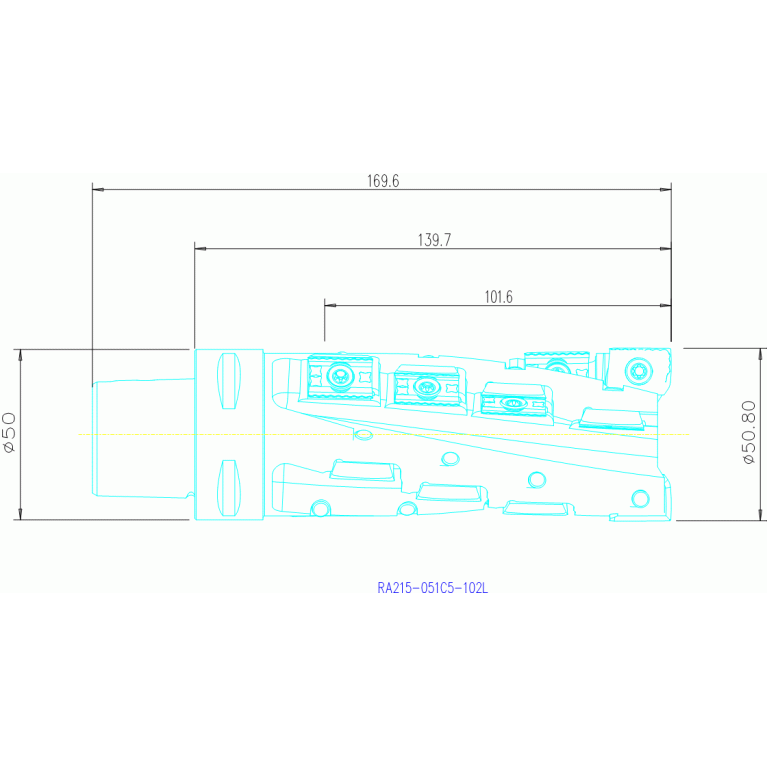

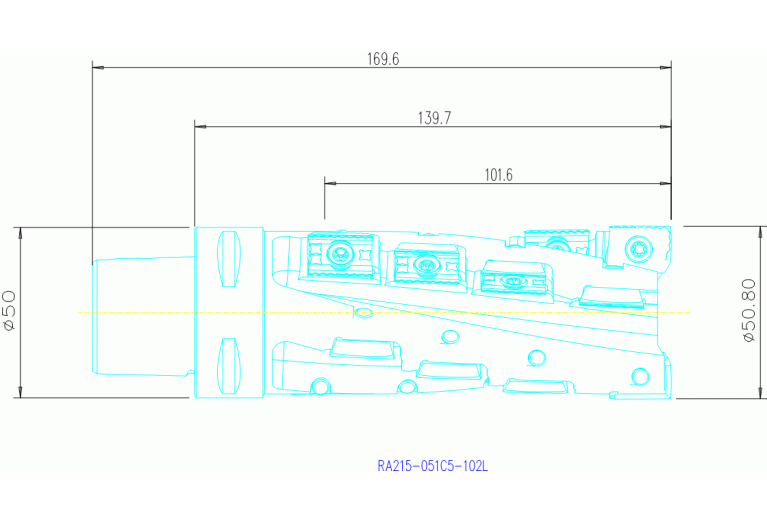

LF (Functional length)

139.7 mm

LOC-03 ISO

CCS01C0500$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-03 (CCUMS Connection code unit base)

8 non-dimensional size

LOC-03 (CZCMS Connection size code)

0500

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS05000185

LPR (Protruding length)

139.7 mm

MIID (Master insert identification)

LDHT190400

OAL (Overall length)

177.853 mm

RMPX (Ramping angle maximum)

0 Degree

RPMX (Rotational speed maximum)

7800 1/min

Working process

FEC - Square shoulder milling,FPL - Face milling

WT (Weight of item)

1.448 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
