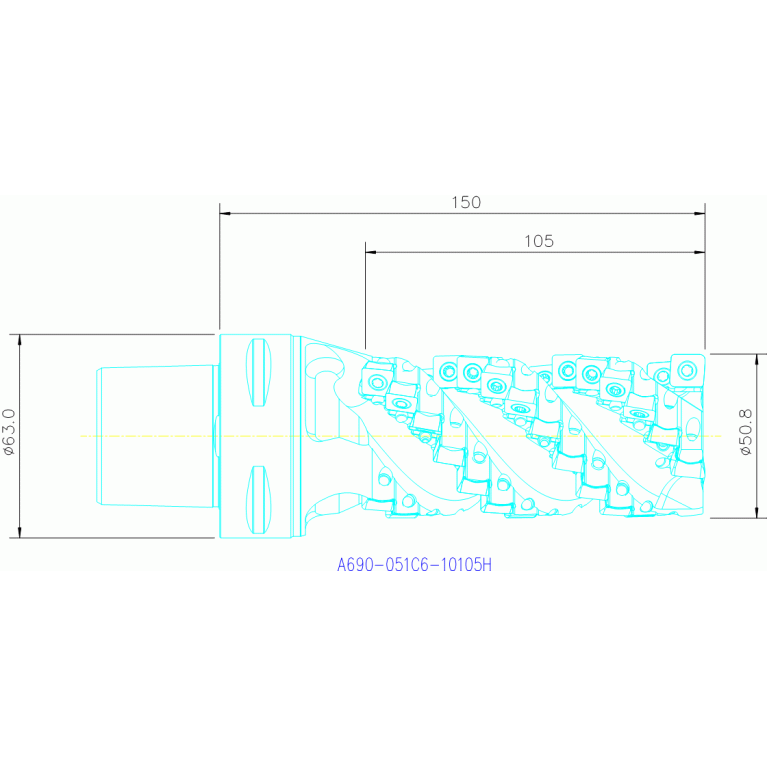

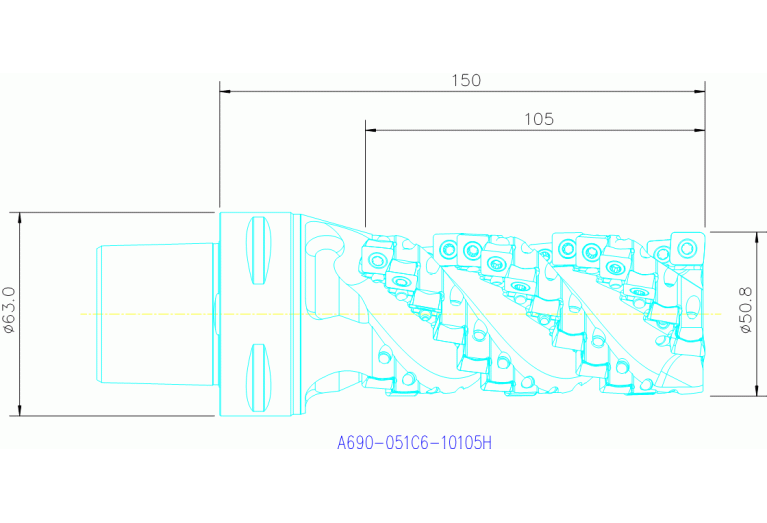

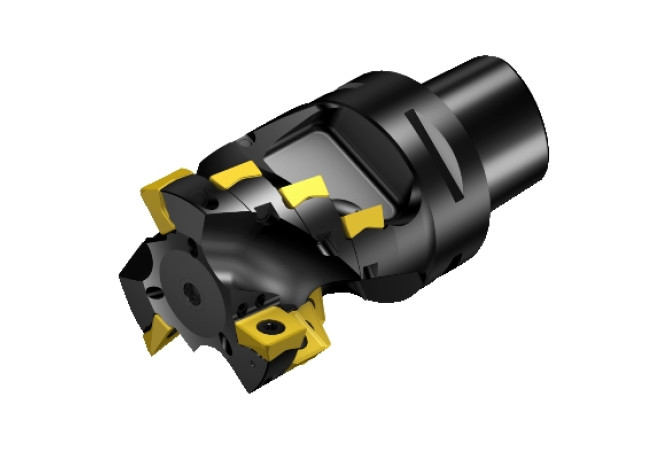

Главная Инструменты 307-07 - Non-centre cutting multiple rows end mill A690-051C6-10105H

A690-051C6-10105H

Артикул: 5723636

В наличии

0 ₽

В корзину

Описание

Характеристики

A1A (Cutting edge angle major Pos. A)

90 Degree

A1B (Cutting edge angle major Pos. B)

90 Degree

A2A (Clearance angle major Pos. A)

11 Degree

A2B (Clearance angle major Pos. B)

11 Degree

APMX (Depth of cut maximum)

105 mm

AZ (Plunge depth maximum)

0 mm

B2A (Insert width Pos. A)

10 mm

B2B (Insert width Pos. B)

10 mm

B3A (Inscribed circle diameter Pos. A)

10 mm

B3B (Inscribed circle diameter Pos. B)

10 mm

BI (Block index)

BLDA (Tool style code Position A)

BLDB (Tool style code Position B)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

5.2 mm

C1B (Insert thickness Pos. B)

5.2 mm

CCONMS (Connection count machine side)

CICT (Cutting item count)

CNSC (Coolant entry style code)

3 - With Coolant entry, axial concentric and radial

CXSC (Coolant exit style code)

6 - With coolant supply (discharge), peripheral/decentralized adjustable

CXSC (Coolant exit style code) / Тип подвода СОЖ

6 - With coolant supply (discharge), peripheral/decentralized adjustable

DC (Cutting diameter)

50.8 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

CCS06300195

GAMF (Rake angle radial)

7 Degree

GAMP (Rake angle axial)

0 Degree

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

CCS01C0630$$$$

KAPR (Tool cutting edge angle)

90 Degree

LF (Functional length)

150 mm

LOC-03 ISO

CCS01C0630$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0630

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS06300195

LPR (Protruding length)

150 mm

LU (Usable length)

107 mm

MIID (Master insert identification)

690-100510M-P-SL

OAL (Overall length)

188 mm

RMPX (Ramping angle maximum)

0 Degree

RPMX (Rotational speed maximum)

5000 1/min

Working process

FEC - Square shoulder milling,FPL - Face milling

WT (Weight of item)

2.42 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
