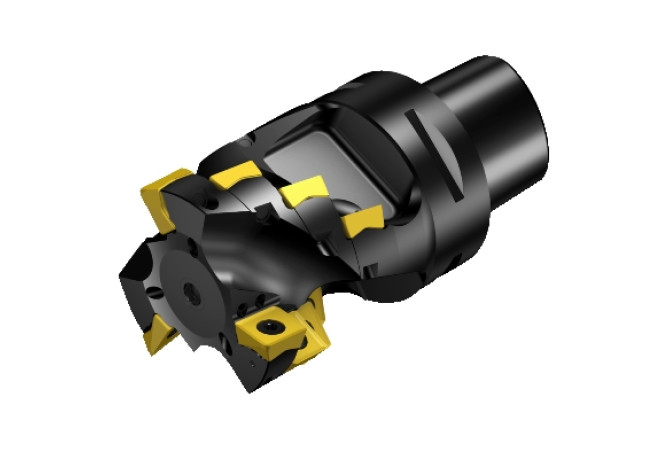

Главная Инструменты 307-07 - Non-centre cutting multiple rows end mill 690-100C10-1473M

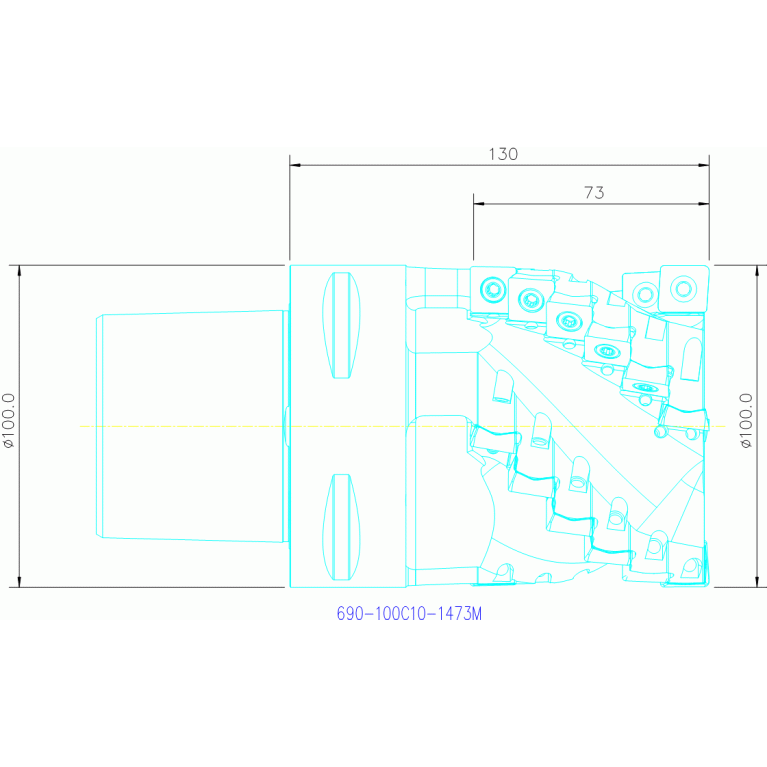

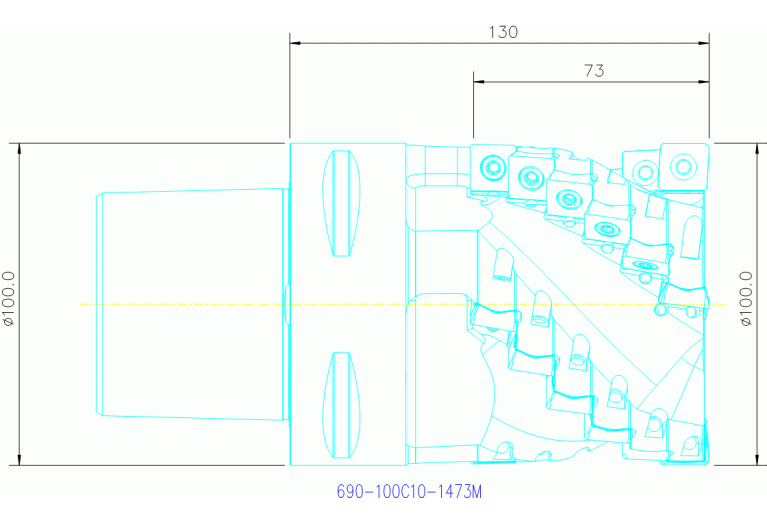

690-100C10-1473M

Артикул: 5764740

В наличии

0 ₽

В корзину

Описание

Характеристики

A1A (Cutting edge angle major Pos. A)

90 Degree

A1B (Cutting edge angle major Pos. B)

90 Degree

A2A (Clearance angle major Pos. A)

11 Degree

A2B (Clearance angle major Pos. B)

11 Degree

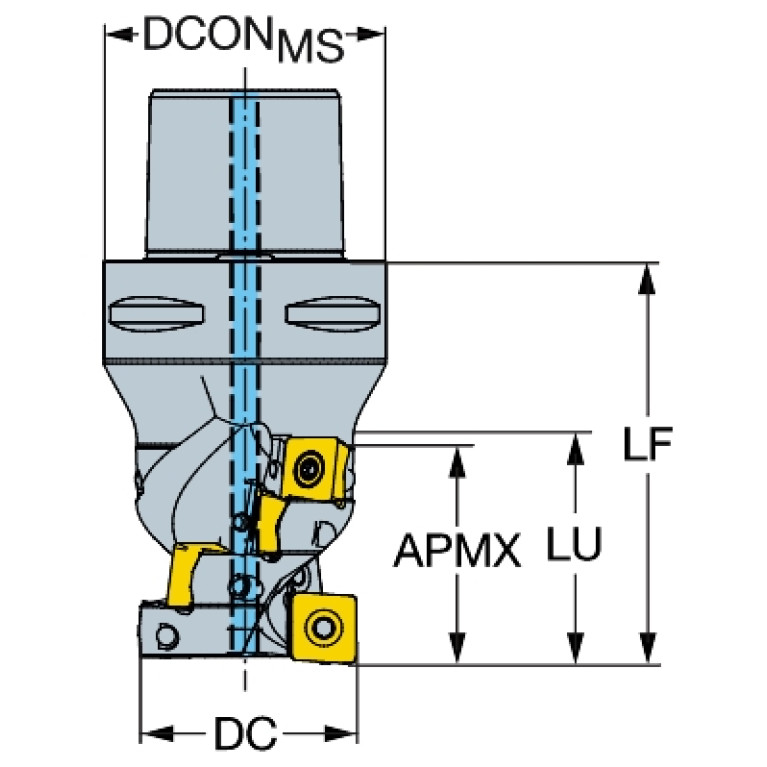

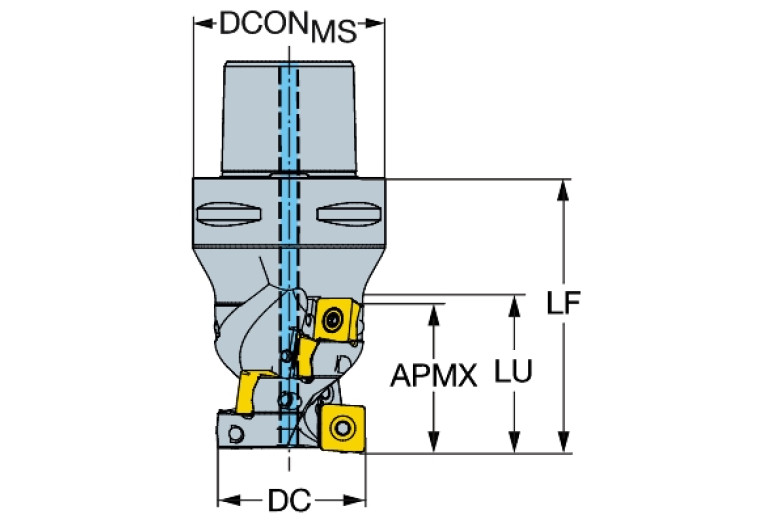

APMX (Depth of cut maximum)

73 mm

AZ (Plunge depth maximum)

0 mm

B2A (Insert width Pos. A)

14.5 mm

B2B (Insert width Pos. B)

14.5 mm

B3A (Inscribed circle diameter Pos. A)

14.5 mm

B3B (Inscribed circle diameter Pos. B)

14.5 mm

BI (Block index)

BLDA (Tool style code Position A)

BLDB (Tool style code Position B)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

6.35 mm

C1B (Insert thickness Pos. B)

6.35 mm

CCONMS (Connection count machine side)

CICT (Cutting item count)

CNSC (Coolant entry style code)

3 - With Coolant entry, axial concentric and radial

CXSC (Coolant exit style code)

6 - With coolant supply (discharge), peripheral/decentralized adjustable

CXSC (Coolant exit style code) / Тип подвода СОЖ

6 - With coolant supply (discharge), peripheral/decentralized adjustable

DC (Cutting diameter)

100 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

CCS10000195

GAMF (Rake angle radial)

7 Degree

GAMP (Rake angle axial)

1 Degree

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

CCS01C1000$$$$

KAPR (Tool cutting edge angle)

90 Degree

LF (Functional length)

130 mm

LOC-03 ISO

CCS01C1000$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

1000

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS10000195

LPR (Protruding length)

130 mm

LU (Usable length)

90 mm

MIID (Master insert identification)

690-140610M-P-SL

OAL (Overall length)

190 mm

RMPX (Ramping angle maximum)

0 Degree

RPMX (Rotational speed maximum)

5000 1/min

Working process

FEC - Square shoulder milling,FPL - Face milling

WT (Weight of item)

7.618 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
