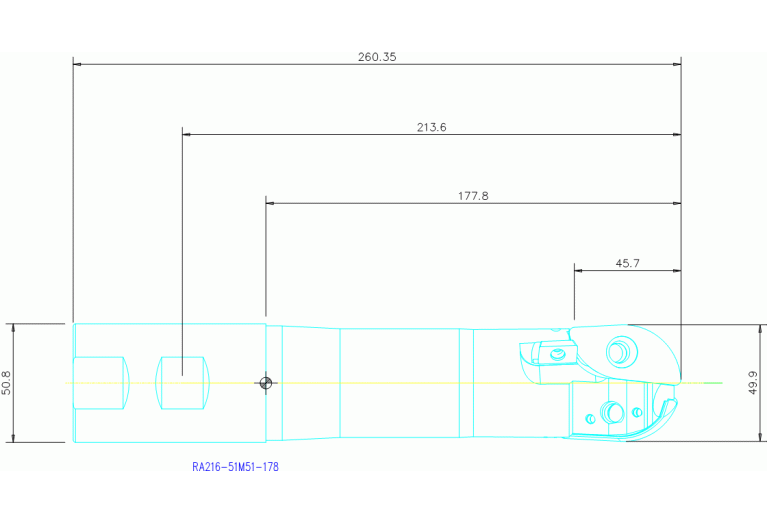

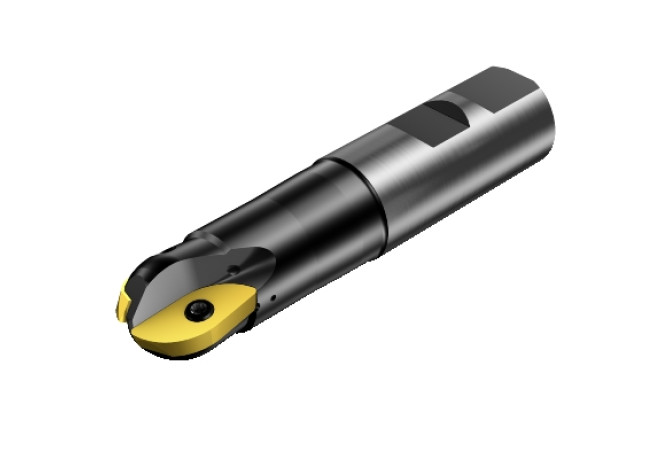

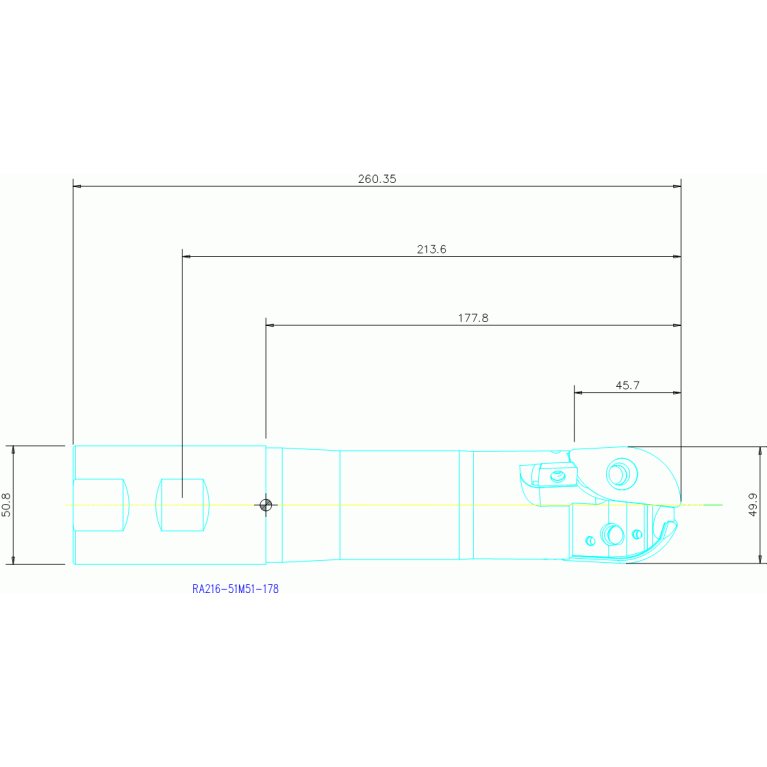

Главная Инструменты 307-11 - Straight ball-nosed end mill RA216-51M51-178

RA216-51M51-178

Артикул: 5738382

В наличии

0 ₽

В корзину

Описание

Характеристики

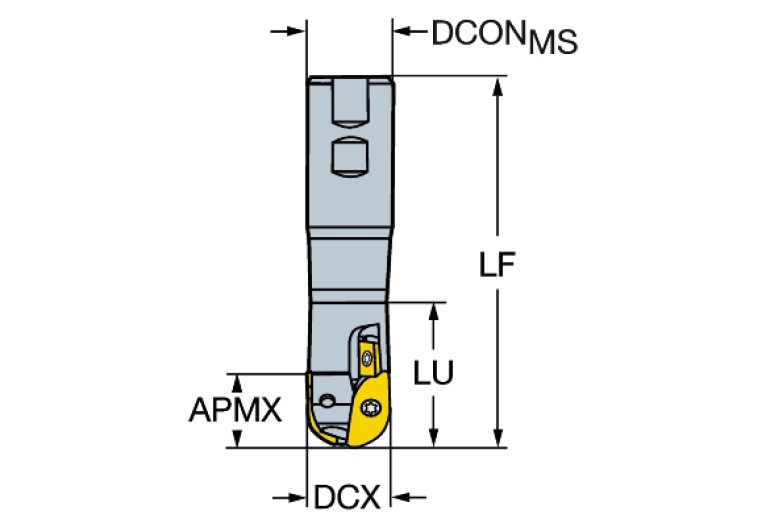

A1A (Cutting edge angle major Pos. A)

85 Degree

A1B (Cutting edge angle major Pos. B)

85 Degree

A2A (Clearance angle major Pos. A)

11 Degree

A2B (Clearance angle major Pos. B)

11 Degree

APMX (Depth of cut maximum)

45.491 mm

B2A (Insert width Pos. A)

9.52 mm

B2B (Insert width Pos. B)

9.52 mm

BD (Body diameter)

46.6 mm

BI (Block index)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

7.938 mm

C1B (Insert thickness Pos. B)

7.938 mm

CCONMS (Connection count machine side)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

DC (Cutting diameter)

50.8 mm

DCP (Data chip provision)

0 - Without data chip

DCX (Cutting diameter maximum)

50.8 mm

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

ZYL20001035

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL10S2000h$06

KAPR (Tool cutting edge angle)

90 Degree

LOC-03 ISO

ZYL10S2000h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

3 Inch with coolant

LOC-03 (CZCMS Connection size code)

2000

LOC-03 (DCONMS Diameter)

50.8 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL20001035

LPR (Protruding length)

177.8 mm

LS (Shank length)

82.55 mm

LU (Usable length)

177.8 mm

MIID (Master insert identification)

APMT160408-M

MILTTY (Mill tool type ISO)

L - Face and side end mill with ball nose (more then one indexable insert pro cutting edge) 90°

OAL (Overall length)

260.35 mm

PRFRAD (Profile radius)

25.4 mm

RPMX (Rotational speed maximum)

7000 1/min

TCDCONMS (ISO-tolerance class shank diameter)

Working process

FEC - Square shoulder milling,FFO - Die milling,FPR - Profile milling

WT (Weight of item)

3.545 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
