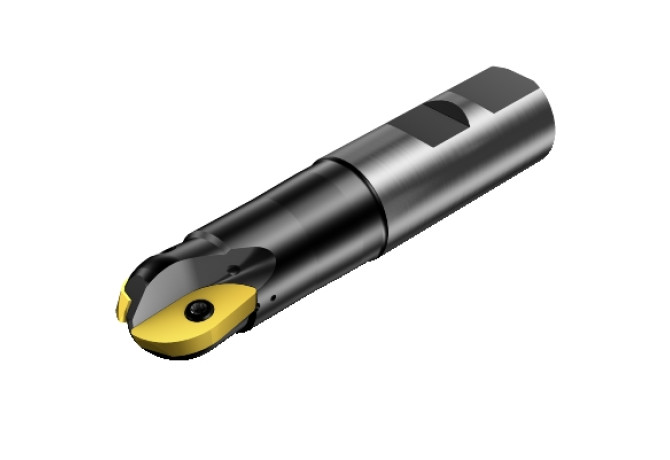

RA216-38M38-152

Артикул: 5738394

В наличии

0 ₽

В корзину

Описание

Характеристики

A1A (Cutting edge angle major Pos. A)

85 Degree

A1B (Cutting edge angle major Pos. B)

85 Degree

A2A (Clearance angle major Pos. A)

11 Degree

A2B (Clearance angle major Pos. B)

11 Degree

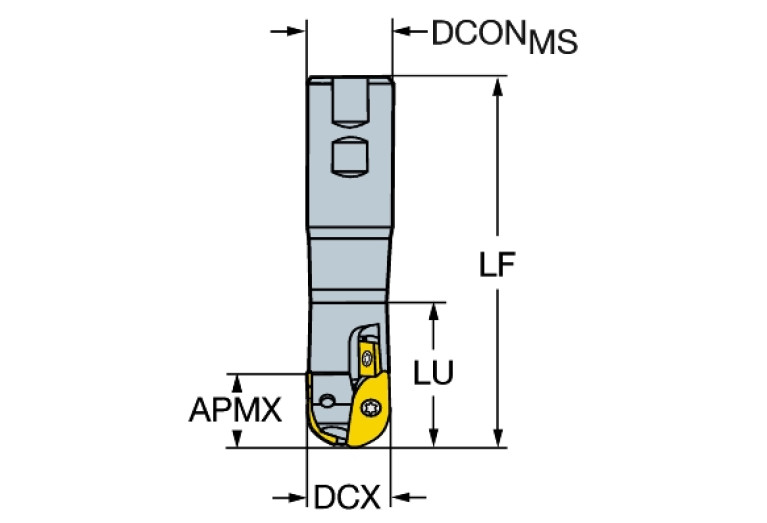

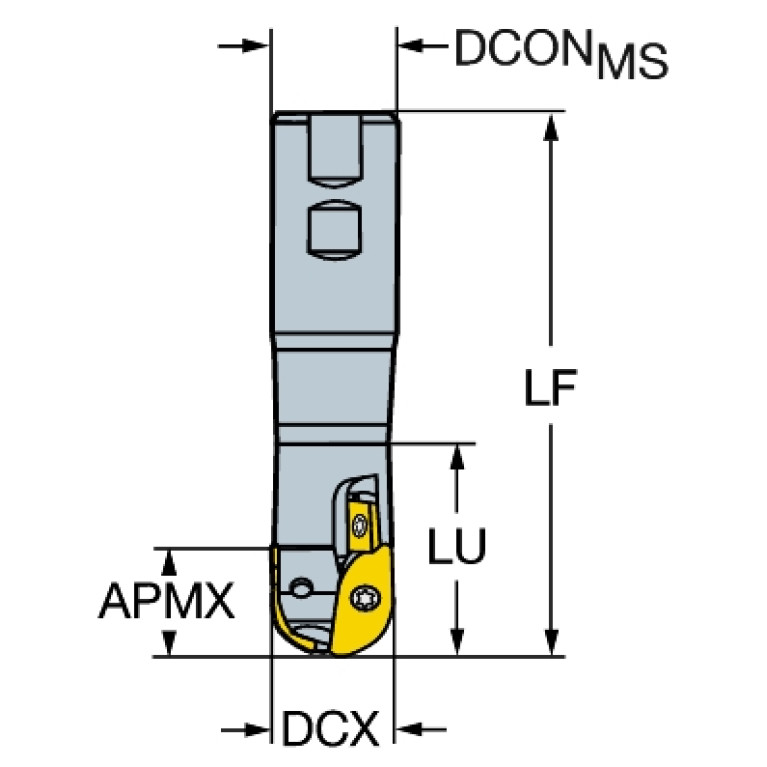

APMX (Depth of cut maximum)

32.995 mm

B2A (Insert width Pos. A)

9.52 mm

B2B (Insert width Pos. B)

9.52 mm

BD (Body diameter)

34.8 mm

BI (Block index)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

7.94 mm

C1B (Insert thickness Pos. B)

7.94 mm

CCONMS (Connection count machine side)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

DC (Cutting diameter)

38.1 mm

DCP (Data chip provision)

0 - Without data chip

DCX (Cutting diameter maximum)

38.1 mm

Delivery state valid from

12/1/2023

DIN

ZYL15001035

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL10S1500h$06

KAPR (Tool cutting edge angle)

90 Degree

LOC-03 ISO

ZYL10S1500h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

3 Inch with coolant

LOC-03 (CZCMS Connection size code)

1500

LOC-03 (DCONMS Diameter)

38.1 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL15001035

LPR (Protruding length)

152.4 mm

LS (Shank length)

68.26 mm

LU (Usable length)

152.4 mm

MIID (Master insert identification)

APMT160408-M

MILTTY (Mill tool type ISO)

L - Face and side end mill with ball nose (more then one indexable insert pro cutting edge) 90°

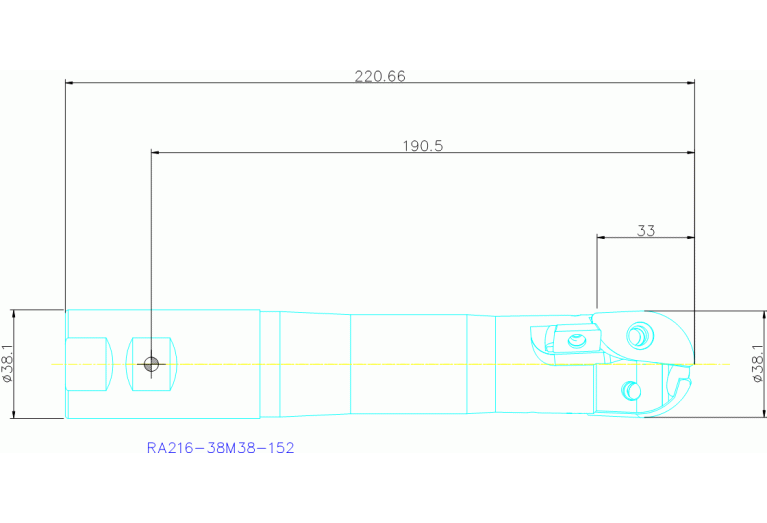

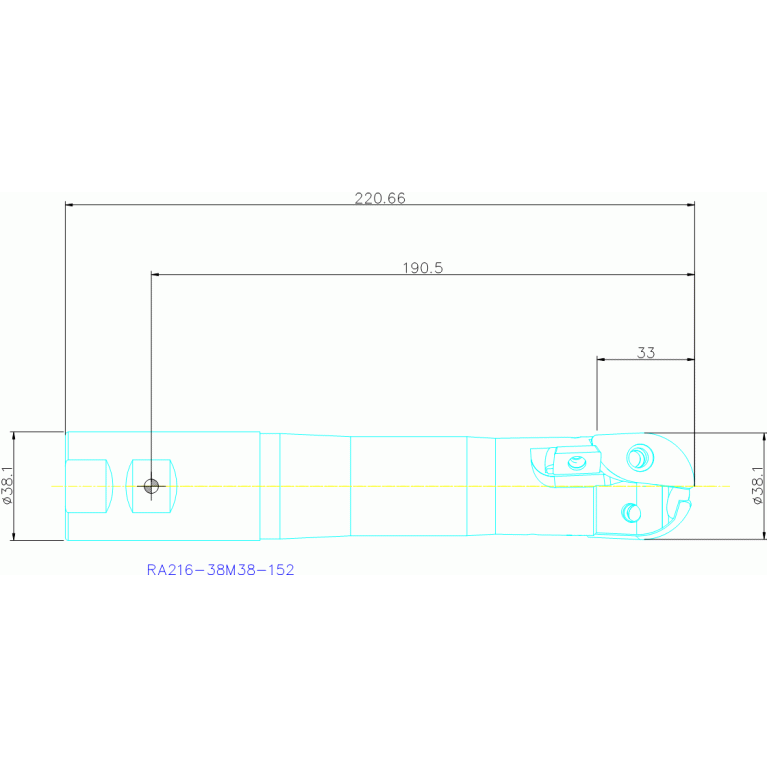

OAL (Overall length)

220.66 mm

PRFRAD (Profile radius)

19.05 mm

RPMX (Rotational speed maximum)

8000 1/min

TCDCONMS (ISO-tolerance class shank diameter)

Working process

FEC - Square shoulder milling,FFO - Die milling,FPR - Profile milling

WT (Weight of item)

1.589 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
