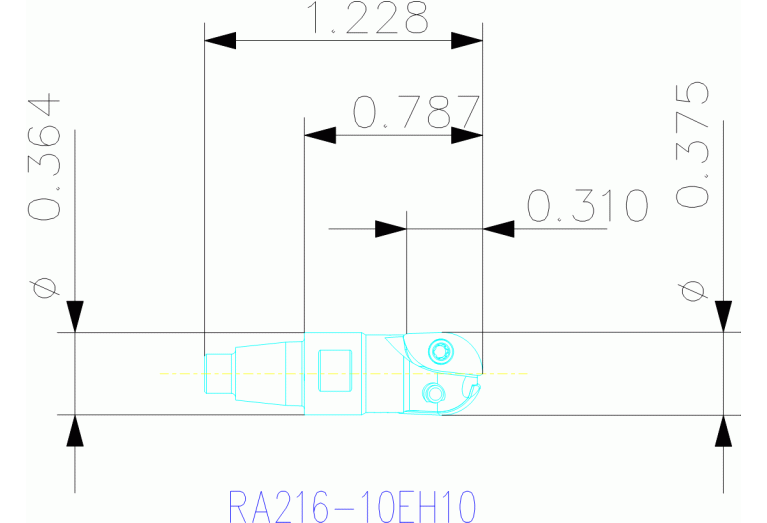

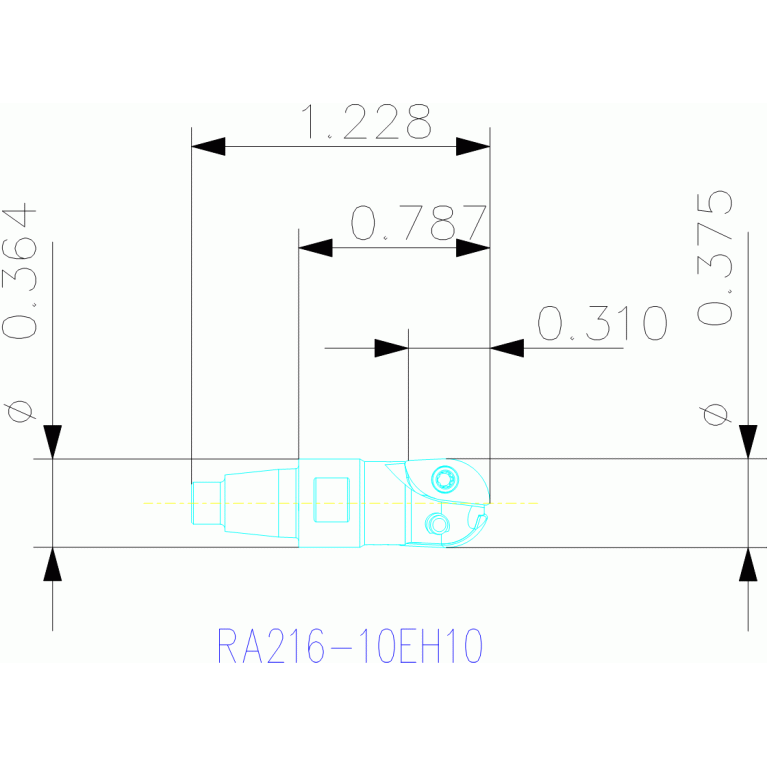

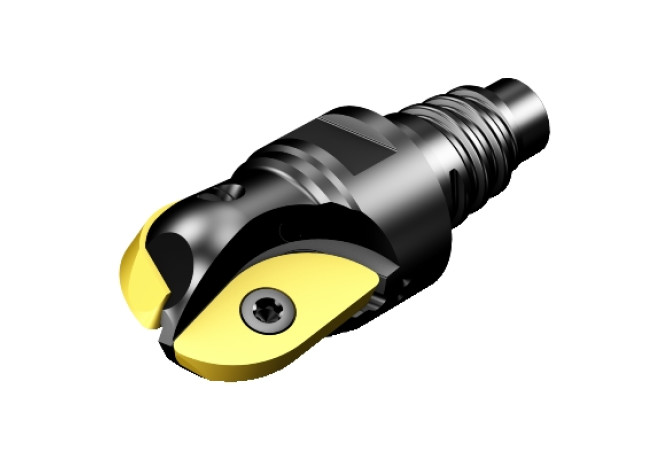

Главная Инструменты 307-11 - Straight ball-nosed end mill RA216-10EH10

RA216-10EH10

Артикул: 6550052

В наличии

0 ₽

В корзину

Описание

Характеристики

A2A (Clearance angle major Pos. A)

9 Degree

A2B (Clearance angle major Pos. B)

9 Degree

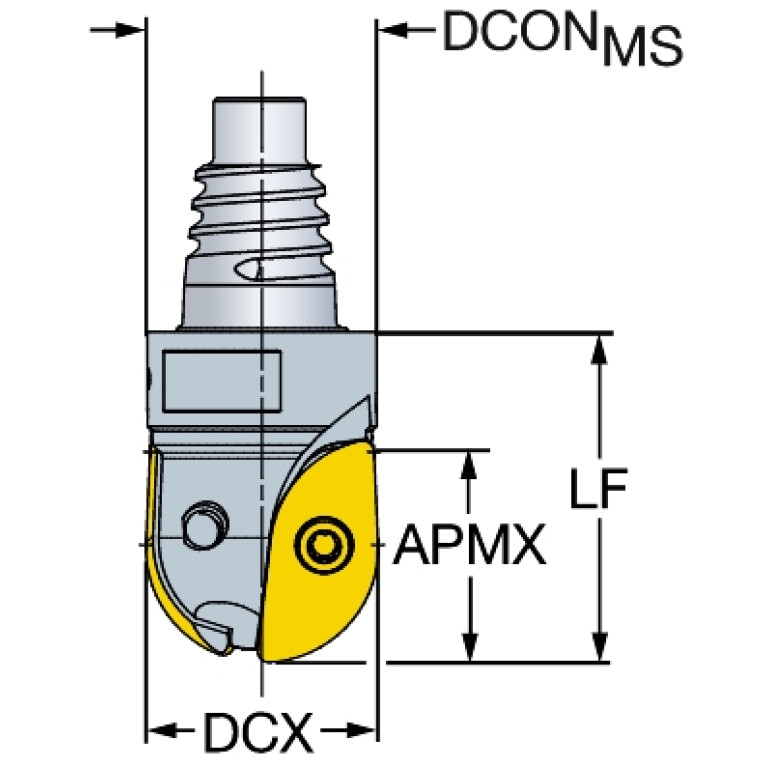

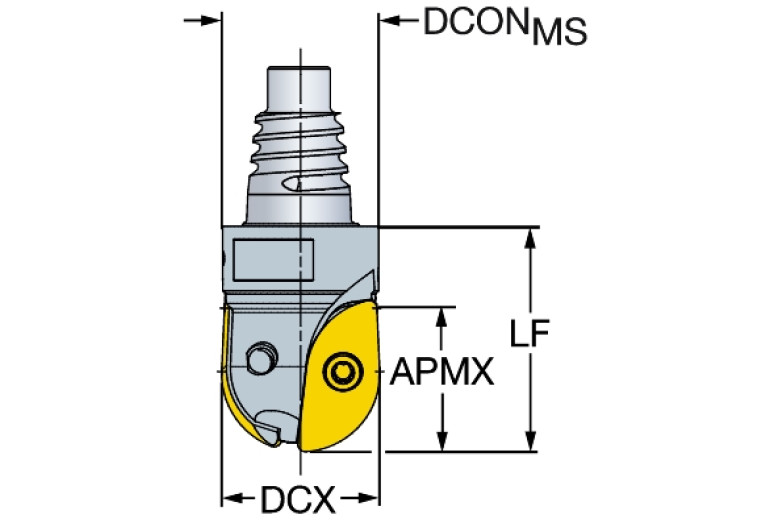

APMX (Depth of cut maximum)

7.874 mm

BI (Block index)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

1.7 mm

C1B (Insert thickness Pos. B)

1.7 mm

CCONMS (Connection count machine side)

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DC (Cutting diameter)

9.525 mm

DCP (Data chip provision)

0 - Without data chip

DCX (Cutting diameter maximum)

9.525 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

SAC01000405

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

SAC04B0100$$$$

KAPR (Tool cutting edge angle)

90 Degree

LOC-02 (BI Block index)

LOC-02 (MIID Master insert identification)

RA216-1002

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-03 ISO

SAC04B0100$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

SAC Screw mounting SANDVIK Coromant

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0100

LOC-03 (DCONMS Diameter)

9.25 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAC01000405

LPR (Protruding length)

20 mm

MIID (Master insert identification)

RA216-1002

MILTTY (Mill tool type ISO)

L - Face and side end mill with ball nose (more then one indexable insert pro cutting edge) 90°

OAL (Overall length)

31.2 mm

PRFRAD (Profile radius)

4.763 mm

RPMX (Rotational speed maximum)

12700 1/min

Working process

FEC - Square shoulder milling,FFO - Die milling,FPR - Profile milling

WT (Weight of item)

0.008 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
