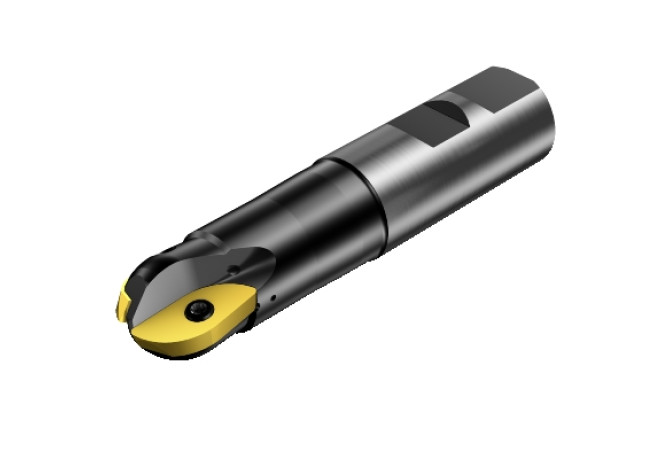

Главная Инструменты 307-11 - Straight ball-nosed end mill R216-25B25-060

R216-25B25-060

Артикул: 5743625

В наличии

0 ₽

В корзину

Описание

Характеристики

A2A (Clearance angle major Pos. A)

9 Degree

A2B (Clearance angle major Pos. B)

9 Degree

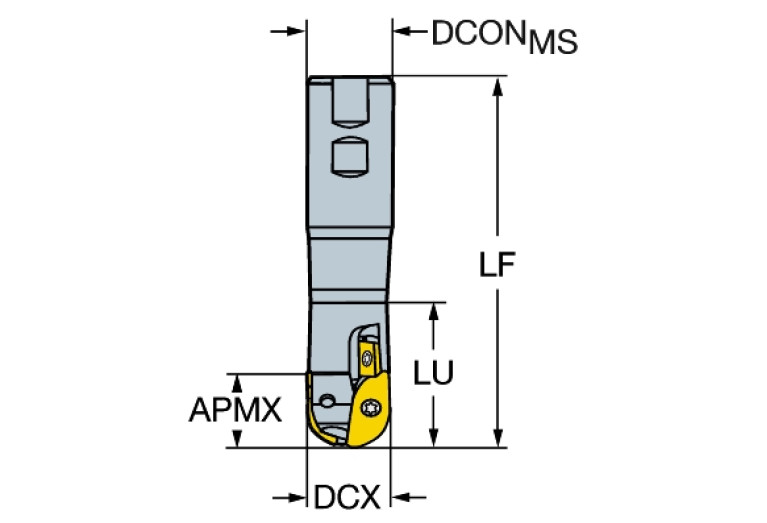

APMX (Depth of cut maximum)

22.3 mm

BD (Body diameter)

23.2 mm

BI (Block index)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

4.762 mm

C1B (Insert thickness Pos. B)

4.762 mm

CCONMS (Connection count machine side)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

DC (Cutting diameter)

25 mm

DCP (Data chip provision)

0 - Without data chip

DCX (Cutting diameter maximum)

25 mm

Delivery state valid from

12/1/2023

DIN

ZYL02501015

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL10G2500h$06

KAPR (Tool cutting edge angle)

90 Degree

LOC-02 (BI Block index)

LOC-02 (MIID Master insert identification)

R216-2504

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-03 ISO

ZYL10G2500h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

1 Metric with coolant

LOC-03 (CZCMS Connection size code)

0250

LOC-03 (DCONMS Diameter)

25 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02501015

LPR (Protruding length)

61 mm

LS (Shank length)

57 mm

LU (Usable length)

60 mm

MIID (Master insert identification)

R216-2504

MILTTY (Mill tool type ISO)

L - Face and side end mill with ball nose (more then one indexable insert pro cutting edge) 90°

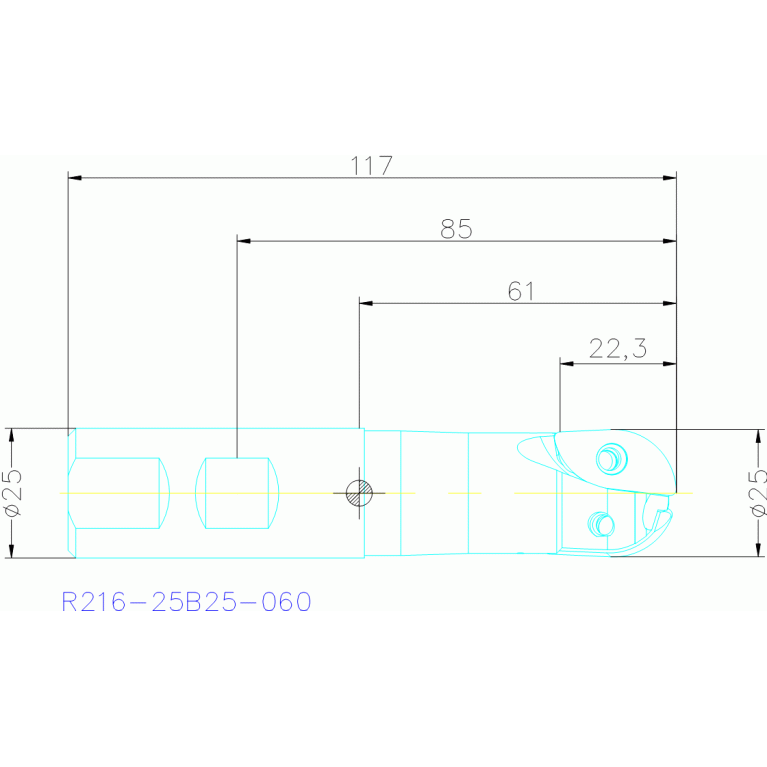

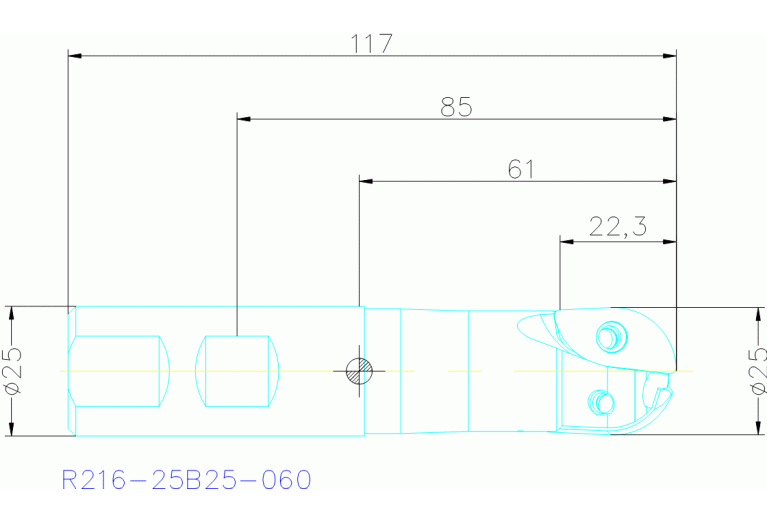

OAL (Overall length)

117 mm

PRFRAD (Profile radius)

12.5 mm

RPMX (Rotational speed maximum)

24000 1/min

TCDCONMS (ISO-tolerance class shank diameter)

Working process

FEC - Square shoulder milling,FFO - Die milling,FPR - Profile milling

WT (Weight of item)

0.35 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
